(116) - EXA 14 INCH AND 16 INCH EAGLE STUBBLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

Запчасти Case IH CASE (116) - EXA 14 INCH AND 16 INCH EAGLE STUBBLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH

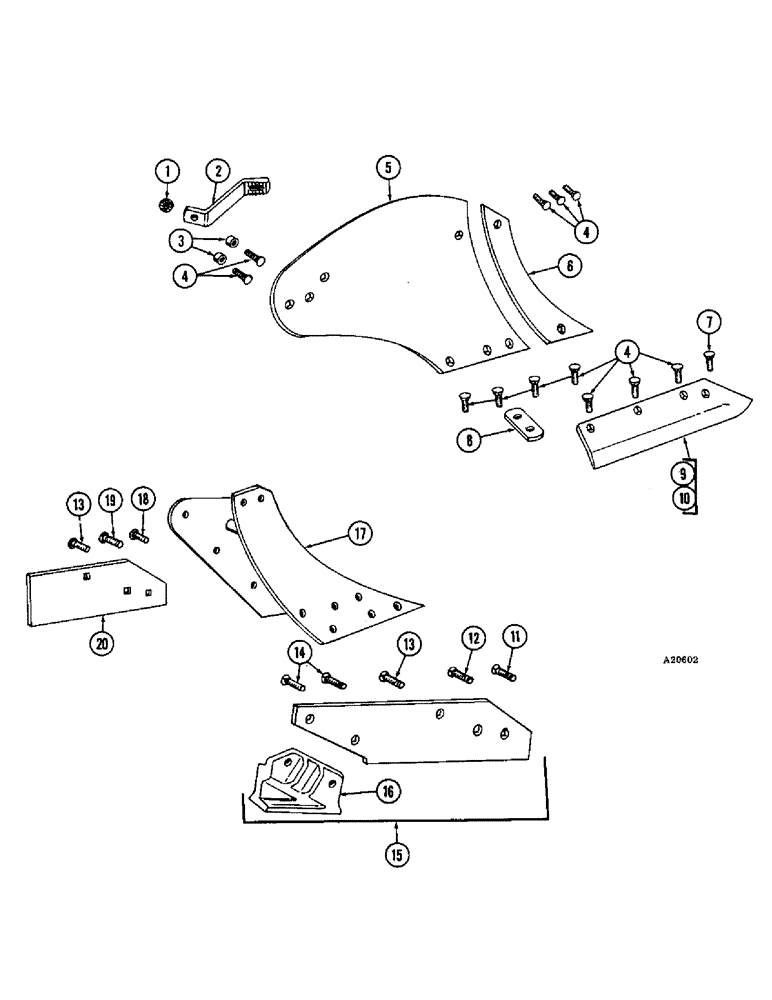

Схема запчастей Case IH CASE - (116) - EXA 14 INCH AND 16 INCH EAGLE STUBBLE BOTTOM, PER BOTTOM 14 INCH AND 16 INCH
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

W10579S

WASHER - serrated

1шт.

2

T18018

BRACE

- moldboard

1шт.

3

H1521S

BUSHING

SPACER - moldboard extension

2шт.

4

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

11шт.

5

T61989

BLADE

MOLDBOARD

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

7шт.

6

T61990

SHIM

SHIN PIECE - moldboard

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

7

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/N.C. hex jam nut

1шт.

8

T19441

STRAP

- moldboard

1шт.

195-2032

WASHER - 1" x 7/16" x #16 ga.

1шт.

9

E14FM

SHARE

- 14", curved steel, forged tip w/bolts (Per btm. 14")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 grade 5 w/rep. hd. & N.C. hex nut (Per btm. 14")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 14")

1шт.

9

EE14FM

SHARE

- 14" curved steel, forged tip, less bolts (Per btm. 14")

1шт.

9

EE14KFM

X

SHARE - 14" curved steel, forged tip (Clipped) less bolts (Per btm. 14")

1шт.

10

E16FM

SHARE

- 16" curved steel, forged tip w/bolts (Per btm. 16")

1шт.

T19469

BOLT

- plow, 3/8" x 1-1/8" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut (Per btm. 16")

3шт.

T62144

BOLT (SPREADER)

BOLT - plow, 1/2" x 1-1/4" P#3 SAE grade 5 w/N.C. hex jam nut (Per btm. 16")

1шт.

10

EE16FM

SHARE

- 16" curved steel, forged tip, less bolts (Per btm. 16")

1шт.

11

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

12

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

13

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

14

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

15

T62015

LANDSIDE

- 4" x 1/2" x 14", w/T1575 heel casting

1шт.

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P#3 grade 5 w/rep. hd. & N.C. hex nut

2шт.

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5 w/rep. hd. & N.C. hex nut

1шт.

T27361

BOLT

- plow, 5/8" x 2-1/2" P#3 SAE grade 5 w/rep. hd. & N.C. hex nut

1шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x #16 ga.

2шт.

16

T1575

BLADE

HEEL CASTING

1шт.
