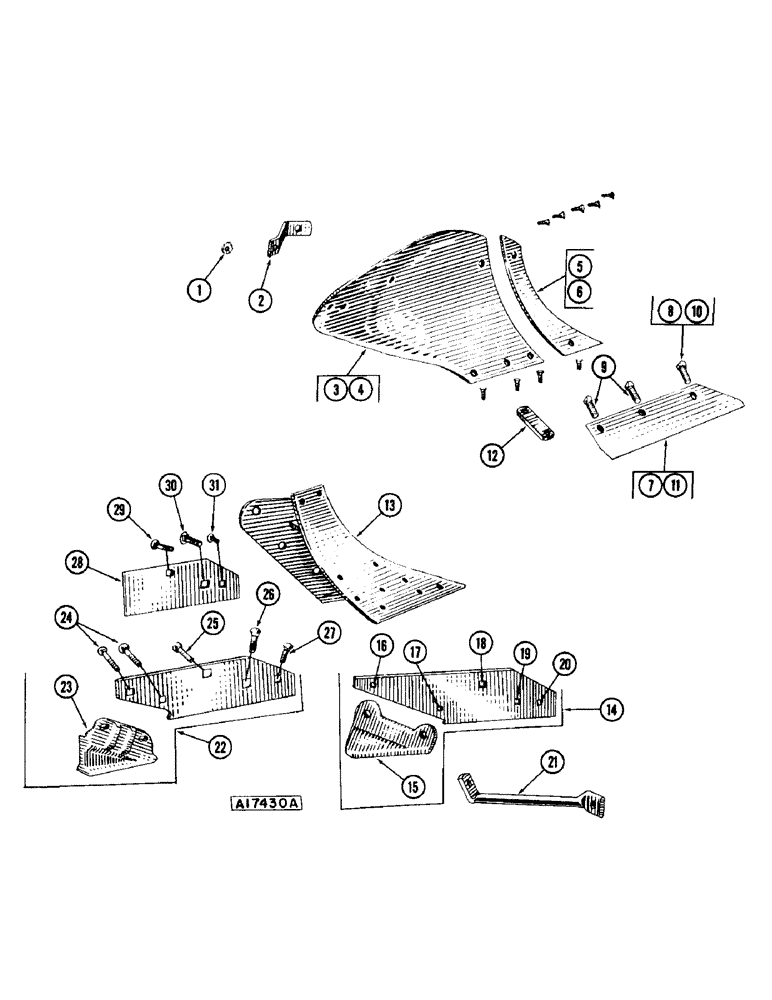

Запчасти Case IH CASE (58) - EXR14, EXR16, PER BOTTOM, 14 INCHES AND 16 INCHES, CONTINUED

14

T62013

LANDSIDE

- 4" x 1/2" x 20" w/WA887 heel, rear bottom only (T85273)

1шт.

15

WA887

HEEL

PLATE

1шт.

16

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

17

T19475

BOLT

- plow, 3/8" x 2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

18

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

19

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

20

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

21

T11757

BRACE - landside to moldboard, rear btm. only

1шт.

22

T62015

LANDSIDE

- 4" x 1/2" x 14" w/T1575 heel (T85276)

1шт.

23

T1575

BLADE

HEEL CASTING

1шт.

24

T19473

PLOW BOLT

BOLT - plow, 3/8" x 1-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

2шт.

195-2030

WASHER,13/32" x 7/8" x .065"

- 7/8" x 13/32" x 16 ga

2шт.

25

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

26

118-412

BOLT - plow, 5/8" x 2-1/2" P3 gr. 5 w/rep. hd.

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

27

T19472

BOLT (SPREADER)

BOLT - plow, 3/8" x 1-3/8" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

28

T26991

LANDSIDE

- 4" x 3/8" x 11" (T85275)

1шт.

29

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.

92-8

LOCK WASHER,1/2"

1шт.

30

118-414

BOLT - plow, 5/8" x 2-3/4" P3 gr. 5 w/rep. hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

31

T19471

PLOW BOLT

BOLT - plow, 3/8" x 1-1/4" P3 grade 5 w/rep. hd. & N.C. hex. nut

1шт.
