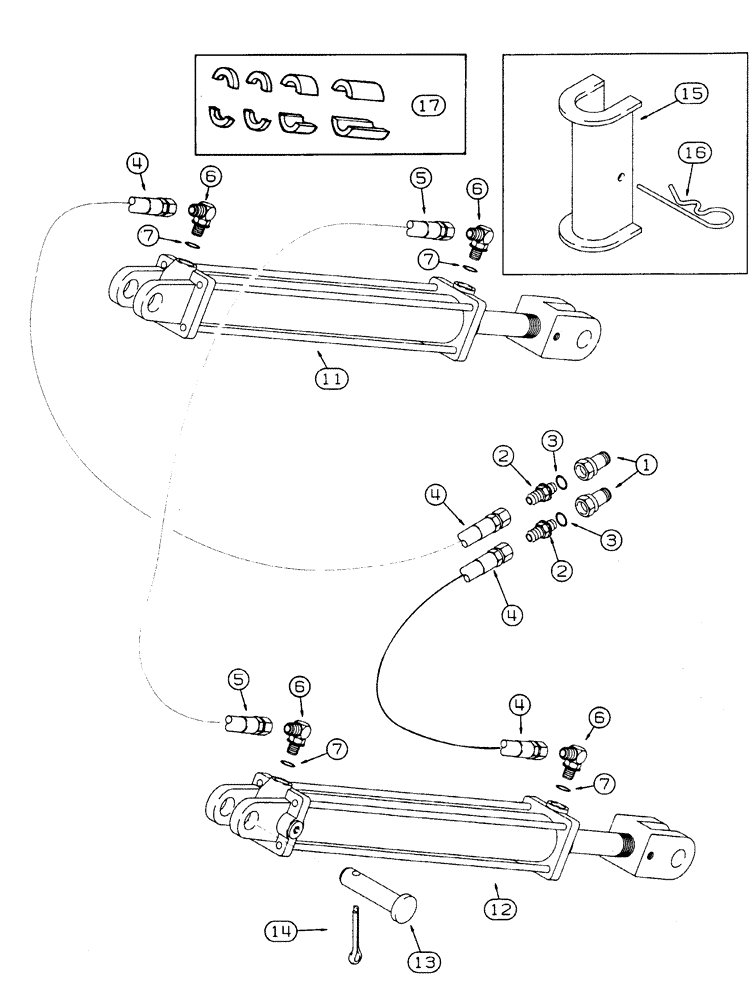

Запчасти Case IH 6800 (8-04) - TRANSPORT LIFT CYLINDERS HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

self sealing, male, 7/8 inch NF

2шт.

2

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

4

134209A1

HOSE

345 inch (8763 mm) long tractor to rod end of right hand lift cylinder and closed end of left hand lift cylinder

2шт.

5

147843C2

HYDRAULIC HOSE,12.70 mm ID x 2795.00 mm, SAE 100R17

Rod End of Left-Hand Lift Cylinder to Closed End of Right-Hand Lift Cylinder

1шт.

6

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj.

4шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

11

142080A1

CYLINDER ASSY.

4-1/2 (114) ID x 16 inch (406 mm) stroke left hand transport lift, parts list page 8-11

1шт.

12

142081A2

CYLINDER ASSY.

4 (102) ID x 16 inch (406 mm) stroke right hand transport lift, parts list page 8-9

1шт.

13

427-16325

CLEVIS PIN,25.4mm OD x 82.55mm L

clevis, 1 x 3-1/4 inch, hardened

4шт.

14

432-1228

COTTER PIN,3/16" x 1 3/4"

4шт.

15

142541A1

TUBE SPACER

LOCK transport lift cylinder

2шт.

16

142542A1

SPLIT PIN/SAFETY PIN

hair transport lock

2шт.

17

194272A1

PACKAGE

KIT cylinder stop 2 inch cylinders

1шт.

17

194271A1

PACKAGE

KIT cylinder stop 1-3/4 inch cylinders

1шт.
