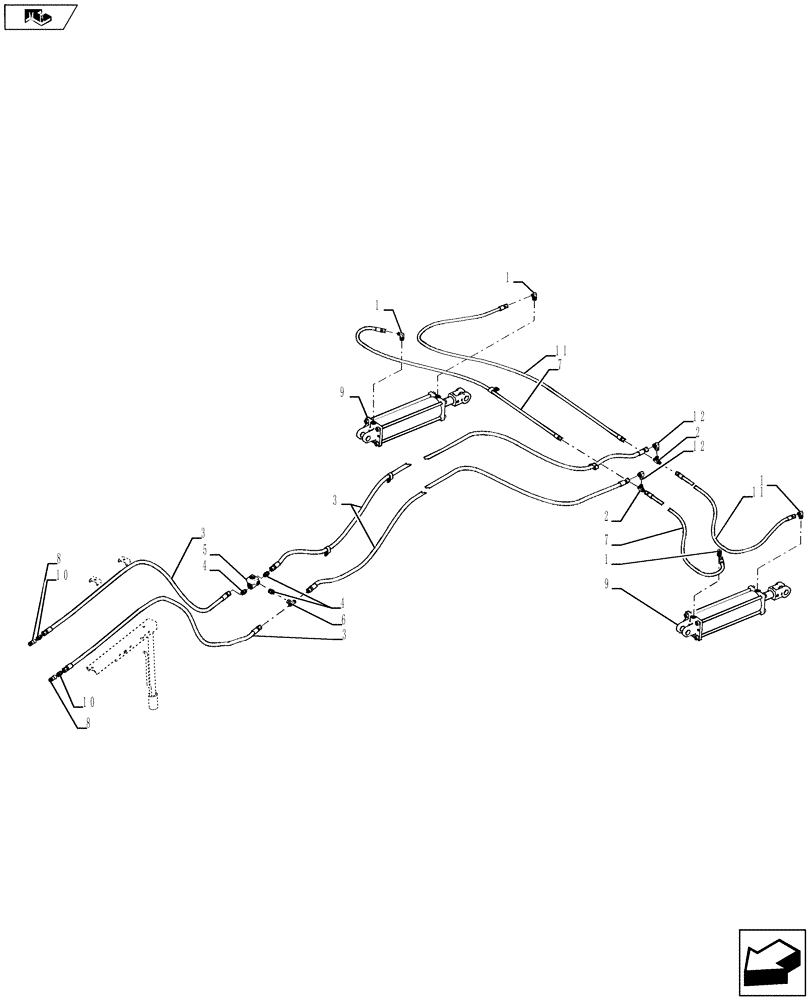

Запчасти Case IH 870 (35.100.03[02]) - 11 AND 13 SHANK MECHANICAL TRANSPORT HYDRAULICS 2011 (35) - HYDRAULIC SYSTEMS

1

76347

ELBOW,90 Degree, 9/16" - 18 JIC x 3/4" - 16 ORB

4шт.

2

86624134

TEE,37 Degree, 9/16"-18 x 3/4"-16, Br

2шт.

3

1015396

HYDRAULIC HOSE,12.7mm ID x 3810mm L, SAE 100R17

1/2 x 150

4шт.

4

128819

HYD CONNECTOR,7/8" - 14 ORB x 3/4" - 16 JIC

3шт.

5

25405022

VALVE PRESSURE RELIE

1шт.

6

86513015

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

7

195869C2

HYDRAULIC HOSE

3/8 x 75

1шт.

8

25705041

COUPLING

2шт.

9

87471401

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 406.4mm Stroke

4.5 x 16

2шт.

9

87471401R

REMAN-HYD CYLINDER

"870 ECOLO TIGER DISK RIPPER, 11 AND 13 SHANK MECHANICAL TRANSPORT HYDRAULICS 2011, 4.5 x 16"

2шт.

9

87471401C

CORE-HYD CYLINDER

Return Number

2шт.

10

81827427

HYD CONNECTOR,3/4" - 16 JIC x 3/4" - 16 ORB

3/4 SAEM x 3/4 JICM Adapter

8шт.

11

196584C1

HOSE

3/8 x 95

1шт.

12

248974

90 ELBOW,3/4" - 16 JIC x 3/4" - 16 Fem Sw

2шт.

13

22510700

HOSE CLAMP,15.86mm

5/8, Not Shown

1шт.

14

22510710

HOSE CLAMP

3/4, Not Shown

1шт.

15

88682

CARRIAGE BOLT,Short Nk, 3/8"-16 x 1", Gr 5

Not Shown

1шт.

16

86992213

NUT

Not Shown

1шт.
