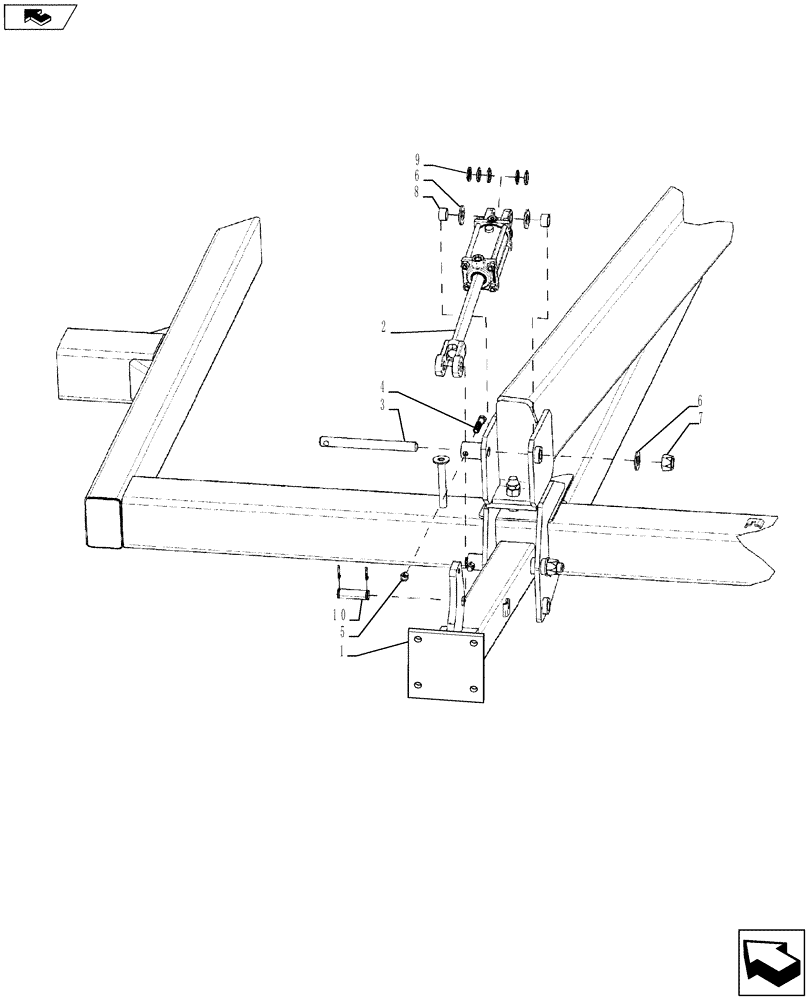

Запчасти Case IH 870 (39.100.17[02]) - REAR DISK LEVELER LIFT ARM 2011 (39) - FRAMES AND BALLASTING

1

84411046

FRAME

, Start Year: 01-MAR-11

1шт.

2

87730279

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3 x 4

1шт.

2

87730280

HYDRAULIC CYLINDER,Double Acting, 31.75mm Rod, 101.6mm Stroke

3-1/4 x 4

1шт.

3

84216263

PIN,25.4mm OD x 270mm L

1шт.

4

86520614

BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 8

1шт.

5

88871

NUT,1/2"-13, GC

1шт.

6

87367

WASHER,1.06" ID x 2" OD x 0.13" Thk

3шт.

7

9626600

NUT,1"-8, GC

1шт.

8

09102904

SPACER

2шт.

9

86624170

WASHER,1.03" ID x 1.5" OD x 0.12" Thk

5шт.

10

25890100

KIT

1шт.
