(35.100.09) - 3-1/2 IN X 42 IN WING FOLD CYLINDER 19 - 25 FT TANDEM DISK

Запчасти Case IH 340 (35.100.09) - 3-1/2 IN X 42 IN WING FOLD CYLINDER 19 - 25 FT TANDEM DISK (35) - HYDRAULIC SYSTEMS

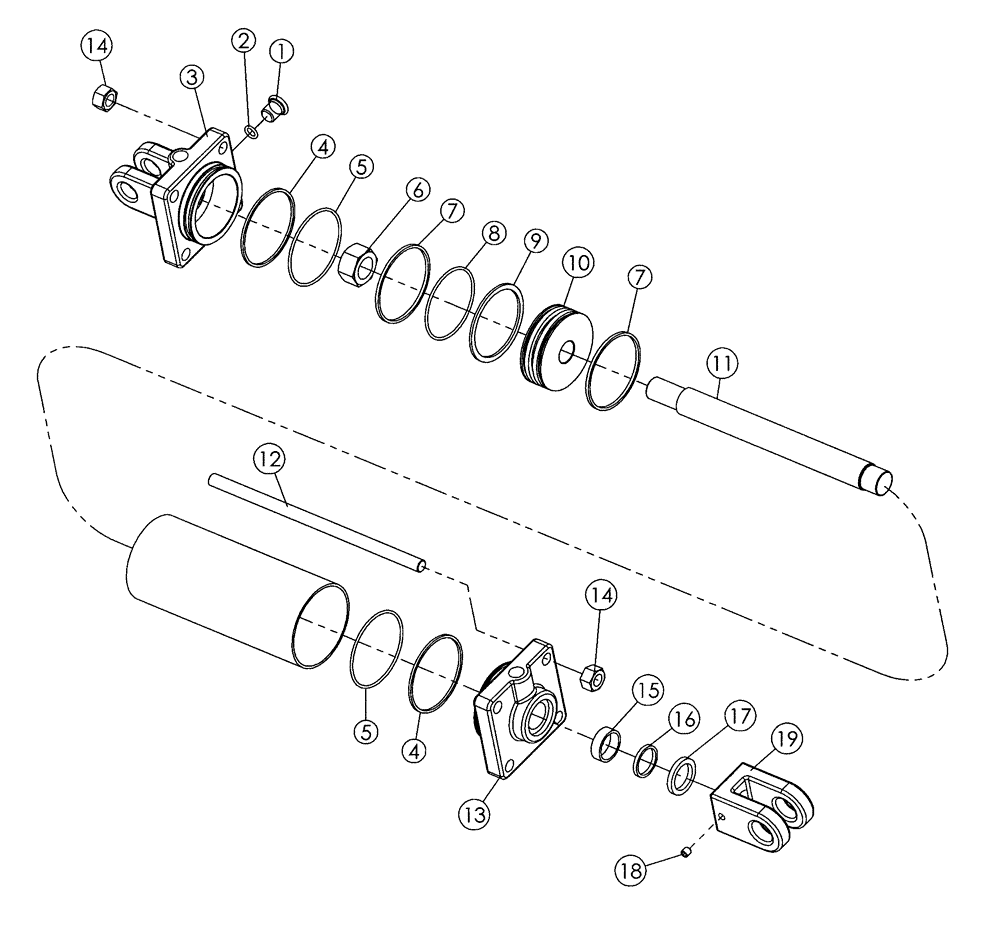

Схема запчастей Case IH 340 - (35.100.09) - 3-1/2 IN X 42 IN WING FOLD CYLINDER 19 - 25 FT TANDEM DISK (35) - HYDRAULIC SYSTEMS
12
5
13
6
11
16
3
18
7
7
1
17
10
4
8
9
19
5
15
14
2
4
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87388869

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

3-1/2 In x 42 In, Inc 1 - 19

1шт.

Chrome Rod

1шт.

87388869R

REMAN-HYD CYLINDER

340, RMX340 (6/03-)

1шт.

87388869C

CORE-HYD CYLINDER

Return Number

1шт.

87388869

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

3-1/2 x 42, Inc. 1 - 19

1шт.

Black Rod (Nitro Steel)

1шт.

87388869R

REMAN-HYD CYLINDER

340, RMX340 (6/03-)

1шт.

87388869C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409446

HEAD

Clevis Base End

1шт.

6

232-46316

NUT,1"-14, GC

1шт.

10

87409469

PISTON

Cylinder

1шт.

11

87393654

PISTON ROD

Piston

1шт.

Chrome Rod

1шт.

11

87393650

PISTON ROD

1шт.

Black Rod (Nitro Steel)

1шт.

12

87410780

TIE-ROD

Tie

4шт.

13

87409403

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409390

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87409039

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
