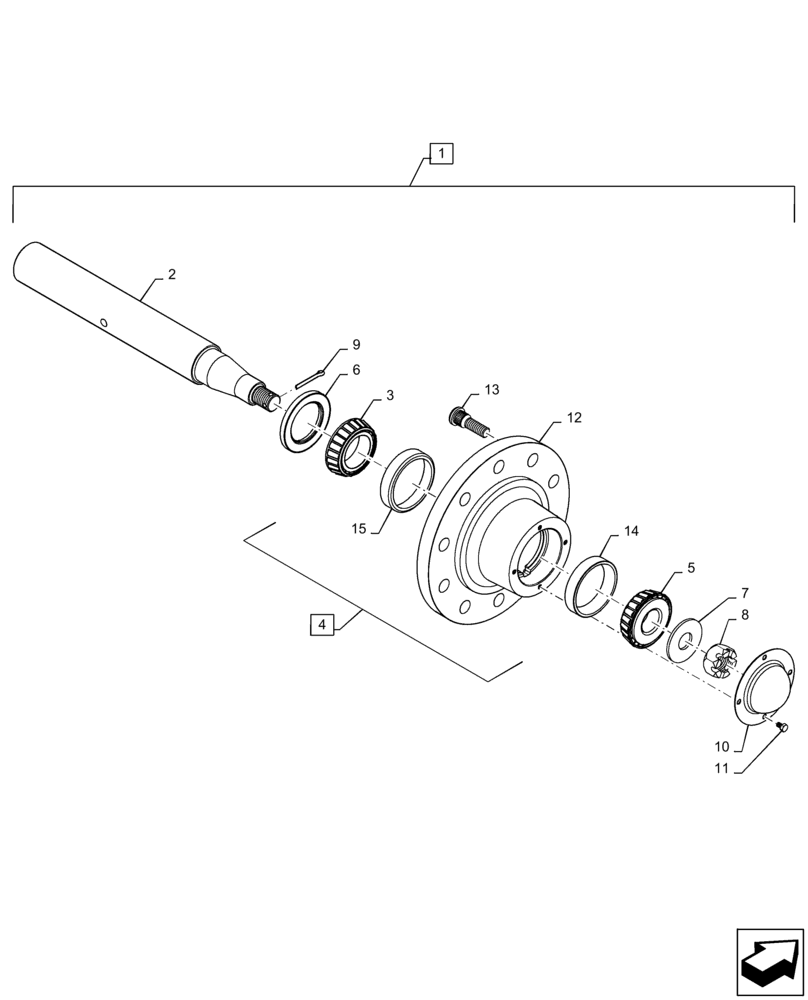

Запчасти Case IH 340 (44.100.09) - HUB Q871 FOR 47 (44) - WHEELS

1

47443976

HUB

Q871 Incl 2 - 15

1шт.

2

84550993

SPINDLE

Straight

1шт.

3

21872505

ROLLER BEARING,63.5 mm ID

1шт.

4

28787101

HUB ASSY.

With Cups Incl 12 - 15

1шт.

5

21871750

ROLLER BEARING,1.75" ID

1шт.

6

21933000

SEAL

3.00"

1шт.

7

17952632

WASHER

1.281 I.D

1шт.

8

14052012

SLOTTED NUT

1-1/4-12

1шт.

9

88182

COTTER PIN,1/4" OD x 2" L

1шт.

10

28487101

HUB CAP

Cover Q871 Hub

1шт.

11

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

4шт.

12

84252595

HUB

Q871

1шт.

13

16412418

STUD

Wheel

10шт.

14

714428

BEARING CUP

Roller

1шт.

15

371878A1

BEARING CUP,112.71mm OD x 23.81mm W

1шт.
