(35.100.05) - 3-3/4 IN X 8 IN TRANSPORT CYLINDER 25 FOOT TANDEM DISK

Запчасти Case IH 370 TRUE-TANDEM (35.100.05) - 3-3/4 IN X 8 IN TRANSPORT CYLINDER 25 FOOT TANDEM DISK (35) - HYDRAULIC SYSTEMS

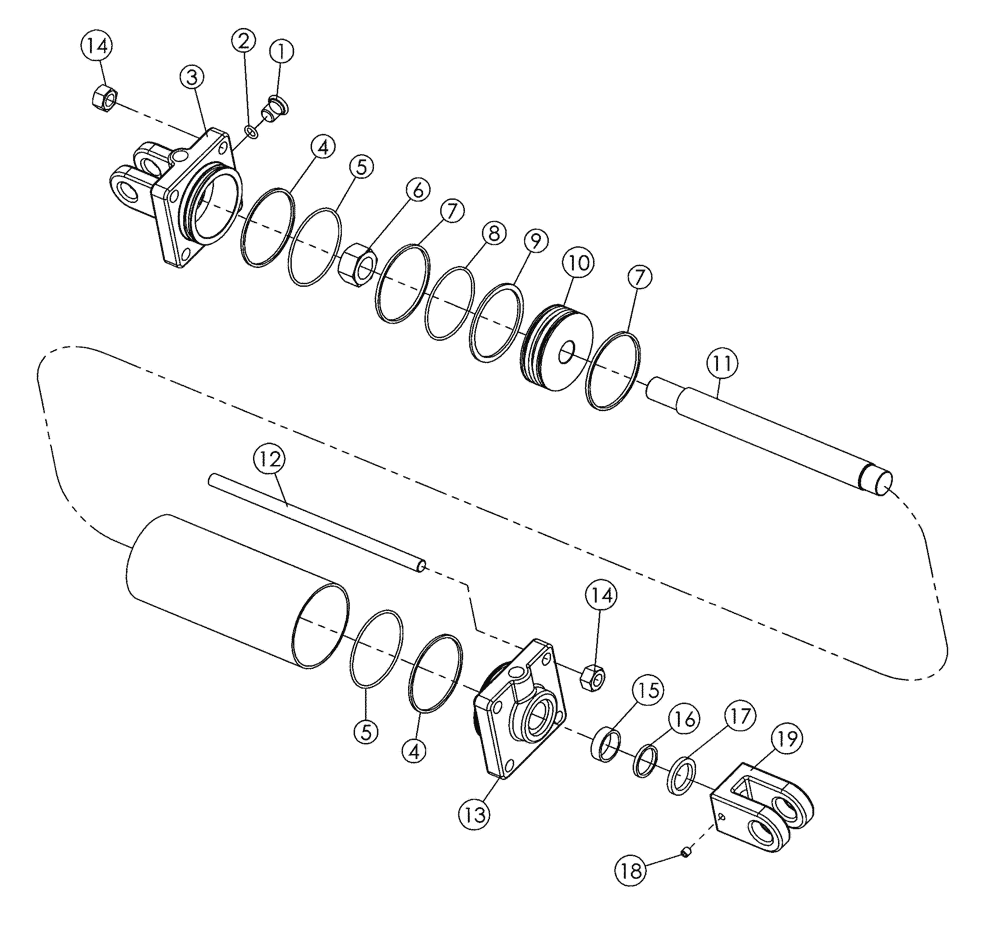

Схема запчастей Case IH 370 TRUE-TANDEM - (35.100.05) - 3-3/4 IN X 8 IN TRANSPORT CYLINDER 25 FOOT TANDEM DISK (35) - HYDRAULIC SYSTEMS
12
16
6
8
9
2
13
4
5
7
1
18
11
17
7
14
15
3
5
14
10
19
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

3-3/4 In x 8 In, Rephasing, Inc 1 - 19

1шт.

Black Rod (Nitro-Steel)

1шт.

84262946R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 TANDEM DISK (6/03-), Both 3-3/4 in x 8 in, Rephasing

1шт.

84262946C

CORE-HYD CYLINDER

Return Number

1шт.

84262946

HYDRAULIC CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

3-3/4 x 8, Rephasing, Inc. 1 - 19

1шт.

Chrome Rod

1шт.

84262946R

REMAN-HYD CYLINDER

370 TRUE-TANDEM, RMX370 (6/03-)

1шт.

84262946C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409431

HEAD

Clevis Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87409471

PISTON

Cylinder

1шт.

11

87409453

PISTON ROD

1шт.

Black Rod (Nitro-Steel)

1шт.

11

87525935

PISTON ROD

1шт.

Chrome Rod

1шт.

12

87409486

BOLT

Tie 11.06" Long

4шт.

12

87409491

THREADED TIE-ROD

13.06" Long

4шт.

13

87409396

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409387

CLEVIS,1 -1/4" - 12

Rod End

1шт.

87409040

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
