(35.100.09) - 4-1/2 X 8 TRANSPORT CYLINDER 37 FOOT UNIT

Запчасти Case IH 370 TRUE-TANDEM (35.100.09) - 4-1/2 X 8 TRANSPORT CYLINDER 37 FOOT UNIT (35) - HYDRAULIC SYSTEMS

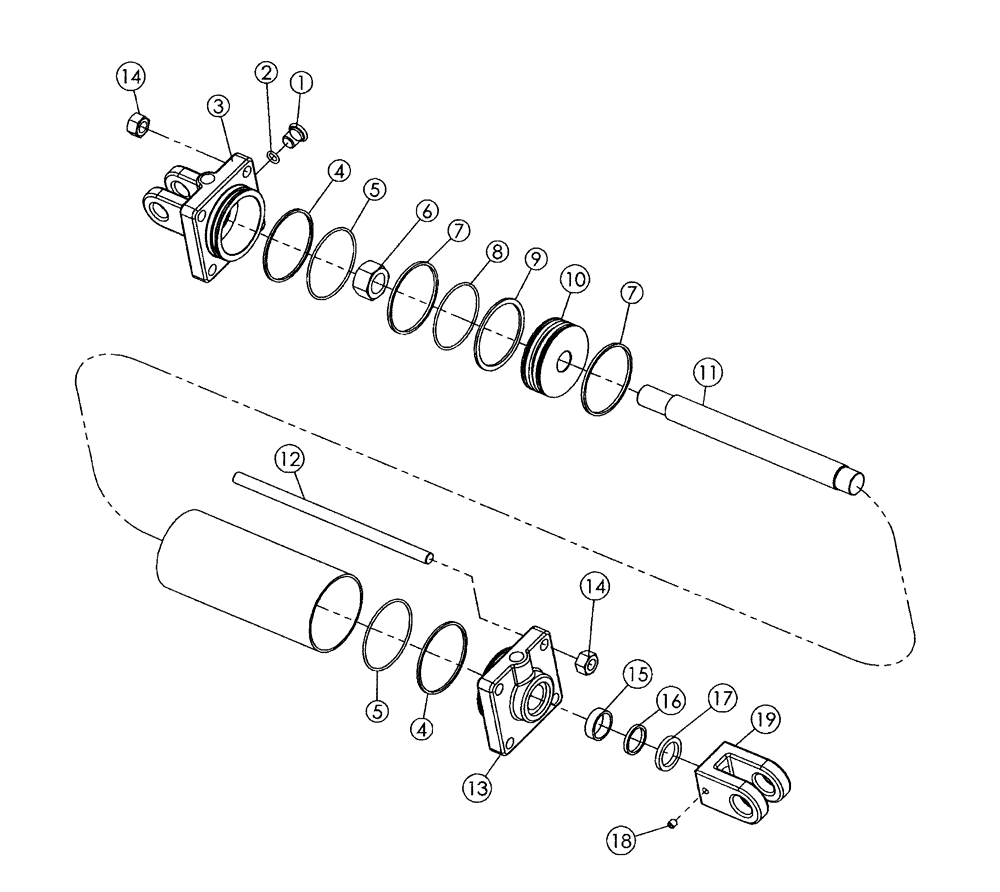

Схема запчастей Case IH 370 TRUE-TANDEM - (35.100.09) - 4-1/2 X 8 TRANSPORT CYLINDER 37 FOOT UNIT (35) - HYDRAULIC SYSTEMS
13
5
6
7
14
18
11
1
19
14
5
3
12
15
8
10
9
17
16
7
5
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84262941

CYLINDER,Double Acting, 38.1mm Rod, 203.2mm Stroke

4-1/2 x 8

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

1шт.

2

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87410800

CLEVIS

1шт.

6

87023139

NUT

1шт.

10

87409474

PISTON

1шт.

11

87393647

PISTON ROD

1шт.

12

87409491

THREADED TIE-ROD

1шт.

13

87409400

HEAD

1шт.

14

408

NUT,5/8" - 18, Gr 5

4шт.

18

84212867

SET SCREW

1шт.

19

87409389

CLEVIS,1 -1/2" - 12

1шт.

87409042

SEAL KIT

Includes 4, 5, 7, 8, 9

1шт.
