(8-07) - HYDRAULIC LEVELING HITCH CYLINDER

Запчасти Case IH 3950 (8-07) - HYDRAULIC LEVELING HITCH CYLINDER (08) - HYDRAULICS

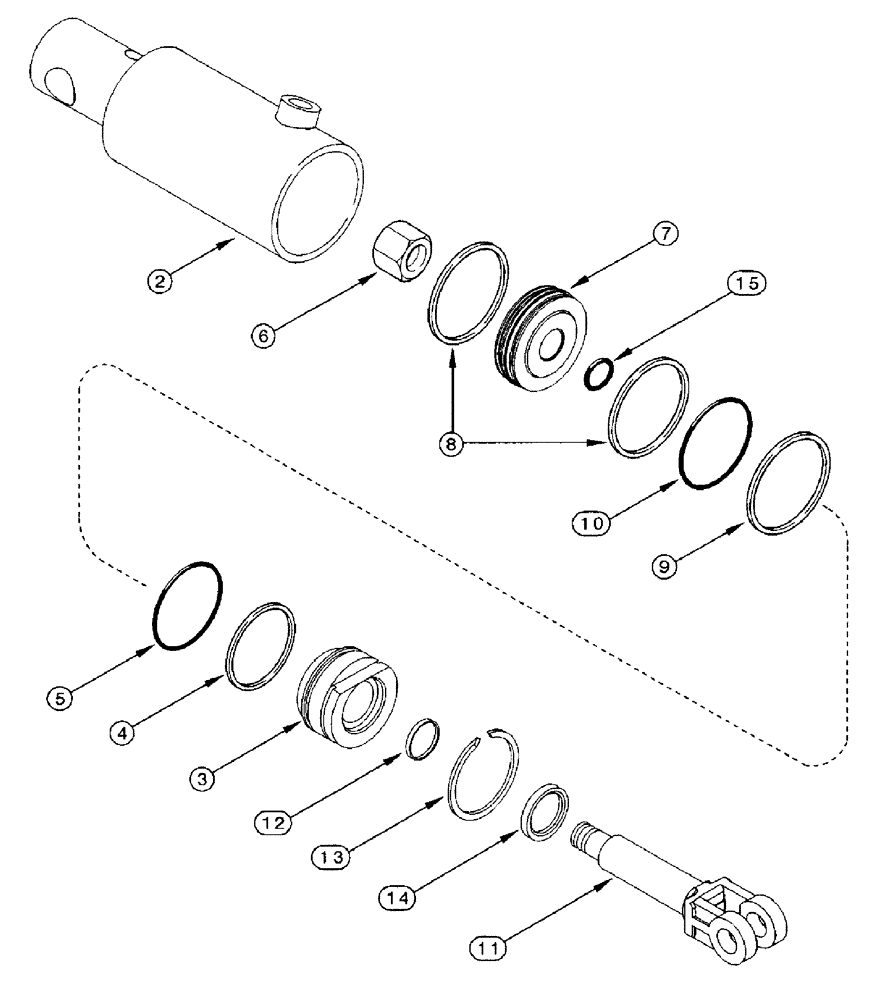

Схема запчастей Case IH 3950 - (8-07) - HYDRAULIC LEVELING HITCH CYLINDER (08) - HYDRAULICS
13
8
3
9
5
6
12
2
4
15
14
10
7
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

248945A1

CYLINDER

ASSEMBLY - leveling hitch, (3-1/2) ID x (3-1/2 inch) stroke, Inc.1 - 15

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - cylinder

1шт.

3

275675A1

HEAD

- cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RING - backup, cylinder head O-ring

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING - cylinder head

1шт.

6

143208A1

LOCK NUT

- hex, self locking

1шт.

7

255049A1

PISTON

- cylinder

1шт.

8

NSS

NOT SOLD SEPARAT

RING - wear, piston

2шт.

9

NSS

NOT SOLD SEPARAT

SEAL - piston

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - piston seal

1шт.

11

251875A1

SHAFT

ROD - cylinder

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL - piston rod

1шт.

13

NSS

NOT SOLD SEPARAT

RING - retaining, piston seal

1шт.

14

NSS

NOT SOLD SEPARAT

WIPER - piston rod

1шт.

15

NSS

NOT SOLD SEPARAT

O-RING -

1шт.

16

87410736

SEAL KIT

- cylinder seal repair, Inc. 4, 5, 8 - 10, 12 - 15

1шт.
