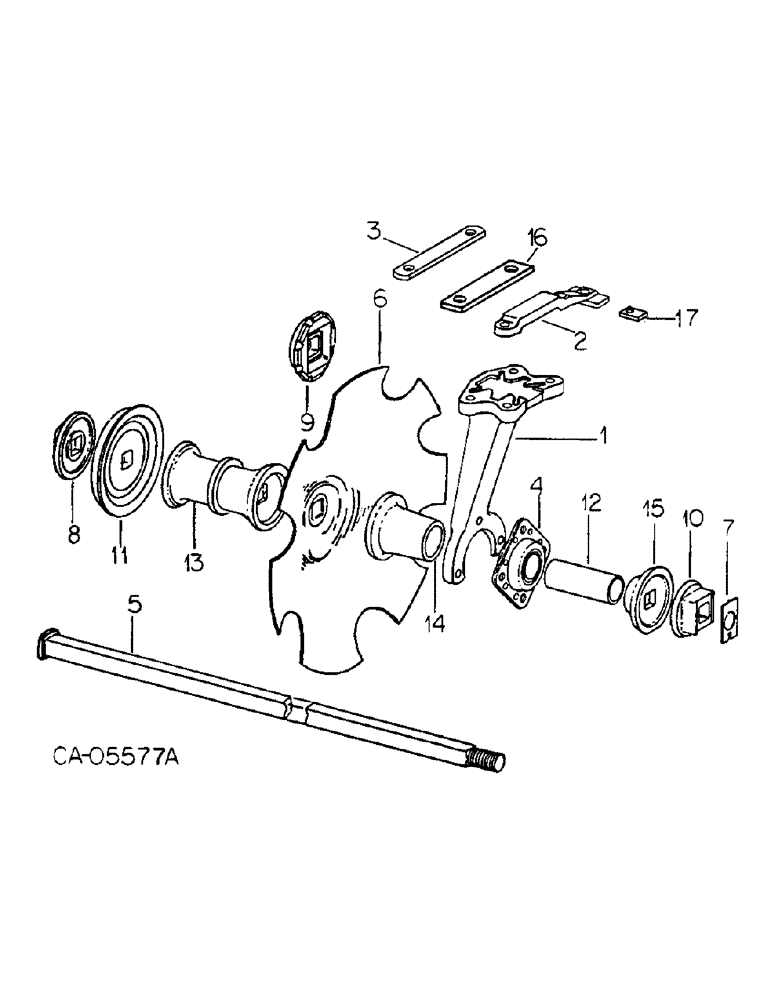

Запчасти Case IH 490 (AG-14) - BEARINGS, DISKS AND GANGS, MACHINES W/SERIAL NO. 16678 AND ABOVE

1

129532C2

HOLDER

STANDARD, bearing, cast type, 20 for units L & M, 24 for units C, D, N & P, 26 for units E & F

1шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

1/2 x 1-1/2 type 1, 3 per standard

1шт.

120384

WASHER,1/2"

LOCK, , 3 per standard 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, , 3 per standard 1/2"-13, G5

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5

2шт.

271778

SCREW,Hex, 3/4"-10 x 3 3/4", G5

BOLT, 3/4 x 3-3/4 type 5

2шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5

4шт.

467750R1

WASHER

.781 x 1.500 x .105

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

8шт.

280954

NUT,3/4"-10, G5

4шт.

2

129616C1

BRACKET

scraper angle, 16 for units L & M, 20 for units C & D, 22 for units N & P, 24 for units E & F

1шт.

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3/4 x 5 type 5, 2 used per bracket , Course threads

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 used per bracket

1шт.

280954

NUT,3/4"-10, G5

2 used per bracket 3/4"-10, G5

1шт.

3

129530C2

BAR

tapped, units D, F, M & P

1шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT, 3/4 x 4-1/2 type 5, 2 used per bar

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 2 used per bar

1шт.

4

ST491A

BALL BEARING,45mm ID

BEARING, ball w/lub fitting regreasable, 1 per standard

1шт.

4

ST491A-IMPGV

BEARING

Value, 1-3/4 In. Round Bore Bearing Assy

1шт.

5

652939R2

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 67.4"

arbor, 67.4 in., 2 for units D, F and M, 4 for unit P

1шт.

5

472586R2

BOLT,1 1/8"-7 x 71.9"

arbor, 71.9 in., 4 for units C, E and L, 8 for unit N

1шт.

5

468582R2

BOLT (SPREADER),1 1/8"-7 x 76.7"

BOLT, arbor, 76.4 in., 2 for unitd D, F and M, 4 for unit P

1шт.

5

481844R1

BOLT,1 1/8"-7 x 85.4"

front wing arbor, 85.4 in., 2 for unit D

1шт.

5

487168R1

BOLT,1 1/8"-7 x 94.6"

wing arbor, 94.4 in., 4 for unit C, 2 for unit D

1шт.

5

546831R1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 112.70mm

wing arbor, 112.4 in., 2 for unit F

1шт.

5

56999C1

SPECIAL BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 117.60mm

BOLT, wing arbor, 116.9 in., 4 for unit E

1шт.

5

57000C1

BOLT,Rnd Cor Sq Hd, 1 1/8" - 7 x 121.80mm

wing arbor, 121.4 in., 2 for unit F

1шт.

5

471014R1

BOLT,1 1/8"-7 x 48.8"

arbor, 2 for units M, 4 for unit L

1шт.

5

468607R1

BOLT,1 1/8"-7 x 39.8"

arbor, 2 for unit M

1шт.

6

472217R1

DISK HARROW

DISK, 20 in x 8 ga solid, standard equipment

1шт.

6

482986R2

DISK HARROW

DISK, 18 in. x 8 ga solid

1шт.

6

482973R1

DISC

DISK, 20 in. x 7 ga solid

1шт.

6

482975R1

PLOW DISC

DISK, 22 in. x 6 ga solid

1шт.

6

472218R1

DISC

DISK, 22 in. x 7 ga solid

1шт.

6

482987R2

DISK HARROW

DISK, 18 in. x 8 ga notched

1шт.

6

482974R1

DISC

DISK, 20 in. x 7 ga notched

1шт.

6

482976R1

DISK HARROW

DISK, 22 in. x 6 ga notched

1шт.

6

P24425

DISC

DISK, 22 in. x 7 ga notched

1шт.

59749C1

SQ HOLE WASHER

square, take-up washer for 8 ga disks

1шт.

7

489292R1

SUPPORT ASSY.

STRIP, arbor bolt

8шт.

492-11112

LOCK WASHER,1 1/8"

1-1/8 znd reg lock

8шт.

220094

NUT,1 1/8"-7, G5

1-1/8-7 znd hex.

8шт.

8

P4165A

WASHER

head

4шт.

9

100696C1

WASHER

furrow filler

2шт.

Reference no. 9. Dlr called and said would not work. Someone had used 466950r2 although it is not shown to be used.

1шт.

10

PA4167

WASHER

nut, units L & M

4шт.

10

481611R1

WASHER

nut, 4 for units L & M, 8 for units C, D, E, F, N & P

1шт.

11

468584R2

SQ HOLE WASHER

bumper

2шт.

12

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

support, 7-1/2 in., for use w/spools w/rd ctr holes, 1 per standard on units C, E, L & N

1шт.

12

112410C1

TUBE

BUSHING, support, 9 in., for use w/spool w/rd holes, 1 per standard on units D, F, M & P

1шт.

13

481416R1

SPOOL

7-1/2 in. spacing, 40 used unit L, 48 used on unit N, 60 used on unit C, 70 used on unit E

1шт.

13

481417R1

SPOOL

9 in. spacing, 28 used on unit M, 36 used on unit P, 44 used unit D, 54 used on unit F

1шт.

14

101191C1

SPOOL

W/RD CENTER HOLE, brg 4 in., 1 per standard

1шт.

15

101189C1

SPOOL

W/RD CENTER HOLE, brg 1-1/2 in., 1 per standard on units C, E, L & N

1шт.

15

101190C1

SPOOL

SPOOL W/RD CENTER HOLE, brg 3 in., 1 per standard on units D, F M & P

1шт.

16

112448C2

BAR

4 for units F & P, 6 for units D, E, M & N, 8 for units C & L

1шт.

19873R1

HARDWARE,Hex, 3/4"-10 x 5 1/2", G5

BOLT, 3/4 x 5-1/2 type 5, 2 for unit M, 4 for units D, E & N, 8 for units C & L

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per screw

1шт.

280954

NUT,3/4"-10, G5

1 per screw 3/4"-10, G5

1шт.

17

121213C1

BAR

support, front inner location of scraper angle

2шт.

72819C91

PACKAGE, bearing standard service, for changing machines in field w/steel standards to cast standards, consists of

1шт.

129532C2

HOLDER

BEARING, std

2шт.

129530C2

BAR

2шт.

271781

BOLT (SPREADER),Hex, 3/4" - 10 x 4 1/2", Gr 5

BOLT

4шт.

18496R1

BOLT,Hex, 1/2"-13 x 1 1/2", G2

6шт.

120384

WASHER,1/2"

LOCK, 1/2"

6шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

6шт.

112448

BAR

2шт.
