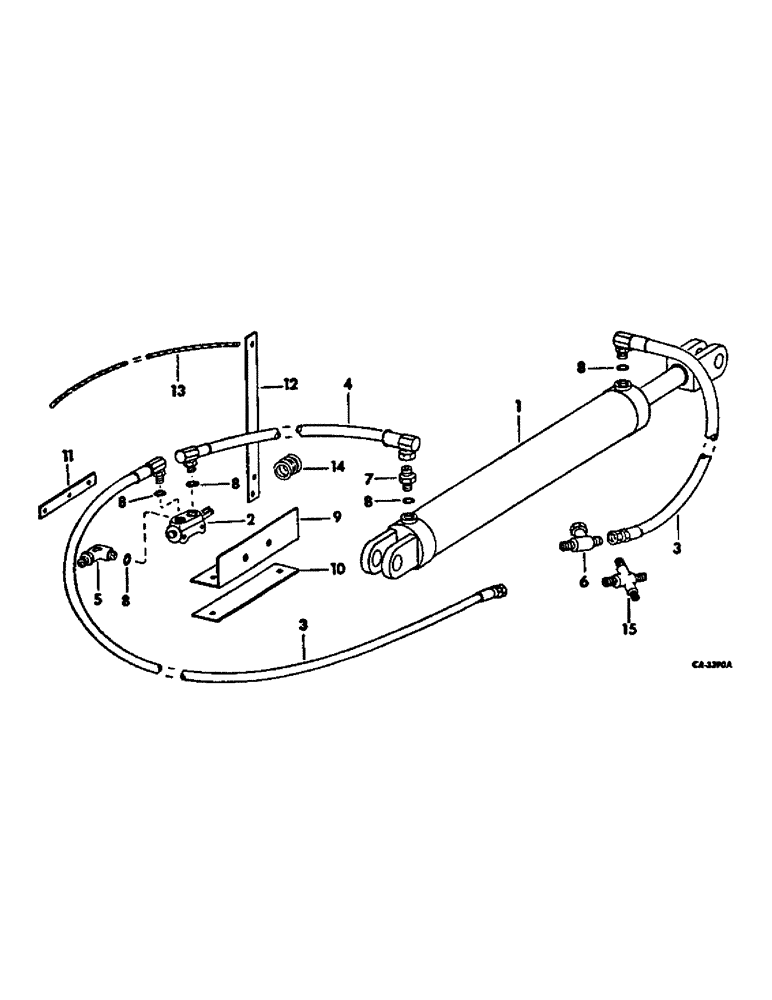

Запчасти Case IH 490 (AG-20) - TRANSPORT CYLINDER AND CONNECTIONS, TRACTORS WITH ONE VALVE

1

71958C91

CYLINDER

ASSY, 3-1/2 x 16 hydraulic, will work for 61107C91, for components,, see list of parts under details of hydraulic cylinder 3-1/2 x 16

2шт.

1

145434C91

CYLINDER

ASSY, 3-1/2 x 16 hydraulic, refer to cyl, 1 for components

2шт.

1

1272149C92R

REMAN-HYD CYLINDER

490 INTERNATIONAL HARVESTER TANDEM DISK HARROW, ASSEMBLY, transport lift, Reman for New PN 145434C91

2шт.

1

1272149C92C

CORE-HYD CYLINDER

Return Number

2шт.

2

478887R91

VALVE

VLAVE ASSY, gressen diverter, for components see list of parts under details of diverter valve

1шт.

3

653318R91

HOSE

ASSY, 34 in.

2шт.

4

470779R92

HOSE

ASSY, 14 in.

1шт.

5

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

7/8-14 hyd 37 deg flared tube adj str-thd 90 deg

1шт.

6

9410308

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Br

7/8-14 hyd 37 deg flared tube swivel, 7/16 fittings only

1шт.

7

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

UNION, 7/8-14 hyd 37 deg flared tube short swivel

1шт.

8

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

5шт.

9

57066C1

ANGLE, valve mtg

1шт.

10

57067C1

BAR, clamp

1шт.

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

SCREW, 3/8-16 x 5 znd hex-hd cap

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

11

57068C1

BAR

lever pivot

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

SCREW, 5/16-18 x 2-1/4 znd hex-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120376

NUT,5/16"-18, G5

2шт.

12

57069C1

BAR

LEVER, valve

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

SCREW, 3/8-16 x 1-1/4 znd hex-hd cap

1шт.

446363

WASHER,5/16"

13/32 x 7/8 x 16 ga

1шт.

231-1446

NUT,3/8" - 16, Gr 5

NUT, LOCK, , Esna 3/8"-16, GB

1шт.

21886R1

HEADED PIN,1/4" x 1"

PIN, 1/4 x 1 znd std-hd

1шт.

177923

COTTER PIN

1/8" x 3/4"

1шт.

13

57070C1

ROPE, 1/4 x 12 ft

1шт.

14

369462R1

SPRING

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 12 ga

1шт.

15

532321R1

CROSS

9/16 fittings only

1шт.
