(35.100.12) - 5 IN X 8 IN PULL FRAME LEVELING CYLINDER (OPTIONAL)

Запчасти Case IH RMX370 (35.100.12) - 5 IN X 8 IN PULL FRAME LEVELING CYLINDER (OPTIONAL) (35) - HYDRAULIC SYSTEMS

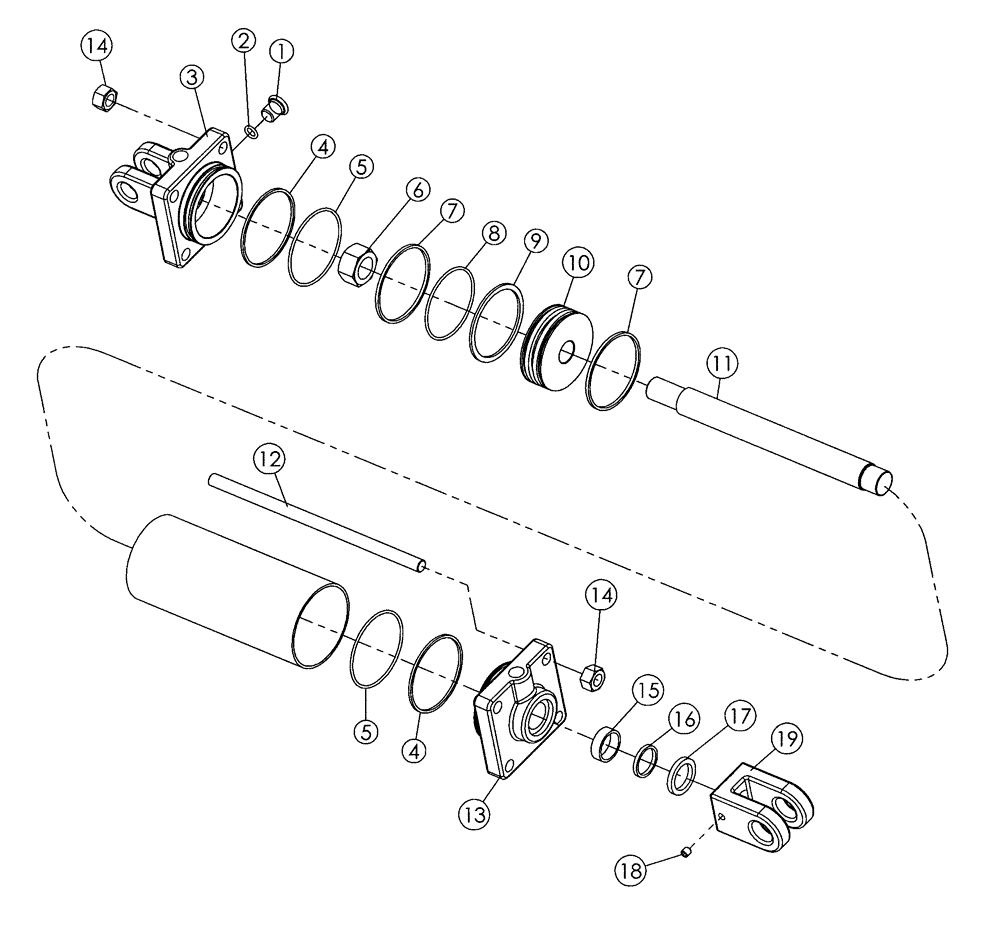

Схема запчастей Case IH RMX370 - (35.100.12) - 5 IN X 8 IN PULL FRAME LEVELING CYLINDER (OPTIONAL) (35) - HYDRAULIC SYSTEMS
3
14
9
13
18
10
4
7
6
4
17
19
5
11
15
2
8
7
5
14
16
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 In x 8 In, Inc 1 - 19

1шт.

Chrome Rod

1шт.

87388864R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 TANDEM DISK (6/03-), Both 5 In x 8 In, Chrome Rod

1шт.

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

87388864

HYDRAULIC CYLINDER,Double Acting, 44.45mm Rod, 69.85mm Stroke

5 x 8, Inc 1 - 19

1шт.

Black Rod (Nitro-Steel)

1шт.

87388864R

REMAN-HYD CYLINDER

370 TRUE-TANDEM 19'-37' DISK HARROW, RMX370 (6/03-)

1шт.

87388864C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409428

HEAD

Base End

1шт.

6

232-46324

LOCK NUT,1 1/2"-12, GC

1шт.

10

87409467

PISTON

Cylinder

1шт.

11

87393648

PISTON ROD

Piston

1шт.

Chrome Rod

1шт.

11

87393648

PISTON ROD

1шт.

Black Rod (Nitro-Steel)

1шт.

12

87409487

BOLT

Tie

4шт.

13

87410790

CYLINDER END CAP

Rod End

1шт.

14

25-1112

NUT,3/4"-16, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409389

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87409045

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
