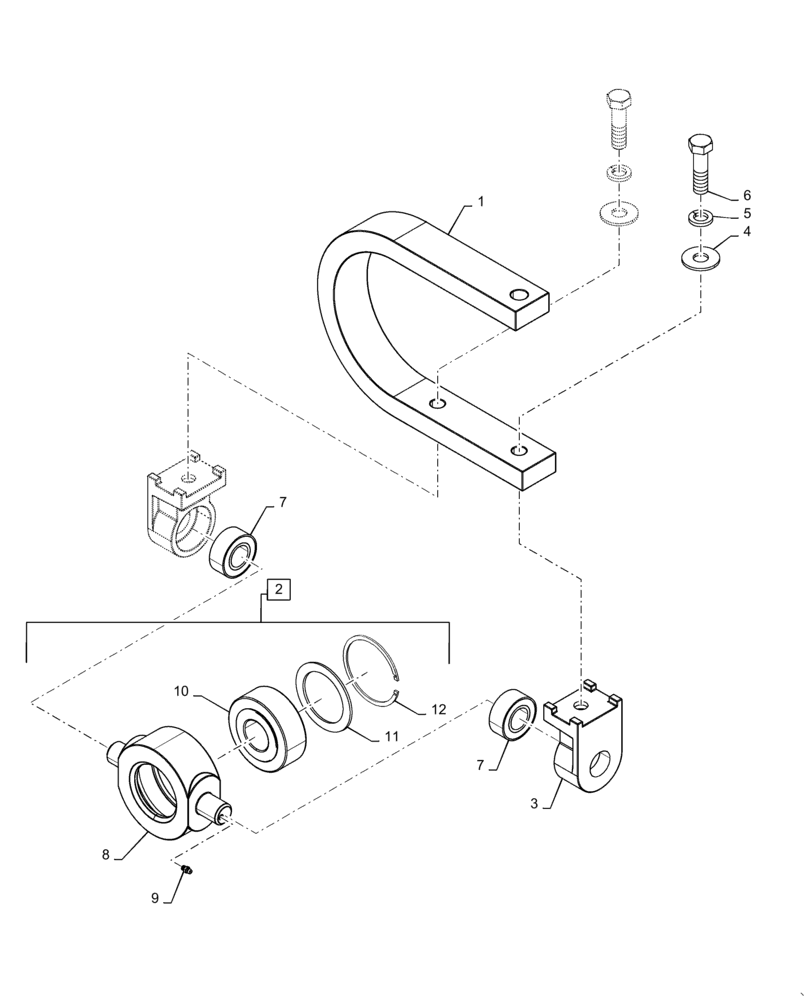

Запчасти Case IH TRUE-TANDEM 335 BARRACUDA (75.200.AF[02]) - BEARING MOUNT CUSHION (75) - SOIL PREPARATION

1

193831A1

SPRING

Bearing Standard

1шт.

2

194704A1

BEARING ASSY,44.96mm ID x 110mm OD x 38.25mm W

Trunnion Incl 8 - 12

1шт.

3

195109A1

TRUNNION

Pivot

2шт.

4

86511191

WASHER,0.81" ID x 2" OD x 0.15" Thk

2шт.

5

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

6

280173

BOLT,Hex, 3/4" - 10 x 2 3/4", Gr 5

2шт.

7

197334A1

BUSHING,32.13mm ID x 63.83mm OD x 25.91mm L

Pivot

2шт.

8

193907A1

HOUSING, BEARING,109.971 mm ID x 133 mm OD x 64 mm

1шт.

9

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

10

193906A1

BALL BEARING,44.98mm ID x 110mm OD x 42.85mm W

1шт.

11

193929A1

WASHER,79 mm ID x 109 mm OD x 3.35 mm

1шт.

12

101-21433

SNAP RING,#433, 4.641", Int

1шт.
