(75.200.AE[33]) - 25 FT 345 - LEFT FRONT WING-RIGID GANG WITH 7.5 IN. SPACING

Запчасти Case IH TRUE-TANDEM 345 (75.200.AE[33]) - 25 FT 345 - LEFT FRONT WING-RIGID GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION

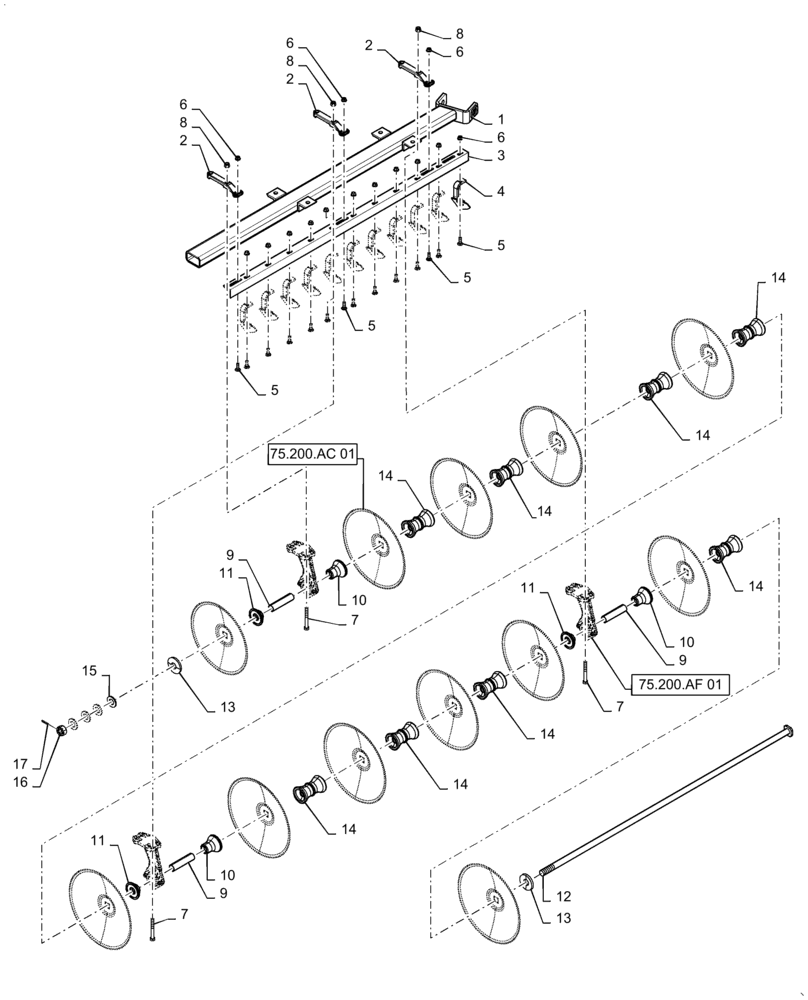

Схема запчастей Case IH TRUE-TANDEM 345 - (75.200.AE[33]) - 25 FT 345 - LEFT FRONT WING-RIGID GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION
5
2
14
2
15
7
12
17
10
6
14
9
5
75.200.af 01
14
5
1
16
3
14
6
10
14
2
14
10
6
8
11
75.200.ac 01
8
5
8
11
14
14
4
13
7
11
6
7
13
9
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47594316

TUBE

Wing Ganf Small Left

1шт.

2

231649A2

SUPPORT

Scraper Angle

3шт.

3

47484248

SCRAPER

7.5"

1шт.

4

47440974

SCRAPER

Left

11шт.

5

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

14шт.

6

84180923

FLANGE NUT

5/8"-11

14шт.

7

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

8

280375

NUT,3/4"-10, GC

6шт.

9

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Arbor Bolt

3шт.

10

101191C1

SPOOL

7-1/2" / 9"

3шт.

11

101189C1

SPOOL

7-1/2"

3шт.

12

1986269C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 87.17", Carbon Steel

1шт.

13

139773C1

WASHER

Painted Black

2шт.

14

1263631C1

SPOOL

7-1/2"

8шт.

15

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

16

84151572

SLOTTED NUT

1-1/2"-6

1шт.

17

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
