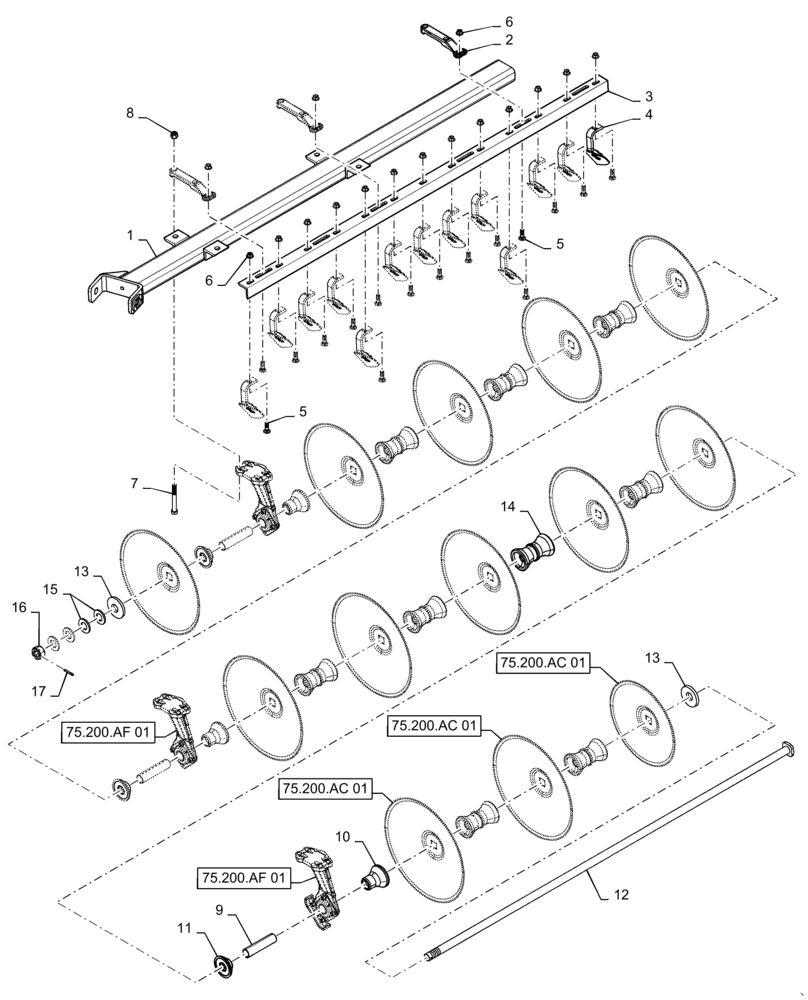

Запчасти Case IH TRUE-TANDEM 345 (75.200.AE[36]) - 25 FOOT RIGHT REAR WING-RIGID GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION

1

47594317

TUBE

Wing Gangs Small RH RR

1шт.

2

231649A2

SUPPORT

Scraper Angle

3шт.

3

47559552

SCRAPER

7.5"

1шт.

4

47440974

SCRAPER

Left

13шт.

5

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

16шт.

6

84180923

FLANGE NUT

5/8"-11

16шт.

7

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

8

280375

NUT,3/4"-10, GC

6шт.

9

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Arbor Bolt

3шт.

10

101191C1

SPOOL

7 -1/2",9" Bearing

3шт.

11

101189C1

SPOOL

7.5"

3шт.

12

1263541C6

BOLT,Arbor, 1-1/2" - 6 x 2403mm, Drilled

1шт.

13

139773C1

WASHER

Painted Black

2шт.

14

1263631C1

SPOOL

Spacing 7.5"

9шт.

15

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

16

84151572

SLOTTED NUT

1 1/2-6"

1шт.

17

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
