(75.200.AE[52]) - 28 FOOT RIGHT FRONT WING-RIGID GANG WITH 7.5 IN. SPACING

Запчасти Case IH TRUE-TANDEM 345 (75.200.AE[52]) - 28 FOOT RIGHT FRONT WING-RIGID GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION

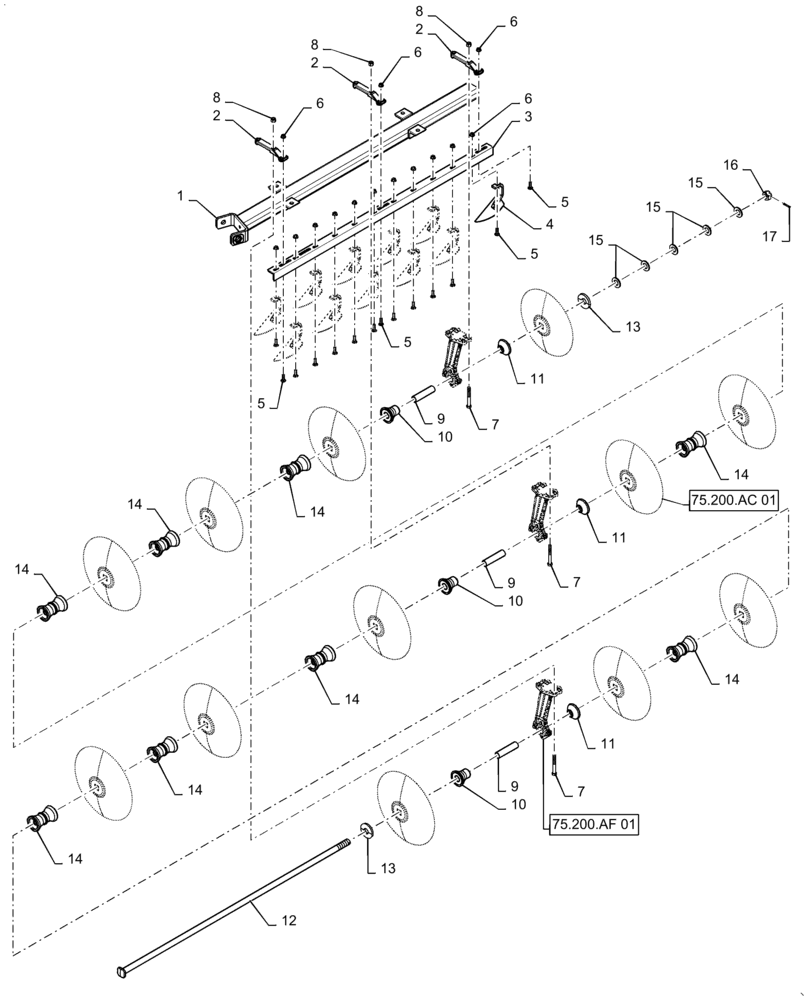

Схема запчастей Case IH TRUE-TANDEM 345 - (75.200.AE[52]) - 28 FOOT RIGHT FRONT WING-RIGID GANG WITH 7.5 IN. SPACING (75) - SOIL PREPARATION
7
5
75.200.ac 01
11
2
17
3
8
1
11
11
15
14
2
14
5
8
6
14
4
9
14
2
6
6
7
9
5
5
9
15
14
16
6
13
7
14
8
12
75.200.af 01
10
10
10
15
14
14
13
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47480675

TUBE

Medium

1шт.

2

231649A2

SUPPORT

Scraper Angle

3шт.

3

47484178

SCRAPER

7.5" Spacing

1шт.

4

47401585

SCRAPER

Right

11шт.

5

280742

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

14шт.

6

84180923

FLANGE NUT

5/8"-11

14шт.

7

280120

BOLT,Hex, 3/4" - 10 x 6", Gr 5

6шт.

8

280375

NUT,3/4"-10, GC

6шт.

9

112769C1

BUSHING,38.91mm ID x 44.45mm OD x 183mm L

Arbor Bolt

3шт.

10

101191C1

SPOOL

Bearing

3шт.

11

101189C1

SPOOL

Half Spacer 7.5"

3шт.

12

1986269C5

SPECIAL BOLT,Square, 1 1/2" - 6 x 87.17", Carbon Steel

1шт.

13

139773C1

WASHER

Painted Black

2шт.

14

1263631C1

SPOOL

7.5" Spacing

8шт.

15

87412142

WASHER,40mm ID x 75mm OD x 6.5mm Thk

1шт.

16

84151572

SLOTTED NUT

1 1/2"-6

1шт.

17

87019504

COTTER PIN,7.94mm OD x 60.33mm L, Slotted

1шт.
