(A-46[A]) - ALTERNATING CHECK VALVE ATTACHMENT USE W/DEPTH CONTROL FOR TRACTORS WITHOUT CHECK VALVE

Запчасти Case IH 4700 (A-46[A]) - ALTERNATING CHECK VALVE ATTACHMENT USE W/DEPTH CONTROL FOR TRACTORS WITHOUT CHECK VALVE

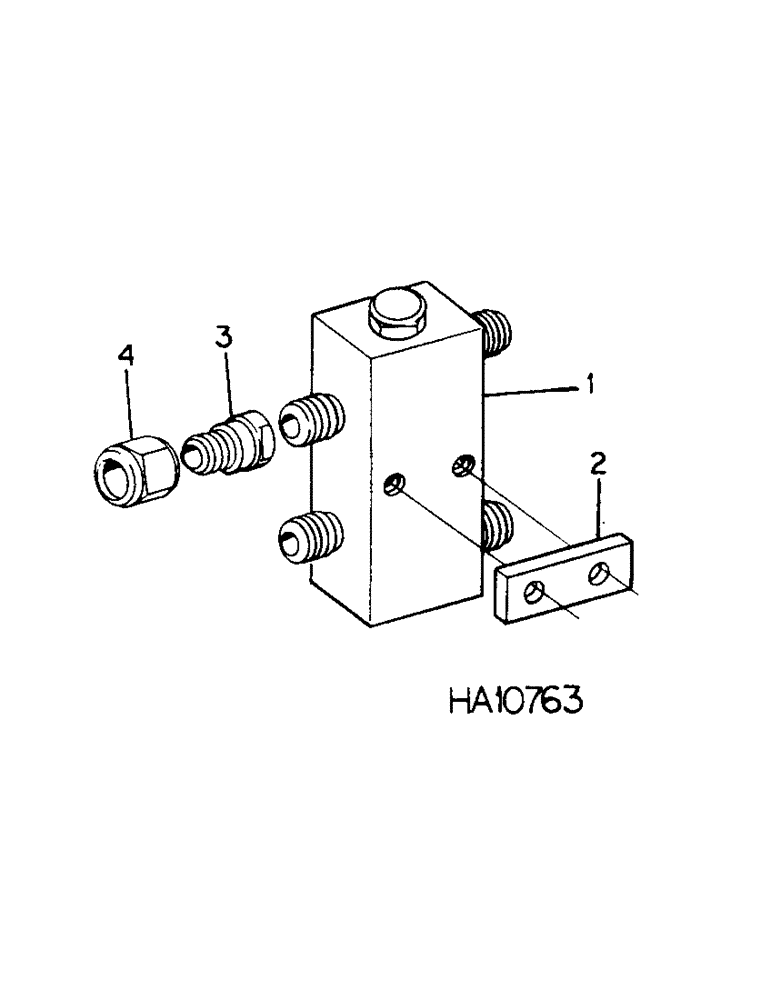

Схема запчастей Case IH 4700 - (A-46[A]) - ALTERNATING CHECK VALVE ATTACHMENT USE W/DEPTH CONTROL FOR TRACTORS WITHOUT CHECK VALVE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

142864C95

VALVE

ASSY, alternating check

1шт.

2

810201C1

BAR

valve support

1шт.

180137

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 type 5

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

3

386624R1

REDUCER,37 Degree, 7/8"-14, Fem x 3/4"-16 Male

ADAPTER, reducer

4шт.

4

(Not used this application)

1шт.
