(35.100.05) - 3-1/2 X 42 IN - 22 - 25 FOOT WING FOLD CYLINDER

Запчасти Case IH 330 TRUE-TANDEM (35.100.05) - 3-1/2 X 42 IN - 22 - 25 FOOT WING FOLD CYLINDER (35) - HYDRAULIC SYSTEMS

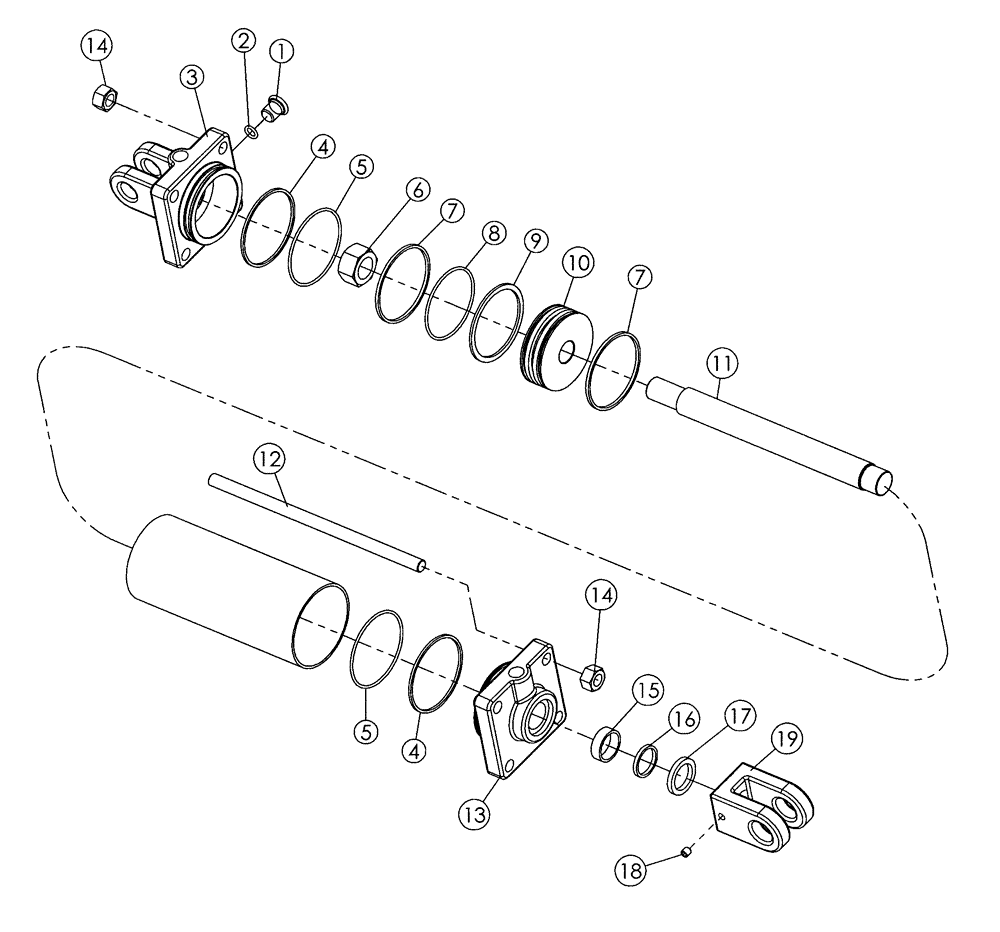

Схема запчастей Case IH 330 TRUE-TANDEM - (35.100.05) - 3-1/2 X 42 IN - 22 - 25 FOOT WING FOLD CYLINDER (35) - HYDRAULIC SYSTEMS
17
15
18
7
8
1
12
13
16
19
5
14
2
5
9
4
3
6
10
14
7
4
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

87388869

HYDRAULIC CYLINDER,Double Acting, 38.1mm Rod, 1066.8mm Stroke

3-1/2 In x 42 In, Inc 1 - 19

1шт.

87388869R

REMAN-HYD CYLINDER

3-1/2 In x 42 In, Inc 1 - 19

1шт.

87388869C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409446

HEAD

Clevis Base End

1шт.

6

232-46316

NUT,1"-14, GC

1шт.

10

87409469

PISTON

Cylinder

1шт.

11

87393654

PISTON ROD

Piston

1шт.

12

87410780

TIE-ROD

Tie

4шт.

13

87409403

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

87409390

CLEVIS,1 -1/2" - 12

Rod End

1шт.

87409039

SEAL KIT

1шт.

Inc. 4 - 5, 7 - 9, 15 - 17

1шт.
