(35.100.08) - 4 X 8 IN - 25 AND 31 FOOT MAIN LIFT - 34 FOOT WING LIFT CYLINDER

Запчасти Case IH 330 TRUE-TANDEM (35.100.08) - 4 X 8 IN - 25 AND 31 FOOT MAIN LIFT - 34 FOOT WING LIFT CYLINDER (35) - HYDRAULIC SYSTEMS

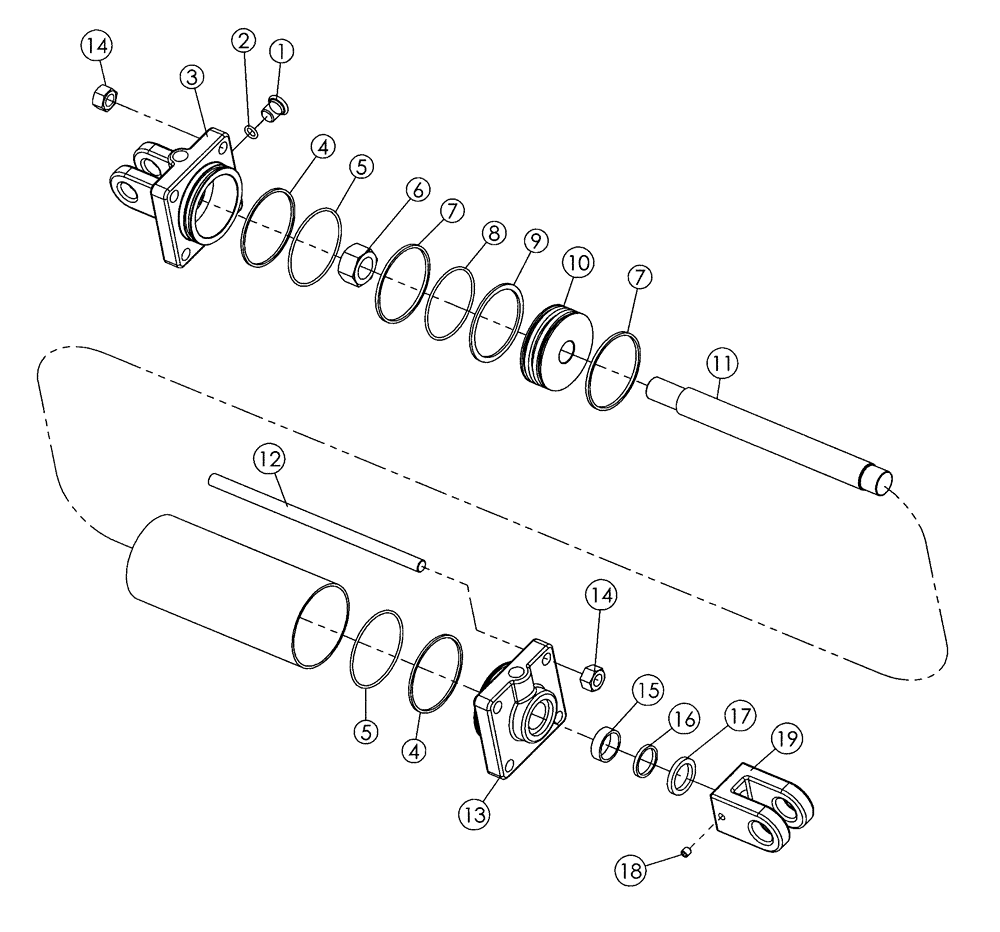

Схема запчастей Case IH 330 TRUE-TANDEM - (35.100.08) - 4 X 8 IN - 25 AND 31 FOOT MAIN LIFT - 34 FOOT WING LIFT CYLINDER (35) - HYDRAULIC SYSTEMS
3
6
5
11
8
4
18
7
2
14
7
19
13
17
15
9
4
10
5
16
14
1
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

84281668

CYLINDER,Double Acting, 35.05mm Rod, 203.2mm Stroke

4 x 8, Rephasing, Inc. 1 - 19

1шт.

84281668R

REMAN-HYD CYLINDER

330 TRUE-TANDEM 22'-34' DISK HARROW, 4 x 8, Rephasing

1шт.

84281668C

CORE-HYD CYLINDER

Return Number

1шт.

47576396R

REMAN-HYD CYLINDER

Reman Double Acting, 35.05mm Rod, 203.2mm Stroke

1шт.

47576396C

CORE-HYD CYLINDER

Return Number

1шт.

1

86590562

PLUG,Hex Soc, 3/4" - 16 ORB

Inc. 2

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

3

87409432

HEAD

Clevis Base End

1шт.

6

232-46318

LOCK NUT,1 1/8"-12, GC

1шт.

10

87409482

PISTON

Cylinder

1шт.

11

87409453

PISTON ROD

Nitro Tec Finish

1шт.

11

87525935

PISTON ROD

Chrome Finish

1шт.

12

87409486

BOLT

Rod Tie

4шт.

13

87409397

HEAD

Rod End

1шт.

14

25-1110

NUT,5/8"-18, G5

5/8, NC

4шт.

18

83-1388

SET SCREW,Hex Soc, 3/8"-16 x 1/2"

1шт.

19

84258352

CLEVIS,1 -1/4" - 12

Rod End

1шт.

87409033

SEAL KIT

1шт.
