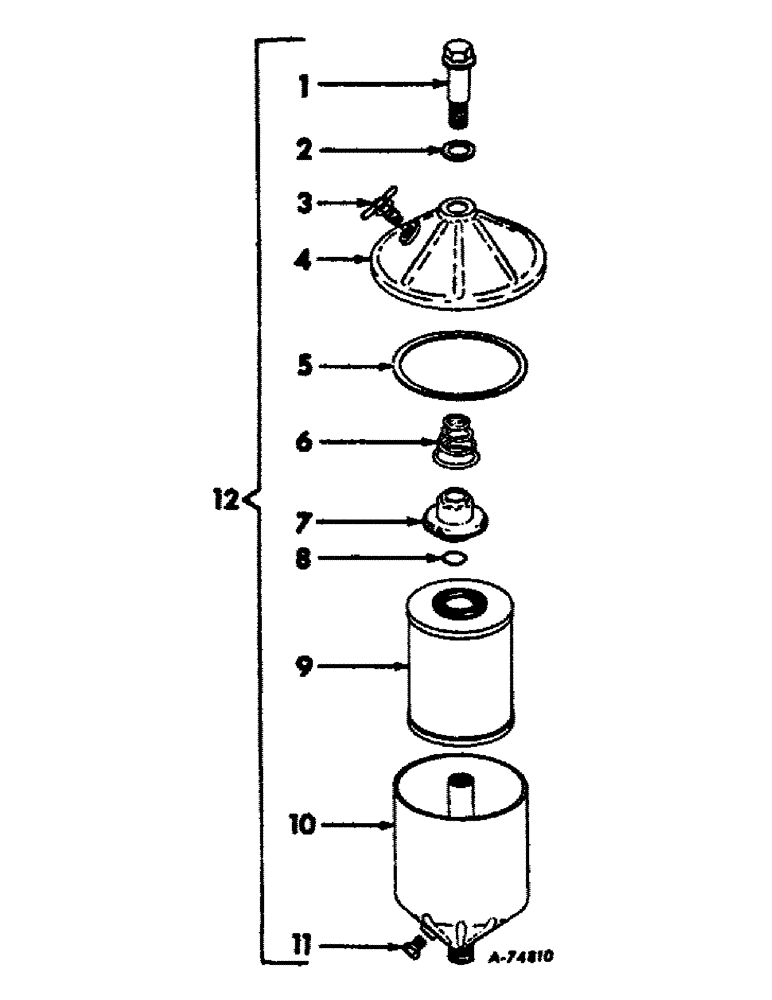

Запчасти Case IH D-188 (C-16) - FUEL FILTER

1

321727R1

CAPSCREW,3/8" - 24 x 1 11/16"

SCREW, cover retaining

1шт.

2

368334R1

GASKET

screw retaining

1шт.

3

39677DA

VALVE

BLEEDER, filter

1шт.

4

321720R91

END ASSY.

COVER ASSY., filter

1шт.

5

304102R1

GASKET

element

1шт.

6

321721R1

VALVE SPRING

SPRING, retaining

1шт.

7

321722R91

RETAINER

ASSY., gasket

1шт.

8

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32, Gasket retainer

1шт.

9

304101R91

FILTER, ELEMENT

ELEMENT ASSY., filter

1шт.

10

304100R91

BODY

Case Assy, Filter, No Longer Available, Incl 11

1шт.

11

258995R1

PLUG

filter drain

1шт.

12

347066R91

HOSE ASSY.

FILTER ASSY., fuel

1шт.

304104R91

HOLDER

BRACKET ASSY., filter

1шт.
