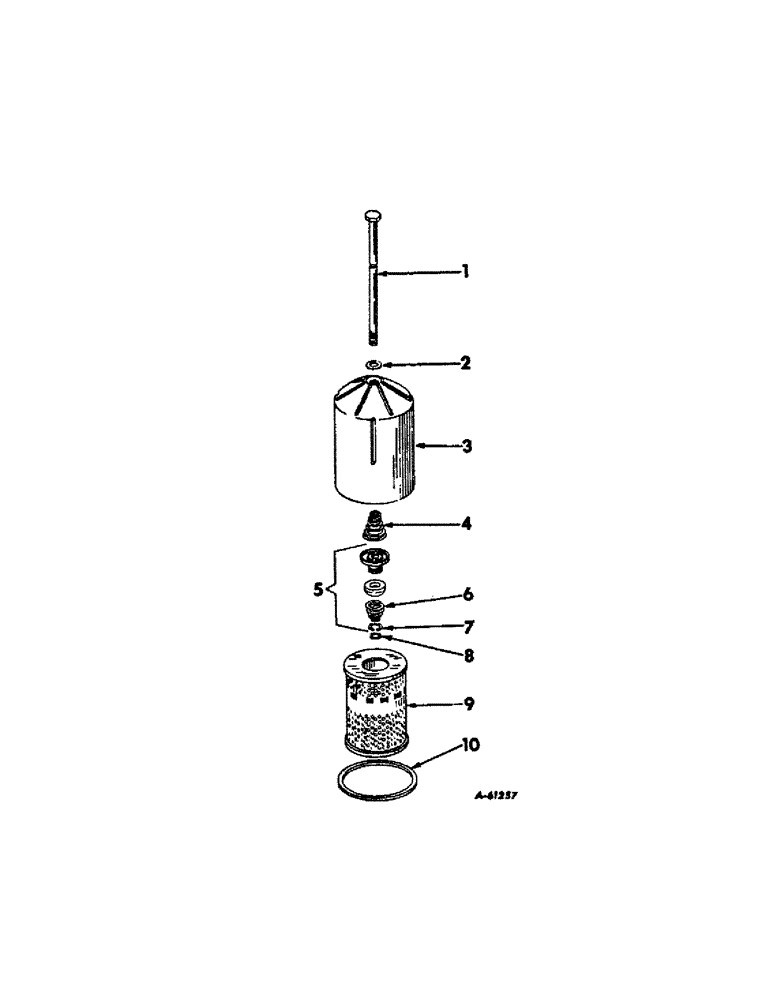

Запчасти Case IH D-188 (C-21[A]) - OIL FILTER

1

308421R2

BOLT

BOLT, oil filter base

1шт.

2

59657D

WASHER,13.1mm ID x 19.05mm OD x 1.58mm Thk

oil filter case bolt, Replaces 116105

1шт.

3

349077R91

CASE

oil filter, Replaces 310143R1

1шт.

4

308422R1

VALVE SPRING

SPRING, oil filter element hold-down

1шт.

5

312887R91

LOCK VALVE

VALVE ASSY., by-pass

1шт.

6

308458R1

VALVE SPRING

SPRING, by-pass valve

1шт.

7

154665R1

SNAP RING,#75, Ext

Ring, Snap, , by-pass valve spring #75, Ext

1шт.

8

308459R1

RING

rubber

1шт.

9

279994R91

ELEMENT

oil filter

1шт.

10

304854R1

RING

GASKET, oil filter case

1шт.
