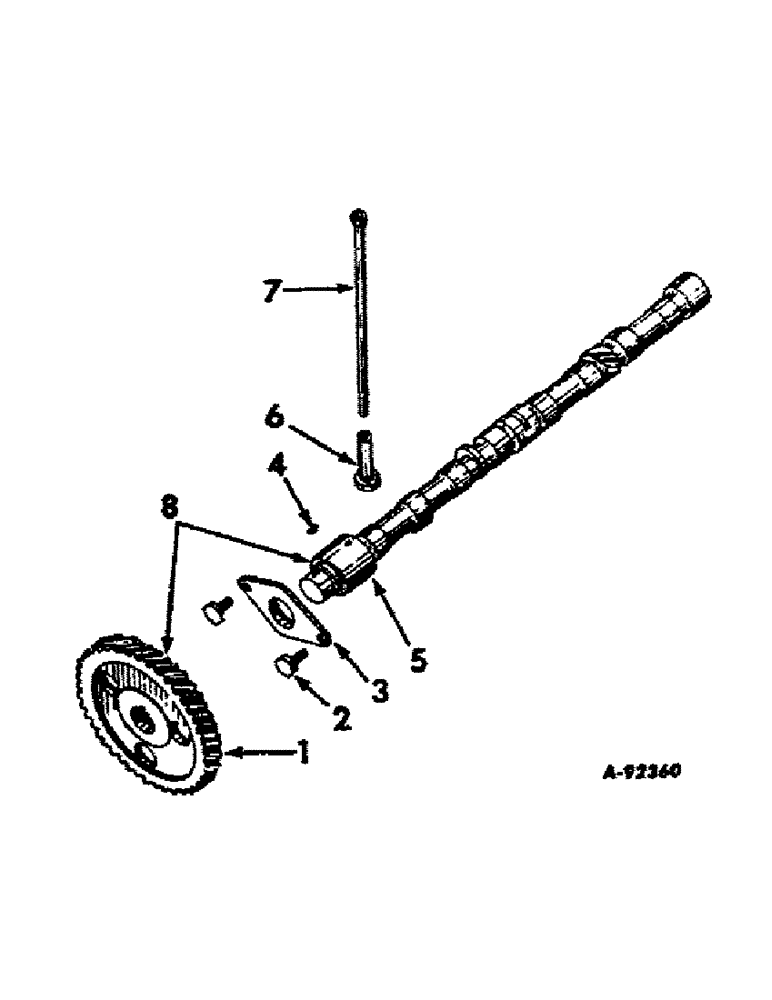

Запчасти Case IH D-188 (C-02A) - CAMSHAFT AND RELATED PARTS

1

367240R1

PINION

GEAR, camshaft

1шт.

16026DB

NUT

camshaft gear

1шт.

2

70425R1

CAPSCREW,Hex, 3/8"- 16 x 3/4"

BOLT, camshaft thrust plate

2шт.

3

35650HA

FLANGE

PLATE, camshaft thrust

1шт.

4

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

camshaft gear

1шт.

5

308391R1

CAMSHAFT

1шт.

6

684729C1

TAPPET

valve

8шт.

7

164436R91

PUSH ROD

ROD, valve push

8шт.

8

NOT USED IN THIS APPLICATION

1шт.
