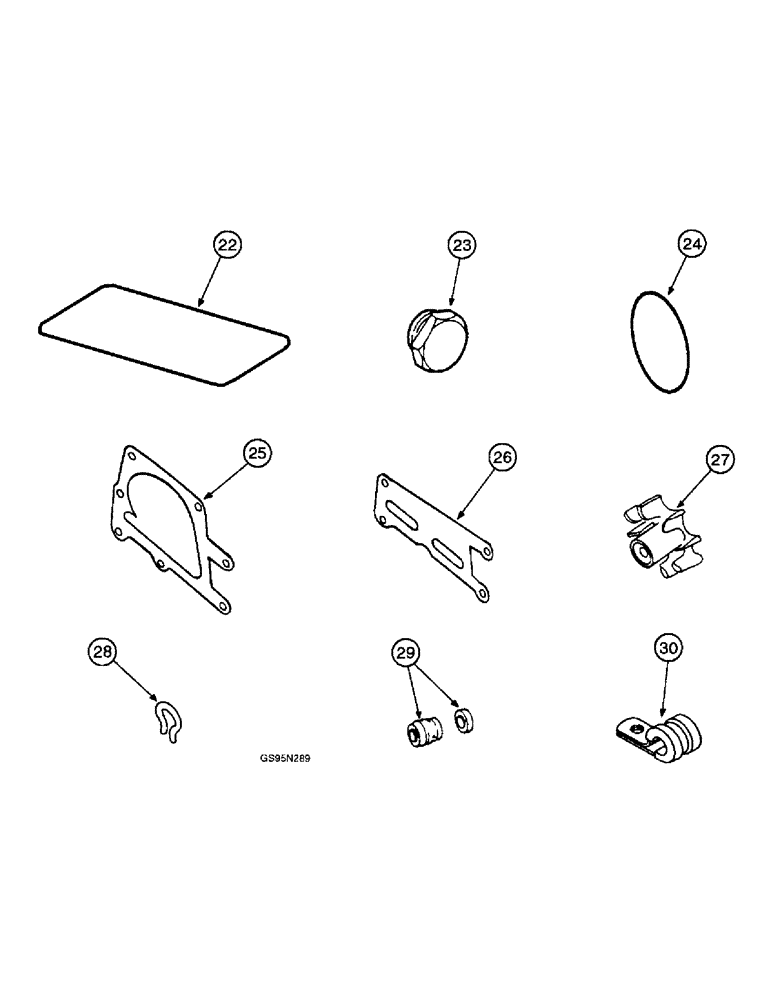

Запчасти Case IH D-301 (3-18) - SERVICE KITS, CLIPS

1806929C91

GASKET KIT

- fuel injection pump overhaul gasket (Replaces kit 347784R91), Includes: Timing Cover Gasket & Ref. 22 - 24

1шт.

73453

GASKET

- timing cover (Replaces gasket 367979R1)

2шт.

22

368012R1

SEAL

RING - seal, governor control cover

1шт.

23

615695C1

PLUG

- end plate pipe, also order seal 340214R1 below (Replaces plug 346712R1)

1шт.

23a

340214R1

SEAL

- end plate plug, not shown

1шт.

603936C1

PLUG

- end plate

1шт.

24

615768C1

CLIP

RING - flexible retaining

1шт.

238-5215

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

- 1-1/16 ID x 1/8 inch, pilot tube oil (Replaces seal 304720R1)

1шт.

304721R1

SEAL

- pivot shaft

3шт.

R14711

SEAL

- oil, drive shaft (Replaces seal 313288R1)

2шт.

319687R1

WIPER SEAL

- piston hole plug

4шт.

319689R1

WIPER SEAL

- advance screw hole plug

1шт.

A43871

SEAL

- element (Replaces seal 346709R1)

1шт.

238-5010

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

-010, 70 Duro, .239" ID x .070" Thk, Advance adjusting screw (Replaces seal 352219R1)

5шт.

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Head locating screw

4шт.

367982R1

O-RING,0.154" Width

SEAL - transfer pump, no longer available

1шт.

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, End plate sleeve (Replaces seal 368030R1)

2шт.

1807682C1

SEAL

- hydraulic head (Replaces seal 368337R1)

1шт.

615142C1

SEAL

SEAL - regulating piston, order sleeve 1808814C1

1шт.

R22936

WASHER

- throttle shaft seal (Replaces washer 319744R1)

2шт.

324791R1

SEAL ASSY.

WASHER - torque screw hole plug

1шт.

367984R1

SEALING WASHER

WASHER - flat

12шт.

368014R1

WASHER

- guide stud

1шт.

374544R94

KIT

- water pump service, Includes: Ref. 25 - 28B

1шт.

25

69674R1

GASKET

- water pump plate

1шт.

26

69676R2

GASKET

- water pump

1шт.

27

387931R1

TORQ CONV IMPELLER

IMPELLER - water pump

1шт.

28

102069H

RING

- bearing retainer

1шт.

28a

687161C92

KIT

- water pump seal, Not Shown

1шт.

28b

376602R91

BEARING ASSY,30mm OD x 110.69mm L

SHAFT AND BEARING - water pump, Not Shown

1шт.

29

687161C92

KIT

- water pump seal

1шт.

363717R91

CLIP - injection system, used with 403 combines

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, rear of crankcase front plate, right-hand side, used with 453 and 715 combines

1шт.

384559R1

CLIP

- on oil pan mounting bolts right-hand side, used with 453 and 715 combines

2шт.

263514R91

CLIP

- cable, no longer available

1шт.

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 11/32 x 13/16 x 3/32", hardened (Replaces washer 103341)

1шт.
