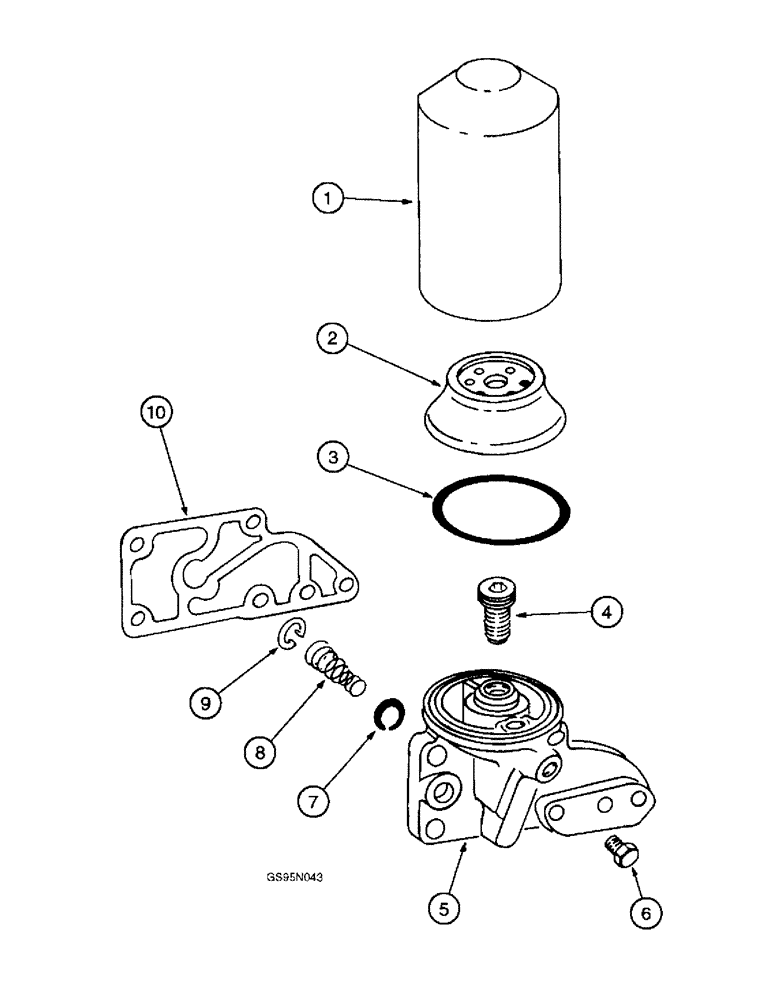

Запчасти Case IH D-301 (3-44) - LUBRICATING OIL FILTER, SPIN-ON TYPE

674085C91

RESERVOIR, HYDRAULIC

FILTER ASSEMBLY - lubricating oil, Includes: Ref. 1 - 9, no longer available as a unit, order components

1шт.

1

A184775

ENGINE OIL FILTER

ELEMENT - oil filter (Replaces element 675616C91)

1шт.

2

NSS

NOT SOLD SEPARAT

ADAPTER - spin-on oil filter, order kit 538837R91

1шт.

3

304854R1

RING

GASKET - oil filter adapter

1шт.

4

NSS

NOT SOLD SEPARAT

BOLT - filter base adapter, order kit 538837R91

1шт.

5

601789C11

BASE

ASSEMBLY - oil filter, Includes: Ref. 5A, no longer available

1шт.

5a

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- oil filter, hex socket, 3/8 inch PT, not shown (Replaces plug 445673)

1шт.

6

221-841

PLUG

- hex socket, 1/4 inch PT, drain (Replaces plug 444618)

1шт.

7

534180R1

VALVE

- oil filter base (Replaces valve 384528R2)

1шт.

8

384527R1

SPRING

- element by-pass

1шт.

9

100-21100

SNAP RING,1.00", Int, #100

Ring, Snap, (Replaces ring 303322R1) 1.00", Int, #100

1шт.

10

601790C2

GASKET

- oil filter base

1шт.

138225

BEARING

SCREW - hex, 5/16 NC x 1-3/4 inch

2шт.

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

- hex, 7/16 NC x 1-1/4 inch (Replaces bolt 179860)

3шт.

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch (Replaces bolt 179866)

1шт.

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, (Replaces washer 103322) 7/16"

4шт.

538837R91

KIT

- spin-on oil filter conversion, includes: Ref. 2 - 4 & instructions

1шт.
