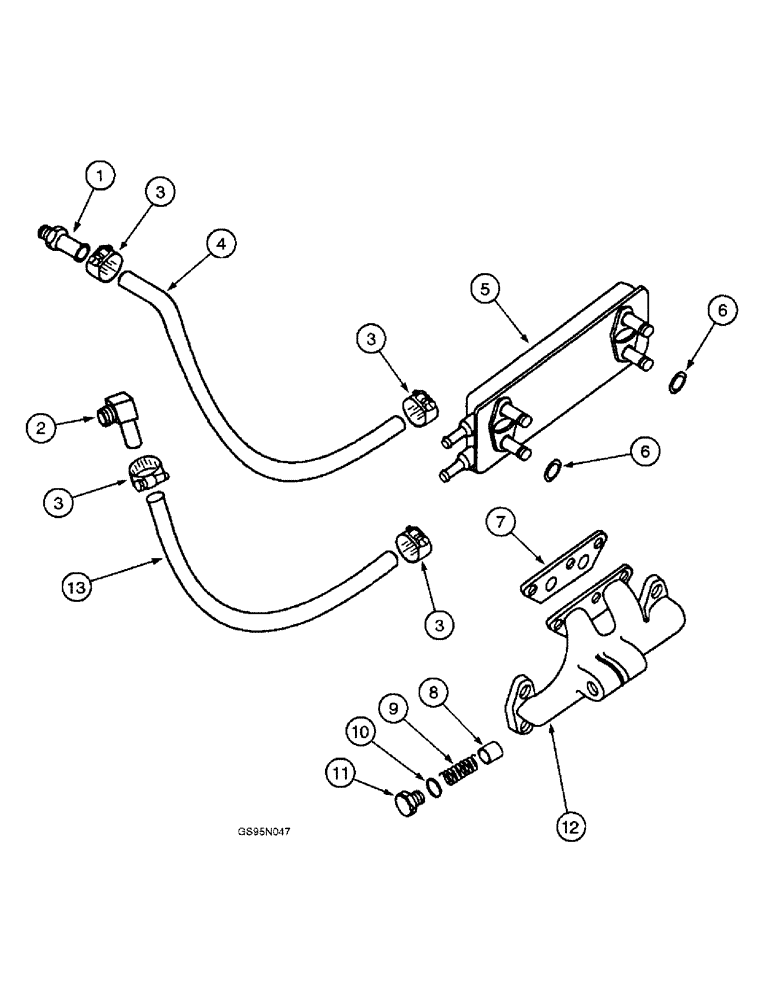

Запчасти Case IH D-301 (3-46) - ENGINE OIL COOLER

1

320182R1

CONNECTOR - water inlet hose, no longer available

1шт.

2

320275R1

ELBOW UNION

ELBOW - hose, 90 degree, 5/8 x 1/2 NPT, used with all machines except 453 and 715 combines

1шт.

2

320182R1

CONNECTOR - water outlet hose, used with 453 and 715 combines

1шт.

3

214-1410

HOSE CLAMP,#10, 0.56" - 1.06", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 274085R91) #10, 0.56/1.06 Type F Worm

4шт.

4

321880R1

HOSE

- engine oil cooler water inlet, used with all machines except 453 and 715 combines

1шт.

4

673820C1

HOSE

- engine oil cooler water inlet, used with 453 and 715 combines, 27-1/2 inch (70 mm) long, cut from bulk hose 364359C1 below

1шт.

5

279212R92

COOLER

- engine oil

1шт.

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC (Replaces nut 102634)

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

6

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

Oil cooler to manifold -210, 70 Duro, .734" ID x .139" Thk

2шт.

7

349038R2

MANIFOLD GASKET

- oil cooler manifold

1шт.

279160R11

MANIFOLD ASSEMBLY - engine oil cooler, Includes: Ref. 8 - 12

1шт.

8

251400R1

VALVE

- oil cooler relief

1шт.

9

279163R1

SPRING

- oil cooler relief valve

1шт.

10

251403R1

GASKET

- relief valve plug

1шт.

11

251402R1

PLUG

- relief valve

1шт.

12

NSS

NOT SOLD SEPARAT

MANIFOLD - engine oil cooler, order manifold assembly 279160R11

1шт.

444574

PLUG,Sq Hd, 1/4"-18 NPTF

- square head, pipe, 1/4 inch, no longer used

1шт.

13

312503R1

PIPE CLAMP

HOSE - engine oil cooler water outlet, used with all machines except 453 and 715 combines

1шт.

13

337393R1

HOSE

- engine oil cooler water outlet, used with 453 and 715 combines, 42 inch (107 mm) long, cut from bulk hose 364359C1 below

1шт.

364359C1

HOSE

- bulk, 50 foot (15240 mm) long

1шт.
