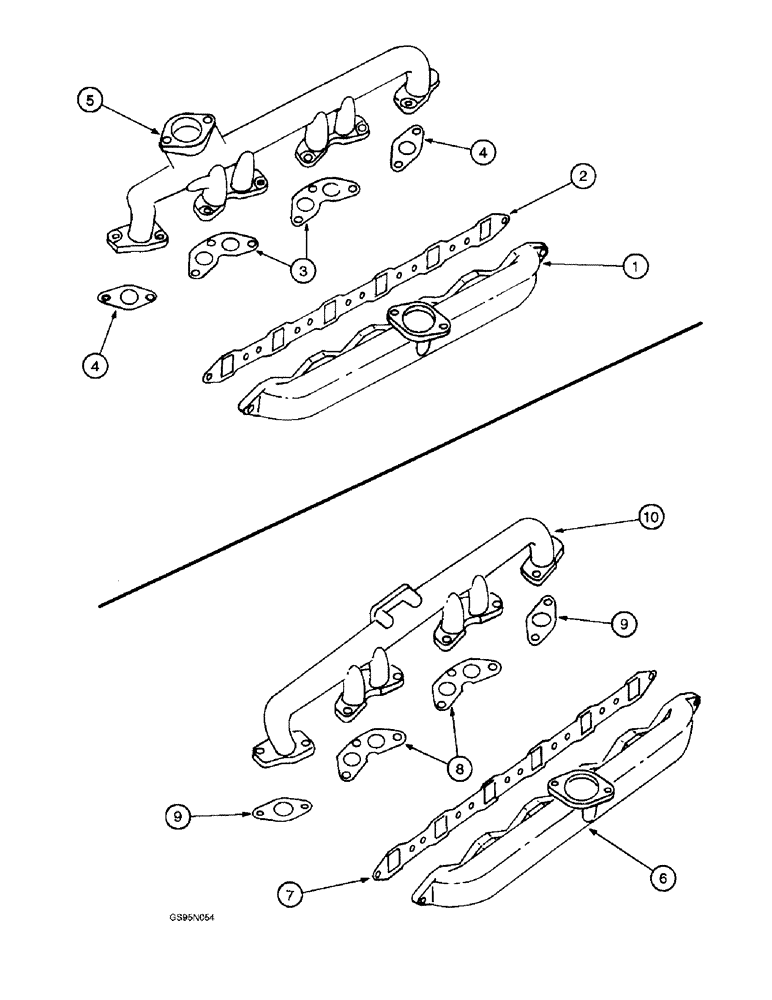

Запчасти Case IH D-301 (3-60) - INTAKE AND EXHAUST MANIFOLD

1

332110R11

MANIFOLD

ASSEMBLY - intake, for 403, 453, 503 Hillside Combines, 503 Combines with Hydrostatic Transmissions and 715 Combines, Includes: Ref. 6A, no longer available

1шт.

1a

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket headless, 1/8 inch NPT (Replaces plug 445684), Not Shown

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.

2

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

3

278314R1

MANIFOLD GASKET

- exhaust manifold center

2шт.

4

278313R3

MANIFOLD GASKET

- exhaust manifold end

2шт.

5

278643R2

PIPE

MANIFOLD - exhaust

1шт.

39524DA

NUT

- exhaust manifold

10шт.

113934H

WASHER

- exhaust manifold

4шт.

6

332110R11

MANIFOLD

ASSEMBLY - intake, for 503 Gear Drive Combines, Includes: Ref. 6A, no longer available

1шт.

6a

445684

PLUG

- square head pipe, 1/8 inch NPT, Not Shown

1шт.

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

(Replaces bolt 179840) Hex, 3/8"-16 x 1 1/8", G5, Full Thd

12шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

12шт.

7

305804R1

MANIFOLD GASKET

- intake manifold

1шт.

8

278314R1

MANIFOLD GASKET

- exhaust manifold center

2шт.

9

278313R3

MANIFOLD GASKET

- exhaust manifold end

2шт.

10

312650R1

MANIFOLD

- exhaust, no longer available

1шт.

39524DA

NUT

- exhaust manifold

10шт.

113934H

WASHER

- flat, 13/32 x 13/16 x 7/64 inch

4шт.
