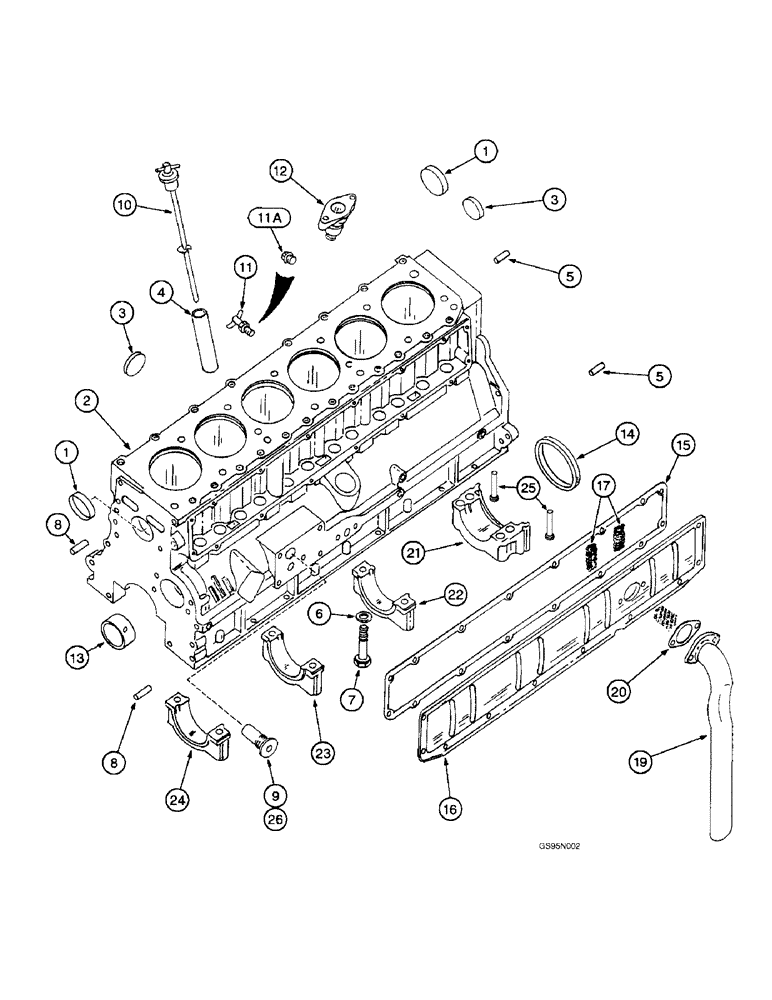

Запчасти Case IH D-301 (3-02) - CRANKCASE AND RELATED PARTS

749555C91

CRANKCASE ASSEMBLY - remanufactured for 601779C91, no longer available

1шт.

601779C91

CRANKCASE ASSEMBLY - service, engine serial numbers prior to 6500, Includes: Ref. 1 - 9, no longer available

1шт.

1

41-1632

PLUG,Cup, 2", Stainless

- cup type, core hole, 2 inch diameter (Replaces plug 20840R1)

2шт.

2

NSS

NOT SOLD SEPARAT

CRANKCASE - engine, order crankcase assembly

1шт.

NSS

NOT SOLD SEPARAT

BUSHING - crankcase, order crankcase assembly

4шт.

NSS

NOT SOLD SEPARAT

CAP - crankcase, order crankcase assembly

4шт.

50410DA

PLUG

- hex socket, 1/8 inch PT

2шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT (Replaces plug 445671)

2шт.

217-436

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT (Replaces plug 444782)

2шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

3

41-1626

PLUG,Cup, 1 5/8", Stainless

- core hole (Replaces plug 70128R1)

6шт.

4

368985R2

TUBE

- oil filter

1шт.

5

371699R2

STUD

DOWEL - engine rear support

2шт.

6

345409R1

WASHER,13.84mm ID x 25.4mm OD x 2.34mm Thk

- crankshaft bearing cap bolt

10шт.

7

328512R1

BOLT (SPREADER),1/2" - 13 x 3 1/4"

BOLT - crankshaft bearing cap

10шт.

8

37-1820

DOWEL,1/2" x 1 1/4"

PIN - crankshaft front plate, dowel, 1/2 x 1-1/4 inch, hardened (Replaces dowel 141285)

2шт.

9

612092C91

LOCK VALVE

VALVE ASSEMBLY - oil pressure regulating, Includes: Ref. 9A, no longer available

1шт.

9a

349055R2

RING

O-RING - 13/16 x 1 x 3/32 wide, Not Shown

1шт.

83-1448

SET SCREW,7/16" - 14 x 1/2"

SCREW - crankcase, set, hex socket, 7/16 NC x 1/2 inch, cup point (Replaces screw 102604)

1шт.

10

368986R91

GAUGE ASSY.

GAUGE - oil level

1шт.

11

9982T

COCK

VALVE - type B, 1/4 inch drain

1шт.

11a

221-841

PLUG

- hex socket, 1/4 inch PT (Replaces plug 444618)

1шт.

12

306637R11

SUPPORT

ASSEMBLY - oil pump shaft, Includes: Ref. 12A

1шт.

12a

41-20

PLUG,Exp, 1 1/4"

- expansion, 1-1/4 inch (Replaces plug 172558), Not Shown

1шт.

13

70259R2

BUSHING

BEARING - camshaft, front

1шт.

13

70260R1

BUSHING,53.25mm ID x 56.54mm OD x 27.23mm L

BEARING - camshaft, intermediate front

1шт.

13

70261R1

CAMSHAFT BEARING

BEARING - camshaft, intermediate rear

1шт.

13

70262R1

CAMSHAFT BEARING,37.69mm ID x 41.45mm OD x 33.58mm W

BEARING - camshaft, rear

1шт.

14

538983R1

OIL SEAL,99.44mm ID x 116.03mm OD x 9.53mm Thk

- oil, rear bearing cap (Replaces seal 403066R91)

1шт.

15

369982R1

GASKET

- valve push rod cover

1шт.

16

315970R91

PLATE ASSY.

COVER ASSEMBLY - valve push rod, Includes: Ref. 17, no longer available

1шт.

17

349363R1

FILTER CARTRIDGE

ELEMENT - breather (Replaces element 315849R1)

2шт.

18

375612R91

CAPSCREW,1/4" - 20 x 1/2"

SCREW - machine, slotted truss head, 1/4 NC x 1/2 inch, includes washer, not shown

16шт.

19

368429R31

VENTILATION PIPE

PIPE ASSEMBLY - breather, will work for 395995R2, no longer available

1шт.

374587R91

SCREW - machine, slotted truss head, 1/4 NC x 1/2 inch, includes washer, no longer available

2шт.

20

369981R1

GASKET

- breather pipe

1шт.

21

306674R1

CAP - crankshaft rear bearing, partially finished, see service manual

1шт.

22

306673R1

CYLINDER END CAP

CAP - crankshaft rear intermediate bearing, partially finished, see service manual

1шт.

23

306672R1

CYLINDER END CAP

CAP - crankshaft front intermediate bearing, partially finished, see service manual

1шт.

24

306671R1

CAP - crankshaft front bearing, partially finished, see service manual

1шт.

25

310665R1

PLUG

- rear bearing cap seal

2шт.

26

341195R92

VALVE

- oil pressure regulating, machines with engine serial number 6501 and after

1шт.
