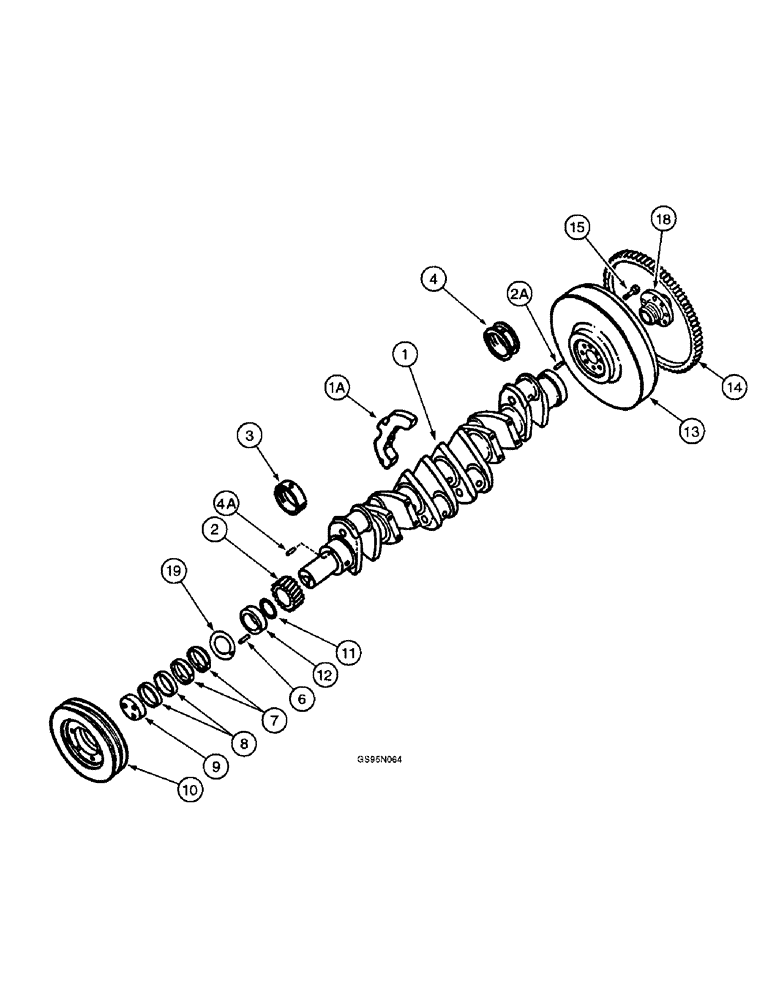

Запчасти Case IH D-310 (5-024) - CRANKSHAFT, FLYWHEEL AND BEARINGS

3059757R93

CRANKSHAFT BEARING

ASSEMBLY - standard, used with all machines except 715 combines, Includes: Ref. 1 - 4A & Connecting Rod Bearing

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, order crankshaft assembly 3059757R93

1шт.

3055351R91

BEARING ASSY

BEARING - connecting rod

6шт.

3059574R93

CRANKSHAFT

ASSEMBLY - 0.50 mm undersize, used with all machines except 715 combines, no longer used, order standard crankshaft assembly 3059757R93, Includes: Ref. 1 - 4A & Connecting Rod Bearing

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - 0.50 mm undersize, order crankshaft assembly 3059574R93

1шт.

3056879R11

BEARING ASSY

BEARING - connecting rod, 0.50 mm undersize

6шт.

3059576R93

CRANKSHAFT

ASSEMBLY - 0.750 mm undersize, used with all machines except 715 combines, no longer used, order standard crankshaft assembly 3059757R93, Includes: Ref. 1 - 4A & Connecting Rod Bearing

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - 0.750 mm undersize, order crankshaft assembly 3059576R93

1шт.

3055781R11

BEARING ASSY

- connecting rod, 0.75 mm undersize

6шт.

3138975R92

CRANKSHAFT

ASSEMBLY - standard, used with 715 combines, Includes: Ref. 1 - 4A & Connecting Rod Bearing

1шт.

1

NSS

NOT SOLD SEPARAT

CRANKSHAFT - standard, order crankshaft assembly 3138975R92

1шт.

3055351R91

BEARING ASSY

BEARING - connecting rod

6шт.

1a

NSS

NOT SOLD SEPARAT

WEIGHT - balance, crankshaft, order crankshaft assembly

12шт.

3055147R2

BOLT,7/16" - 20 x 42.5mm

SCREW - weight

24шт.

2

3055028R1

PINION

GEAR - crankshaft pinion, 33 teeth

1шт.

2a

37-2614

DOWEL,3/8" x 7/8"

PIN - dowel, 3/8 x 7/8 inch, used with crankshaft assembly 3059757R93

1шт.

2a

141250

PIN,3/8" x 1 3/4"

- dowel, 3/8 x 1-3/4 inch, used with crankshaft assembly 3138975R92, no longer used

1шт.

3

3055130R21

CRANKSHAFT BEARING

BEARING - main, standard, two halves

6шт.

3

3056832R21

BEARING ASSY

BEARING - main, 0.25 mm undersize, two halves

6шт.

3

3056877R21

BEARING ASSY

BEARING - main, 0.50 mm undersize, two halves

6шт.

3

3055779R21

BEARING ASSY

- main, 0.75 mm undersize, two halves

6шт.

4

3055129R21

CRANKSHAFT BEARING

BEARING - thrust, main, standard, two halves

1шт.

4

3056820R11

BEARING ASSY

BEARING - thrust, main, 0.25 mm undersize, two halves

1шт.

4

3056875R11

BEARING ASSY

BEARING - thrust, main, 0.50 mm undersize, two halves

1шт.

4

3055776R11

BEARING ASSY

BEARING - thrust, main, 0.75 mm undersize, two halves

1шт.

4a

838-5410

LOCK PIN,M4 x 10, Slotted

PIN - roll, 4 x 10 mm (Replaces pin 932169R1)

1шт.

6

932681R1

DOWEL,4mm OD x 24mm L

Pin M4 x 24, Oval

1шт.

6

932224R1

DOWEL,M4 x 32, Oval

PIN - dowel, 4 x 32 mm

1шт.

6

932652R1

DOWEL,4mm OD x 28mm L

PIN - dowel, 4 x 28 mm

1шт.

7

3055152R91

RING

ELEMENT - spring tightener, two used with all machines except 782 cotton pickers, one used with 782 cotton pickers

1шт.

8

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- pressure, two used with all machines except 95 cotton harvesters, 715 combines and 782 cotton pickers, one used with 95 cotton harvester and 715 combines, three used with 782 cotton pickers

1шт.

9

3055154R1

WASHER

- pressure

1шт.

9

3139161R1

WASHER

- pressure, no longer used, order washer 3055154R1

1шт.

870325R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

SCREW - hex, 7/16 NC x 1-3/8 inch (Replaces screw 308464R1)

3шт.

10

3132270R95

PULLEY

- used with 706 and 756 tractors, includes vibration damper

1шт.

10

3059292R93

PULLEY

- used with 616 and 622 cotton pickers, 715 combines, includes vibration damper

1шт.

10

3132271R92

PULLEY

- used with 95 cotton harvesters, 782 cotton pickers, includes vibration damper

1шт.

10

3136906R92

PULLEY

- used with 686 and hydro 86 tractors, includes vibration damper

1шт.

11

713778R1

O-RING,3mm Thk x 55mm ID

- crankshaft

1шт.

12

NSS

NOT SOLD SEPARAT

RING - distance, order kit 3228133R93

1шт.

13

3055980R11

FLYWHEEL

ASSEMBLY - used with 706 and 756 tractors, Includes: Ref. 14

1шт.

13

395533R11

FLYWHEEL ASSEMBLY - used with 616, 622 cotton pickers and 95 cotton harvesters, no longer available, Includes: Ref. 14

1шт.

13

3218340R91

FLYWHEEL

ASSEMBLY - used with 715 combines, Includes: Ref. 14

1шт.

13

3218587R91

FLYWHEEL

ASSEMBLY - used with 782 cotton pickers, Includes: Ref. 14

1шт.

13

3218728R92

FLYWHEEL

ASSEMBLY - used with hydro 86 tractors, no longer available, Includes: Ref. 14

1шт.

13

3218731R92

FLYWHEEL

ASSEMBLY - used with 686 tractors, no longer available, Includes: Ref. 14

1шт.

14

341604R1

GEAR

- ring, used with 706 and 756 tractors

1шт.

14

3055936R2

GEAR

- ring, used with 715 combines

1шт.

14

266142R1

GEAR

- ring, used with 616, 622 cotton pickers and 95 cotton harvesters

1шт.

14

60883H

RING GEAR

GEAR - ring, used with 782 cotton pickers

1шт.

14

367042R1

GEAR

- ring, used with 686 tractors

1шт.

14

396421R1

GEAR, RING

GEAR - ring, used with hydro 86 tractors

1шт.

15

3055577R2

WHEEL BOLT

BOLT - flywheel, used with 706 and 756 tractors

7шт.

15

395535R1

BOLT,Hex, 1/2" - 20 x 2.32"

BOLT - flywheel, used with 616, 622 cotton pickers and 95 cotton harvesters

7шт.

15

3055497R2

BOLT

BOLT - flywheel, used with 715 combines

7шт.

18

60320C91

PACKAGE

KIT - drive flange hub, used with 616, 622 cotton pickers and 95 cotton harvesters, includes instructions, no longer available as a kit, order components

1шт.

384646R1

PASTE

LUBRICANT - drive flange hub

6шт.

395532R2

LARGE PLATE

PLATE - drive flange hub

1шт.

672995R91

SHAFT

- drive flange hub

1шт.

18

3218342R1

DISC

HUB - driving shaft, used with 715 combines, no longer available

1шт.

19

3144752R1

SPACER

- used with 95 cotton harvesters, no longer available

1шт.

19

3218437R1

WASHER,55.5mm ID x 79.5mm OD x 3mm Thk

SPACER - used with 686 and hydro 86 tractors

1шт.

3228133R93

SEAL KIT

KIT - service, crankshaft front oil seal (Replaces kits 3144751R92 and 3136724R94), Includes: Ref. 11 - 12

1шт.
