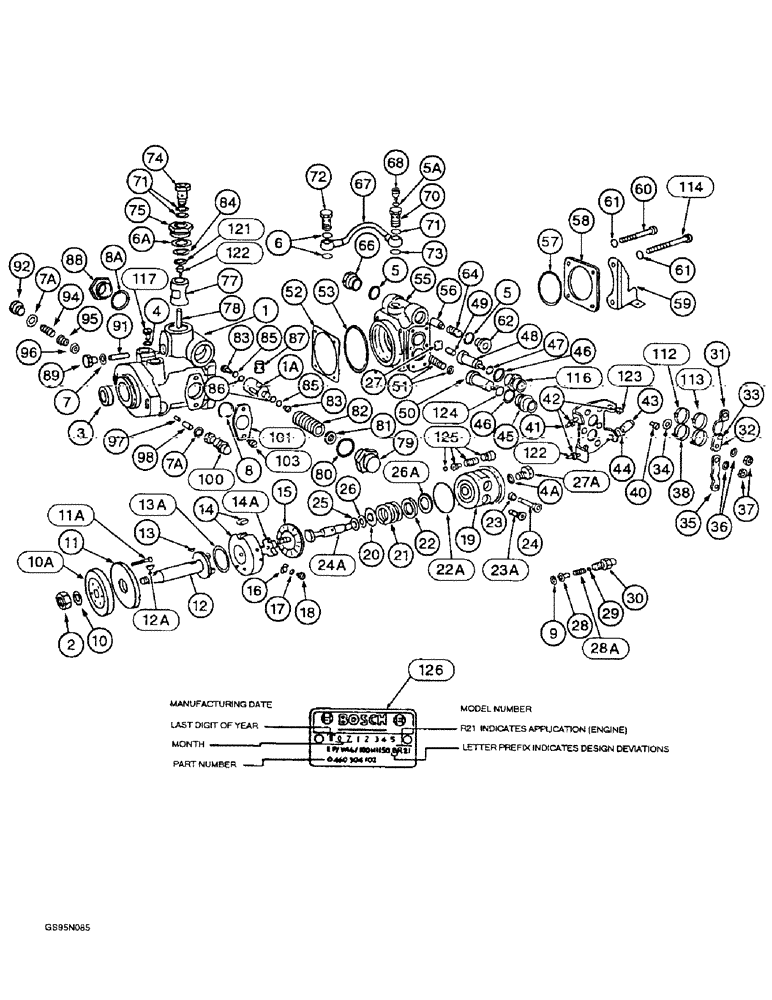

Запчасти Case IH D-310 (5-042) - FUEL INJECTION PUMP

3055975R98

FUEL INJECTION PUMP

PUMP ASSEMBLY - fuel injection, used with 706 and 756 tractors, model numbers EP/VA6/100H 1150 R21, EP/VA6/100H 1150 AR21 and EP/VA6/100H 1150 BR21, Includes: Ref. 1 - 126

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

Pump assembly 3055975R98 is no longer available. Order injection pump 3144328R91 and tubes 3144329R91, 3144331R91, 3144333R91, 3144335R91, 3144357R91, 3144339R91 and 3144657R91. See page 5-83.

1шт.

3144328R91

PUMP

ASSEMBLY - fuel injection, new, used with 706 and 756 tractors, Bosch model number EP/VA6/100H CR 21-5, no longer available (Replaces pump assembly 3055975R98), Includes: Ref. 1 - 126

1шт.

3144430R91

PUMP

ASSEMBLY - fuel injection, 616 and 622 cotton pickers with gear drive, Bosch model number EP/VA6/100H 1200 CR44-1 (Replaces Bosch model numbers EP/VA6/100H 1200 R44, EP/VA6/100H 1200 BR44 and EP/VA6/100H 1200 BR44-1), Includes: Ref. 1 - 126

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

The R44 pump versions bearing the suffix letter X are R44 pumps converted to the BR44-1 housing.

1шт.

3132606R92

PUMP

ASSEMBLY - fuel injection, new, used with 616 and 622 cotton pickers with hydrostatic transmission, Bosch model numbers EP/VA6/100H 1350 BR49, and EP/VA6/100H 1350 BR49-1, no longer used, Includes: Ref. 1 - 126

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

Used with 616 and 622 cotton pickers with hydrostatic transmission, Bosch model numbers EP/VA6/100H 1350 BR49 and EP/VA6/100H 1350 BR49-1, no longer used, order pump assembly 3144531R91, kit 3144657R91, see page 5-41, and injection tubes 3139222R11, 3139223R11, 3139224R11, 3139225R11, 3139226R11 and 3139227R11, see page 5-79.

1шт.

Order pump assembly 3144531R91, kit 3144657R91, see Figure 5-40, and injection tubes 3139222R11, 3139223R11, 3139224R11, 3139225R11, 3139226R11, and 3139227R11, See Figure 5-078

1шт.

3144531R91

PUMP

ASSEMBLY - fuel injection, new, used with 616 and 622 cotton pickers with hydrostatic transmission, Bosch model number EP/VA6/100H 1350 CR 49-1, no longer available (Replaces pump assembly 3132606R92), Includes: Ref. 1 - 126

1шт.

1

3078694R91

HOUSING

ASSEMBLY - pump, used with pump 3144328R91, Includes: Ref. 1A

1шт.

1

3078607R91

HOUSING

ASSEMBLY - pump, used with pump 3144531R91, no longer available, Includes: Ref. 1A

1шт.

1

3136259R91

HOUSING

ASSEMBLY - pump, no longer available (Replaces housing assemblies 3132279R1 and 3059000R91), Includes: Ref. 1A

1шт.

1a

NSS

NOT SOLD SEPARAT

PISTON - timing advance, order housing assembly

1шт.

2

933981R1

NUT,M12 x 1.75, Cl 5

Hex, Drive shaft M12 x 1.75, Cl 5

1шт.

3

3078355R2

OIL SEAL

- oil, drive shaft

1шт.

3059093R91

SEAL

KIT - gasket external, Includes: Ref. 4 - 9

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - gasket external, order kit 3059093R91

1шт.

4a

3132407R1

O-RING

O-RING - pump plunger plug

1шт.

5

785602R1

O-RING

- plug accumulator piston

2шт.

5a

933696R1

SEALING RING,M6 x 10 x 1

RING - vent screw, intermediate housing, 6 x 10 mm

1шт.

6

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

5шт.

6a

3078356R1

O-RING

- union adapter adjusting housing

1шт.

7

933087R2

SEALING RING,10mm ID x 13.5mm OD x 1mm Thk

- Packing, Plug advance housing M10 x 13.5 x 1

1шт.

7a

3078358R1

O-RING

- regulator valve, carrier and plug

2шт.

8

3054854R1

O-RING,2mm Thk x 20mm ID, 70 Duro

- timing window

1шт.

8a

3078357R1

O-RING

- plug advance housing, no longer available

1шт.

9

3079378R1

WASHER

- delivery valve (Replaces washer 3078362R1)

6шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 933996R1) 1/2"

1шт.

10a

3059003R91

PUMP

ROTOR - charging pump

1шт.

11

3059004R1

SUPPORT

RING - retainer support, no longer available

1шт.

11a

3132364R1

SCREW

- retainer support ring

4шт.

12

3059001R1

SHAFT

- drive, no longer available

1шт.

12a

3079101R1

WOODRUFF KEY

KEY - Woodruff, drive shaft (Replaces keys 3054301R1 and 3078371R1)

1шт.

13

3132395R1

KEY

- Woodruff, charging pump

1шт.

13a

3059006R1

WASHER

- drive shaft thrust

1шт.

14

3078478R91

RETAINER

RING - roller retainer, used with pump assembly 3144328R91

1шт.

14

3078550R91

PUMP

RING - roller retainer, used with pump assembly 3144531R91, no longer available

1шт.

14

3078345R91

INJECTION PIPE

RING - roller retainer

1шт.

14a

3059007R1

DISC

- cross type cam face, drive shaft flexible

1шт.

15

3078695R1

CAM

- face, used with pump assembly 3144328R91

1шт.

15

3078551R1

CAM

- face, used with pump assembly 3144531R91

1шт.

15

3132799R2

CAM

- face, no longer available

1шт.

16

3132598R1

INDICATOR

POINTER - timing, will work for 3059090R1

1шт.

17

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm, timing pointer

1шт.

18

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head, timing pointer

1шт.

3132276R1

BLOCK

HEAD ASSEMBLY - injection pump, used with pump assembly 3055975R98 having numbers without a letter suffix, no longer available, order head assembly 3078546R91, Includes: Ref. 19 - 26A

1шт.

3136268R1

HEAD

ASSEMBLY - injection pump, used with pump assembly 3055975R98 having numbers without a letter suffix, no longer available, order head assembly 3078546R91, Includes: Ref. 19 - 26A

1шт.

3078546R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - injection pump, used with pump assembly 3055975R98 (Replaces head assembly 3136269R1), Includes: Ref. 19 - 26A

1шт.

On orders for head assembly 3078546R91 used with pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 and letter suffix V, furnish one each of the following: head 3078546R91, rear seat 3136098R1, front seat 3136092R1, front seat 3136093R1, front seat 3136094R1, front seat 3136095R1, front seat 3136096R1, front seat 3136097R1, front seat 3136394R1, shim 3136090R1 and shim 3136091R2. Also furnish only for model number EP/VA6/100H 1150 AR21 one each of the following: s

1шт.

3136235R91

HEAD ASSEMBLY - injection pump, will work for 3136027R91, used with pump assembly 3144430R91, no longer available, Includes: Ref. 19 - 26A

1шт.

3078841R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - injection pump, used with pump assembly 3132606R92 (Replaces head assembly 3132128R1), Includes: Ref. 19 - 26A

1шт.

19

NSS

NOT SOLD SEPARAT

HEAD - order head assembly

1шт.

20

3132262R1

CUP

SEAT - plunger return spring front, .197, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44

1шт.

20

3132263R1

CUP

SEAT - plunger return spring front, .205, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44

1шт.

20

3132264R2

WASHER

SEAT - plunger return spring front, .213, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44, no longer available

1шт.

20

3132265R1

WASHER

SEAT - plunger return spring front, .220, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 with model number EP/VA6/100H 1200 R44

1шт.

20

3132266R1

CUP

SEAT - plunger return spring front, .228, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44, no longer available

1шт.

20

3132236R1

SEAT - plunger return spring front, 6.2 mm, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44, no longer available

1шт.

20

3136092R1

SEAT

- plunger return spring front, .197, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

20

3136093R1

SEAT

- plunger return spring front, .205, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

20

3136094R1

CUP

SEAT - plunger return spring front, .213, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

20

3136095R1

SEAT

- plunger return spring front, .220, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

20

3136096R1

SEAT

- plunger return spring front, .228, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1, no longer available

1шт.

20

3136097R1

SEAT

- plunger return spring front, .236, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1, no longer available

1шт.

20

3136394R1

SEAT

- plunger return spring front, 6.2 mm, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

21

3132257R1

SPRING

- plunger return

1шт.

22

3132379R1

NUT

SEAT - plunger return spring rear, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44

1шт.

22

3136098R1

SEAT

- plunger return spring rear, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3132606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

22a

3078361R1

O-RING

RING - packing, distributor head

1шт.

23

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

23a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

24

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

24a

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

25

3132387R1

SHIM

- pump plunger, used with pump assembly 3055975R98 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44, no longer available

1шт.

25

3136090R1

SPACER

SHIM - pump plunger, used with pump 3055975R98 with letter suffix V and pumps 313606R92 and 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1

1шт.

26

3136091R2

WASHER

SHIM - pump plunger, used with pump assembly 3055975R98 with letter suffix V and pump assemblies 3144430R91 and 3132606R92, order kit 3059094R93, see page 5-59

1шт.

26a

NSS

NOT SOLD SEPARAT

BEARING - thrust

1шт.

27

3132584R1

DISC

- used with pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21, no longer available

1шт.

27a

3059063R2

PLUG

- distributor head, no longer available

1шт.

28

3132248R1

VALVE

- delivery, all pump assemblies except 3132606R92

6шт.

28

3132928R1

NOZZLE CAP

VALVE - delivery, used only for improvement of delivery valve, all pump assemblies except 3132606R92

6шт.

28

3079477R1

VALVE

- delivery, pump assembly 313606R92

6шт.

28

3132932R1

VALVE

- delivery, used only for improvement of delivery valve, pump assembly 313606R92

6шт.

28a

3132408R1

SPRING

- delivery valve

6шт.

29

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- special, delivery valve spring

6шт.

30

3059067R2

HYD CONNECTOR

HOLDER - delivery valve

6шт.

31

3132380R1

LEVER

- speed control, pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21 and pump assemblies 3055975P98, 3144430R91 and 3132606R92, no longer available

1шт.

31

3136270R1

LEVER

- speed control, interchangeable with lever 3136271R1 below, pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21 and no letter suffix, no longer used, order lever 3136271R1

1шт.

31

3136271R1

LEVER

- speed control, interchangeable with lever 3136270R1 above, pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21 and no letter suffix (Replaces lever 3136270R1)

1шт.

32

3059080R1

PLATE - speed control lever, pump assembly 3055975R98 with letter suffix V and pump assemblies 3055975R98, 3144430R91 and 3132606R92, no longer available

1шт.

33

3059081R1

BOLT,M4 x 8.8mm

SCREW - speed control lever, pump assembly 3055975R98 with letter suffix V and pump assemblies 3055975R98, 3144430R91 and 3132606R92, no longer available

1шт.

892-11004

LOCK WASHER,M4

WASHER, LOCK, (Replaces washer 933994R1) M4

1шт.

34

3059076R1

WASHER

- plunger shaft control, shut-off

1шт.

35

3136270R1

LEVER

- throttle, used with pump assemblies 3144328R91 and 3144531R91

1шт.

35

3136271R1

LEVER

- throttle, used with pump assemblies 3144328R91 and 3144531R91

1шт.

35

3059077R1

LEVER

- shut-off control

1шт.

35

3059078R1

LEVER

- shut-off control

1шт.

36

492-11006

LOCK WASHER,#6

Washer, Lock, (Replaces washer 933987R1) #6

2шт.

37

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, throttle lever (Replaces washer 933988R1)

2шт.

38

3132589R1

SPRING

- speed control torsion, pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 AR21 and EP/VA6/100H 1150 BR21, pump assembly 3144430R91 having model numbers EP/VA6/100H 1200 BR44 and EP/VA6/100H 1200 BR44-1 and pump assembly 3132606R92

1шт.

39

3136110R1

PLATE

- stop, will work for 3059073R1, not shown, no longer available

1шт.

40

931320R1

SCREW,M6 x 12mm, Cl 8.8

- stop plate

4шт.

41

3059074R1

SCREW

- stop plate adjusting, pump assembly 3055975R98 having model number EP/VA6/100H 1150 R21 and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44

1шт.

41

3136136R1

SCREW

- stop plate adjusting

1шт.

Will work for 3059074R1, pump assembly 3055975R98 having model numbers EP/VA6/100H 1200 AR21 or EP/VA6/100H 1150 BR21, pump assembly 3144430R91 having model numbers EP/VA6/100H BR44 or EP/VA6/100H BR44-1, and pump assembly 3132606R92

1шт.

42

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, stop plate adjusting screw

3шт.

43

3132251R1

STOP LOCK

SCREW - stop, shut-off control plunger

1шт.

44

3079141R1

NUT

- hex, shut-off control plunger stop

1шт.

45

3059072R1

BUSHING

- control shaft, no longer available

1шт.

46

786602R1

O-RING - control plunger and throttle shaft

2шт.

47

3078363R1

O-RING

- throttle shaft, order kit 3059094R93, see page 5-59

1шт.

48

3132258R2

SHAFT

- speed control, pump assembly 3055975R98 having model number EP/VA6/100H 1150AR21 with letter suffix V and pump assemblies 3055975R98, 3055723R94 and 3132606R92

1шт.

48

3132583R1

SHAFT

- speed control, pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21 without letter suffix V, no longer available

1шт.

49

3132256R1

VALVE SPRING

SPRING - speed control shaft, no longer available

1шт.

50

3078521R1

SHAFT

- shut-off control plunger (Replaces shaft 3132260R2)

1шт.

51

3136116R91

PACKAGE, REPAIR

KIT - control plunger, pump assembly 3055975R98, no longer available

1шт.

51

3132586R1

SPRING

KIT - control plunger, pump assembly 3144430R91

1шт.

51

3136397R91

PACKAGE

KIT - control plunger, pump assembly 3132606R92

1шт.

52

3132377R1

SHIM

- pump and intermediate housing, 0.009 inch

1шт.

52

3132378R1

SHIM

- pump and intermediate housing, 0.011 inch, no longer available

1шт.

52

3059040R1

SHIM

- pump and intermediate housing, 0.008 inch

1шт.

52

3059041R1

SHIM

- pump and intermediate housing, 0.010 inch

1шт.

52

3059042R1

DISC

SHIM - pump and intermediate housing, 0.012 inch

1шт.

52

3059043R1

SHIM

- pump and intermediate housing, 0.020 inch

1шт.

52

3059044R1

SHIM

- pump and intermediate housing, 0.024 inch

1шт.

52

3059045R1

SHIM

- pump and intermediate housing, 0.039 inch

1шт.

53

3078360R1

RING

- packing, housing, order kit 3059094R93, see page 5-59

1шт.

53a

3078780R1

VALVE

- delivery, used with pump assembly 3144328R91, not shown

1шт.

53a

3079477R1

VALVE

- delivery, used with pump assembly 3144531R91, not shown

1шт.

3078778R91

PUMP

HEAD ASSEMBLY - distributor, used with pump assembly 3144328R91

1шт.

3078849R91

VALVE

HEAD ASSEMBLY - distributor, used with pump assembly 3144531R91

1шт.

3132376R91

HOUSING

ASSEMBLY - used with all pump assemblies except 3132606R92 (Replaces housing assembly 3132402R1), Includes: Ref. 55 - 56

1шт.

3132402R1

HOUSING

ASSEMBLY - used with pump assembly 3132606R92, no longer available, Includes: Ref. 55 - 56

1шт.

55

NSS

NOT SOLD SEPARAT

HOUSING - intermediate, order pump assembly

1шт.

56

NSS

NOT SOLD SEPARAT

PISTON - accumulator, order pump assembly

1шт.

57

3078364R1

O-RING

RING - packing, intermediate housing plate

1шт.

58

3059083R1

FLANGE - intermediate housing, no longer available

1шт.

59

3078570R1

BRACKET

- injection pump, will work for 3132247R1, pump assembly 3055975R98, pump assembly 3144430R91 having model number EP/VA6/100H 1200 BR44-1 and pump assembly 3132606R92 having model number EP/VA6/100H 1350 BR49-1

1шт.

59

3228735R1

SUPPORT

BRACKET - injection pump, pump 3144430R91 having model numbers EP/VA6/100H 1200 R44 or EP/VA6/100H 1200 BR44 and pump 3132606R92 having model number EP/VA6/100H 1350 BR49

1шт.

60

3132249R1

SCREW

- intermediate housing mounting, 6 mm x 70 mm, no longer available

2шт.

61

492-11006

LOCK WASHER,#6

Washer, Lock, (Replaces washer 933987R1) #6

4шт.

62

3059051R1

PLUG - accumulator spring, pump assemblies 3055975R98 having model number EP/VA6/100H 1150 R21 and 3144430R91 having model number EP/VA6/100H 1200 R44 prior to serial number 61299999, no longer available

1шт.

62

3136107R1

PLUG

- accumulator spring

1шт.

Pump assemblies 3055975R98 having model number EP/VA6/100H 1150 R21 and 3144430R91 having model number EP/VA6/100H 1200 R44 with serial number 70100000 and after, pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 AR21 or EP/VA6/100H 1150 BR21, pump assembly 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump assembly 3132606R92, no longer available

1шт.

64

3132277R1

SPRING

- accumulator piston, no longer available

1шт.

66

3059052R1

PLUG

- accumulator piston, no longer available

1шт.

67

3059085R91

TUBE

- fuel supply

1шт.

68

3132383R1

SCREW

- vent

1шт.

70

3136149R1

SCREW

- inlet union

1шт.

71

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

3шт.

72

3059086R1

BANJO BOLT

SCREW - housing inlet union, pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 and pump 3144430R91 having model number EP/VA6/100H 1200 R44

1шт.

72

3059086R1

BANJO BOLT

SCREW - hollow, housing inlet union, pump assembly 3055975R98 having model number EP/VA6/100H 1150 BR21, pump assembly 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H BR44-1 and pump assembly 3132606R92

1шт.

73

934005R1

SEALING RING,12mm ID x 18mm OD x 1.5mm Thk

Packing M12 x 18 x 1.5

3шт.

74

3132412R1

VALVE

- overflow

1шт.

74

3078534R91

VALVE

- regulator, used with pump assembly 3144328R91, no longer available

1шт.

74

3078828R1

VALVE

- regulator, used with pump assembly 3144531R91

1шт.

75

3059014R1

UNION

- adapter, no longer available

1шт.

77

3132960R1

PIN

MEMBER - timing advance rotating

1шт.

78

3059010R1

PIN

- timing adjustable connecting, short

1шт.

79

3132386R1

PLUG - advance piston spring, pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 without letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200R44 without letter suffix, no longer available

1шт.

79

3136087R1

PLUG

- advance piston spring

1шт.

Pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 with letter suffix X, pump assembly 3144430R91 having model number EP/VA6/100H 1200R44 with letter suffix X, pump assembly 3055975R98 having model number EP/VA6/100H 1150 BR21 and pump assembly 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1.

1шт.

80

3078357R1

O-RING

- advance housing plug, no longer available

1шт.

81

3059023R1

SHIM

- advance piston spring, 0.4 mm

1шт.

Pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 without letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200R44 without letter suffix, no longer available.

1шт.

81

3059024R1

SHIM

- advance piston spring, 0.3 mm

1шт.

Pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 without letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200R44 without letter suffix, no longer available.

1шт.

81

3136111R1

WASHER

SHIM - advance piston spring, 1.0 mm

1шт.

Pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 with letter suffix X, pump 3144430R91 having model number EP/VA6/100H 1200R44 with letter suffix X, pump 3055975R98 having model number EP/VA6/100H 1150 BR21, pump 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92.

1шт.

81

790783R1

WASHER

SHIM - advance piston spring, 0.5 mm

1шт.

Pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 with letter suffix X, pump 3144430R91 having model number EP/VA6/100H 1200R44 with letter suffix X, pump 3055975R98 having model number EP/VA6/100H 1150 BR21, pump 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92, no longer available.

1шт.

81

3078460R1

SHIM

- advance piston spring, 3.0 mm

1шт.

Pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 with letter suffix X, pump 3144430R91 having model number EP/VA6/100H 1200 R44 with letter suffix X, pump 3055975R98 having model number EP/VA6/100H 1150 BR21, pump 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92.

1шт.

82

3132278R1

SPRING

- advance piston, pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 without a letter suffix and pump assembly 3144430R91 having model number EP/VA6/100H 1200R44 without a letter suffix

1шт.

82

3136085R1

SPRING

- advance piston

1шт.

Pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21or EP/VA6/100H 1150 AR21 with letter suffix X, pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44 with letter suffix X, pump assembly 3055975R98 having model number EP/VA6/100H 1150 BR21, pump assembly 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump assembly 3132606R92, no longer available.

1шт.

83

931322R1

SCREW,M5 x 8mm, Cl 8.8

- advance piston stop, pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 and pump 3144430R91 having model number EP/VA6/100H 1200R44, no longer available

2шт.

84

800-2120

SNAP RING,M20, Int

RING - rotating member lock, 21 mm OD, pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 BR21 and serial number 80100000 and after, pump 3144430R91 with serial number 80100000 and after and pump 3132606R92

2шт.

85

892-11005

LOCK WASHER,M5

WASHER, LOCK, , Pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 and pump 3144430R91 having model number EP/VA6/100H 1200R44 M5

2шт.

86

3132290R91

PACKAGE

KIT - shim

1шт.

Pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 AR21 and pump 3055723R94 having model number EP/VA6/100H 1200R44, includes (2) 0.2 mm shim 3059016R1, (2) 0.3 mm shim 3059017R1, (2) 0.5 mm shim 3059018R1 and (1) 1.0 mm shim 3059019R1, no longer available.

1шт.

87

3132259R1

SLIDE

BUSHING - advance piston connecting

1шт.

88

3059020R1

PLUG

- advance piston, no longer available

1шт.

89

3059015R1

PLUG

- advance linkage

1шт.

Pump 3055975R98 having model number EP/VA6/100H 1150 R21 and serial number prior to 71299999, pump 3144430R91 having model number EP/VA6/100H 1200 R44 and serial number prior to 71299999 and pump 3055975R98 having model number EP/VA6/100H 1150 AR21, no longer available.

1шт.

89

3132578R1

PLUG

- advance linkage

1шт.

Pump 3055975R98 having model number EP/VA6/100H 1150 R21 and serial number 80100000 and after, pump 3144430R91 having model number EP/VA6/1200 R44 and serial number 80100000 and after, pump 3055975R98 having model number EP/VA6/100H 1150 BR21, pump 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92.

1шт.

91

3132925R1

PIN

- timing advance connecting, long

1шт.

Pump 3055975R98 having model number EP/VA6/100H 1150 R21 and serial number prior to 71299999, pump 3144430R91 having model number EP/VA6/100H 1200 R44 and serial number prior to 71299999 and pump 3055975R98 having model number EP/VA6/100H 1150 AR21.

1шт.

91

3132961R1

PIN

- timing advance connecting, long

1шт.

Pump 3055975R98 having model number EP/VA6/100H 1150 R21 and serial number 80100000 and after, pump 3144430R91 having model number EP/VA6/1200 R44 and serial number 80100000 and after, pump 3055975R98 having model number EP/VA6/100H 1150 BR21, pump 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92.

1шт.

92

3059038R1

PLUG

- regulator valve spring

1шт.

94

3132280R1

SPRING

- regulator valve, no longer available

1шт.

95

3132246R1

STOP

- regulator piston

1шт.

96

3078359R1

O-RING

- bushing, regulator valve, order kit 3059094R93

1шт.

97

3059026R1

PISTON - regulator valve, 0.348 inch, no longer available

1шт.

97

3059027R1

PISTON - regulator valve, 0.350 inch, no longer available

1шт.

97

3059028R1

PISTON - regulator valve, 0.352 inch, no longer available

1шт.

97

3059029R1

PISTON - regulator valve, 0.354 inch, no longer available

1шт.

97

3059030R1

PISTON - regulator valve, 0.356 inch, no longer available

1шт.

97

3059031R1

PISTON - regulator valve, 0.358 inch, no longer available

1шт.

97

3059032R1

PISTON - regulator valve, 0.360 inch, no longer available

1шт.

97

3059033R1

PISTON - regulator valve, 0.362 inch, no longer available

1шт.

97

3059034R1

PISTON

- regulator valve, 0.364 inch, no longer available

1шт.

97

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

PISTON - regulator valve, 0.342 inch, no longer available

1шт.

97

3059067R1

HOLDER

PISTON - regulator valve, 0.344 inch

1шт.

97

3059068R1

SHAFT

PISTON - regulator valve, 0.347 inch

1шт.

97

3059069R1

PISTON

- regulator valve, 0.366 inch

1шт.

97

3059070R1

SPARE PART

PISTON - regulator valve, 0.368 inch, no longer available

1шт.

97

3059071R1

PISTON - regulator valve, 0.370 inch

1шт.

97

3059073R1

PISTON - regulator valve, 0.374 inch, no longer available

1шт.

97

3059074R1

SCREW

PISTON - regulator valve, 0.376 inch, no longer available

1шт.

97

3059075R1

SPRING

PISTON - regulator valve, 0.378 inch, no longer available

1шт.

98

3132255R1

SPRING

- regulator piston

1шт.

98a

3078608R1

SPRING

- advance piston, used with pump 3144328R91, not shown (Replaces spring 3078490R1)

1шт.

98a

3078565R1

SPRING

- advance piston, used with pump 3144531R91, not shown

1шт.

100

3059099R91

VALVE

CARRIER - regulator valve

1шт.

101

3059091R1

PLATE

COVER - timing window

1шт.

103

684858C1

SCREW

- timing window cover (Replaces screw 931327R1)

2шт.

112

3132588R1

SPRING

- speed control torsion, pump 3055975R98 having model numbers EP/VA6/100H 1150 AR21 or EP/VA6/100H 1150 BR21, pump 3144430R91 having model numbers EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92

1шт.

113

3059075R1

SPRING

- speed control torsion, pump assembly 3055975R98 having model number EP/VA6/100H 1150 R21 and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44, no longer available

1шт.

114

3132250R1

SCREW

- intermediate housing mounting, 6 mm x 75 mm

2шт.

116

3059072R1

BUSHING

- control plunger shaft, pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21 with letter suffix V and pump assemblies 3055975R98, 3144430R91 and 3132606R92, no longer available

1шт.

116

3132587R1

BUSHING

- control plunger shaft, pump assembly 3055975R98 having model number EP/VA6/100H 1150 AR21 without letter suffix

1шт.

117

931328R1

SCREW,M6 x 8mm, Cl 4.8

- drive shaft arresting

1шт.

Pump assembly 3055975R98 having model number EP/VA6/100H 1150 R21 and serial number prior to 51300000 and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44 and serial number prior to 51300000, no longer available.

1шт.

120

3132883R1

PLUG

PIN - timing advance, rotating member, used with pump 3144531R91

1шт.

Pump assembly 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 BR21 and serial number 80100000 and after, pump assembly 3144430R91 with serial number 80100000 and after and pump assembly 3132606R92, no longer available.

1шт.

121

3132884R1

WASHER

- timing advance, rotating member, pump 3055975R98 having model numbers EP/VA6/100H 1150 R21 or EP/VA6/100H 1150 BR21 and serial number 80100000 and after, pump 3144430R91 with serial number 80100000 and after and pump 3132606R92

1шт.

122

3059074R1

SCREW

- stop plate adjusting

1шт.

123

3059074R1

SCREW

- advance piston stop, pump assembly 3055975R98 having model number EP/VA6/100H 1150 R21 and pump assembly 3144430R91 having model number EP/VA6/100H 1200 R44

1шт.

123

3132885R1

BOLT

- stop plate adjusting, pump 3055975R98 having model number EP/VA6/100H 1150 AR21 or EP/VA6/100H 1150 BR21, pump 3144430R91 having model number EP/VA6/100H 1200 BR44 or EP/VA6/100H 1200 BR44-1 and pump 3132606R92

1шт.

124

3078363R1

O-RING

- control plunger shaft, order kit 3059094R93

1шт.

125

3078365R91

KIT - relief valve, no longer available

1шт.

126

3136147R1

NAMEPLATE - pump assembly, no longer available

1шт.

3059094R93

GASKET KIT

KIT - gasket, internal

1шт.

3078772R91

PACKAGE

KIT - control plunger spring, used with pump assembly 3144531R91

1шт.
