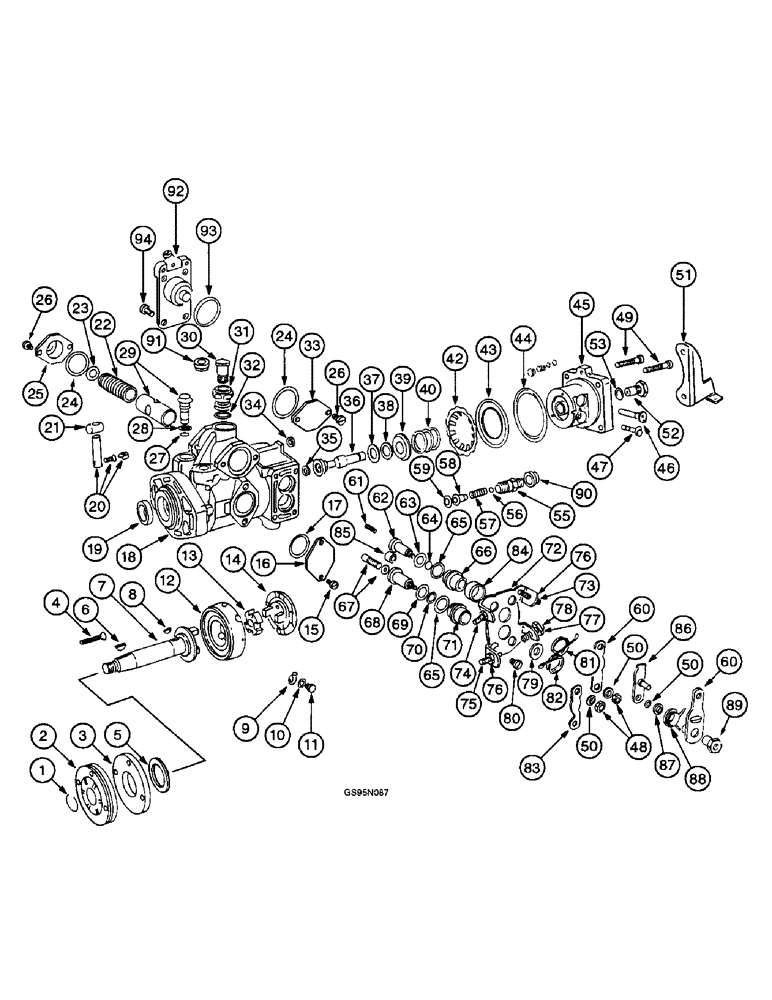

Запчасти Case IH D-310 (5-060) - FUEL INJECTION PUMP

735129C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1934017C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3144531R91

PUMP

ASSEMBLY - fuel injection, new, used with 616, 622 cotton pickers, 95 cotton harvesters and 782 cotton pickers, model number EP/VA6/100H 1350CR49-1, no longer available, Includes: Ref. 1 - 94

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

735130C91

PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1934019C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3218337R91

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, used with 715 combines, model number EP/VA6/100H 1200CR191, no longer available, Includes: Ref. 1 - 94

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

735132C91

REMAN-INJECTION PUMP

PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly

1шт.

1934023C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3218725R91

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, used with 686 tractors model number EP/VA6/100H 1000CRV3616-1, no longer available, Includes: Ref. 1 - 94 & Timing Advance Unit Plate Assembly

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

735131C91

PUMP ASSEMBLY - fuel injection, remanufactured (North America only), component parts do not apply to the remanufactured assembly, no longer available

1шт.

1934021C1

CORE-INJECTION PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

3218726R91

PUMP, FUEL INJECTION

PUMP ASSEMBLY - fuel injection, new, used with hydro 86 tractors, model number EP/VA6/100H 1200CRV3615-1, no longer available, Includes: Ref. 1 - 94

1шт.

To determine the service parts, it is necessary to know the Bosch model number and in some cases, in addition, the manufacturing date. This information is indicated on the Bosch nameplate of the injection pump.

1шт.

933981R1

NUT,M12 x 1.75, Cl 5

Hex M12 x 1.75, Cl 5

1шт.

825-1408

NUT,M8, Cl 8

WASHER - hex, 8 mm - 1.25 (Replaces washer 933984R1)

1шт.

1

3078474R1

RING

- retaining

1шт.

2

3078475R91

PUMP

- charge

1шт.

3

3078476R1

RING

- charge pump support

1шт.

4

3078477R1

BOLT,CSK

SCREW - retaining support ring

2шт.

5

3078479R1

THRUST WASHER

- roller retaining thrust

1шт.

6

3078371R1

WOODRUFF KEY

KEY - Woodruff, drive shaft, used with pump assembly 3144531R91, no longer available

1шт.

6

3079101R1

WOODRUFF KEY

KEY - Woodruff, drive shaft, used with pump assemblies 3218337R91, 3218725R91 and 3218726R91

1шт.

7

3078473R1

SHAFT

- drive

1шт.

8

3132395R1

KEY

- Woodruff, charging pump

1шт.

9

3132598R1

INDICATOR

POINTER - timing

1шт.

10

933982R1

WAVE WASHER,M4.3 ID x 9 OD x .5 Thk

WASHER - lock, 4 mm

1шт.

11

931326R1

SCREW,Slotted Cheese , M4 x 0.7 x 5mm, Cl 8.8

- pan head

1шт.

12

3078550R91

PUMP

RING - roller retainer, no longer available

1шт.

13

3059007R1

DISC

- cross type cam face

1шт.

14

3078551R1

CAM

- face

1шт.

15

931330R1

SCREW,M6 x 1 x 12mm, Cl 8.8

- machine, window cover, used with pump assemblies 3144531R91 and 3218337R91

2шт.

15

628-6012

BOLT,Hex, M6 x 12mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 12 mm, class 10.9, Window cover, Used with pump assemblies 3218725R91 and 3218726C91

2шт.

16

3078486R1

COVER

- timing window

1шт.

17

3078485R1

RING

O-RING - window cover

1шт.

18

3078607R91

HOUSING

- pump, used with pump assembly 3144531R91, no longer available

1шт.

18

3078472R91

HOUSING

- pump, used with pump assembly 3218337R91

1шт.

18

3079192R91

CASE

HOUSING - pump, used with pump assembly 3218725R91

1шт.

18

3078580R91

HOUSING

- pump, used with pump assembly 3218726R91

1шт.

19

3078355R2

OIL SEAL

- oil, drive shaft

1шт.

20

3078481R1

PIN

- automatic advance connecting

1шт.

21

3078482R1

SLIDE

R - advance piston

1шт.

22

3078565R1

SPRING

- advance piston, used with pump assembly 3144531R91

1шт.

22

3078560R1

SPRING

- advance piston, used with pump assemblies 3218337R91 and 3218726R91

1шт.

22

3079106R1

VALVE SPRING

SPRING - advance piston, used with pump assembly 3218725R91

1шт.

23

3078528R1

THRUST WASHER

- thrust, 0.6 mm

1шт.

23

3078529R1

THRUST WASHER

- thrust, 0.8 mm

1шт.

23

3078530R1

THRUST WASHER

- thrust, 1.0 mm

1шт.

23

3078531R1

THRUST WASHER

- thrust, 1.2 mm

1шт.

23

3078532R1

THRUST WASHER

- thrust, 1.4 mm

1шт.

23

3078533R1

THRUST WASHER

- thrust, 3.0 mm

1шт.

24

3078488R1

RING

O-RING - advance housing

2шт.

25

3078489R1

COVER

PLATE - advance housing

1шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, Used with pump 3144531R91 (Replaces screws 934271R1 and 931585R1)

4шт.

26

439189C1

SCREW

- advance housing plate, right-hand, pan head 6 mm x 15 mm, used with pumps 3218337R91 and 3218726R91

2шт.

26

3079353R1

SCREW

- advance housing plate, right-hand, used with pump 3218725R91

2шт.

26

627-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 10.9, Full Thd

- hex, full threads, 6 - 1.0 x 16 mm, class 10.9, Advance housing plate, LH, Used with pumps 3218337R91, 3218725R91 and 3218726R91 (Replaces screw 931585R1)

2шт.

27

3078535R1

O-RING

- regulator valve

1шт.

28

3078358R1

O-RING

- regulator valve

1шт.

29

3078828R91

VALVE - regulator, used with pump 3144531R91, no longer available

1шт.

29

3078614R91

VALVE

- regulator, used with pumps 3218337R91 and 3218725R91 (Replaces valve 3078534R91)

1шт.

3079096R1

WASHER, LOCK

WASHER - spring, no longer available

1шт.

29

3078847R91

VALVE - regulator, used with pump 3218726R91, no longer available

1шт.

30

3059086R1

BANJO BOLT

SCREW - hollow, inlet union pump housing

1шт.

31

3078484R1

VALVE

- overflow

1шт.

32

3078483R1

O-RING,2.5mm Thk x 15mm ID

- overflow valve, union adapter advance housing

1шт.

33

3078486R1

COVER

- timing window, advance housing left-hand

1шт.

34

3078487R1

O-RING

PACKING - ring

1шт.

35

3078761R2

WASHER

- plunger, 1.80 mm

1шт.

35

3078763R2

WASHER

- plunger, 1.84 mm

1шт.

35

3078765R2

WASHER

- plunger, 1.88 mm

1шт.

35

3078767R2

WASHER

- plunger, 1.92 mm

1шт.

35

3078769R2

WASHER

- plunger, 1.96 mm

1шт.

35

3078771R2

WASHER

- plunger, 2.00 mm

1шт.

35

3078773R2

WASHER

- plunger, 2.04 mm

1шт.

35

3078775R2

WASHER

- plunger, 2.08 mm

1шт.

35

3078777R2

WASHER

- plunger, 2.12 mm

1шт.

35

3078779R2

WASHER

- plunger, 2.16 mm

1шт.

35

3078781R2

WASHER

- plunger, 2.20 mm

1шт.

35

3078783R2

WASHER

- plunger, 2.24 mm

1шт.

35

3078785R2

WASHER

- plunger, 2.28 mm

1шт.

35

3078787R2

WASHER

- plunger, 2.32 mm

1шт.

35

3078789R2

WASHER

- plunger, 2.36 mm

1шт.

35

3078791R2

WASHER

- plunger, 2.40 mm

1шт.

35

3078793R2

WASHER

- plunger, 2.44 mm

1шт.

35

3078795R2

WASHER

- plunger, 2.48 mm

1шт.

35

3078797R2

WASHER

- plunger, 2.52 mm, no longer available

1шт.

35

3078799R2

WASHER

- plunger, 2.56 mm

1шт.

35

3078801R2

WASHER

- plunger, 2.60 mm

1шт.

35

3078803R2

WASHER

- plunger, 2.64 mm, no longer available

1шт.

35

3078805R2

WASHER

- plunger, 2.68 mm

1шт.

35

3078807R2

WASHER

- plunger, 2.72 mm

1шт.

35

3078809R2

WASHER

- plunger, 2.76 mm

1шт.

35

3078811R2

WASHER

- plunger, 2.80 mm

1шт.

35

3078813R2

WASHER

- plunger, 2.84 mm

1шт.

35

3078815R2

WASHER

- plunger, 2.88 mm

1шт.

3078849R91

VALVE

HEAD ASSEMBLY - distributor, used with pump assembly 3144531R91, Includes: Ref. 36 - 47

1шт.

3079116R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - distributor, used with pump assembly 3218337R91, no longer available, Includes: Ref. 36 - 47

1шт.

3079187R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - distributor, used with pump assembly 3218725R91, Includes: Ref. 36 - 47

1шт.

3079197R91

DISTRIBUTOR HEAD

HEAD ASSEMBLY - distributor, used with pump assembly 3218726R91, no longer available, Includes: Ref. 36 - 47

1шт.

36

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

37

3078540R1

WASHER

- plunger, 1.35 mm

1шт.

37

3078541R1

WASHER

- plunger, 1.60 mm

1шт.

37

3078542R1

WASHER

- plunger, 1.85 mm

1шт.

38

3078537R1

WASHER

- plunger, 1.65 mm

1шт.

38

3078571R1

WASHER

- plunger, 2.85 mm

1шт.

39

3078516R1

SEAT

- plunger spring

1шт.

40

3078515R1

SPRING

- plunger

1шт.

42

3078576R1

SPRING WASHER

- spring

1шт.

43

3078578R1

FILTER, FUEL

FILTER - fuel

1шт.

44

3078366R1

O-RING

- distributor head

1шт.

45

NSS

NOT SOLD SEPARAT

HEAD - distributor, order head assembly

1шт.

46

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

47

NSS

NOT SOLD SEPARAT

VALVE - order head assembly

1шт.

48

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, throttle and control, one used with pumps 3218337R91, 3218725R91 and 3218726R91, two used with pump 3144531R91 (Replaces washer 933988R1)

1шт.

49

3078600R1

SCREW

- pump to distributor head

4шт.

50

492-11006

LOCK WASHER,#6

Washer, Lock, , Throttle and control, (Replaces washer 933987R1) #6

2шт.

51

3078570R1

BRACKET

- injection pump, used with pump 3144531R91 only

1шт.

52

3078514R1

PLUG

- distributor head

1шт.

53

3132407R1

O-RING

O-RING - plug, packing, distributor head

1шт.

55

3059067R2

HYD CONNECTOR

HOLDER - delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91

1шт.

56

3059066R1

WASHER,2.5mm ID x 7.3mm OD x 1.5mm Thk

- special, delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91

1шт.

57

3132408R1

SPRING

- delivery valve, used with pump 3144531R91

6шт.

57

3132382R1

SPRING

- delivery valve, used with pumps 3218337R91 and 3218725R91

6шт.

57

3079189R1

SPRING

- delivery valve, used with pump 3218726R91

1шт.

58

3079477R1

VALVE

- delivery, used with pump 3144531R91 (Replaces valve 3136104R1)

6шт.

58

3132240R1

VALVE

- delivery, used with pump 3218337R91

6шт.

58

3078798R1

VALVE

- delivery, used with pump 3218725R91

6шт.

58

3079198R1

VALVE

- delivery, used with pump 3218726R91

6шт.

59

3079378R1

WASHER

- delivery valve, four used with pump 3218337R91, six used with pumps 3144531R91, 3218725R91 and 3218726R91 (Replaces washer 3078337R1)

1шт.

60

3136270R1

LEVER

- throttle, used with pump 3144531R91, no longer used, order lever 3136271 below

1шт.

60

3136271R1

LEVER

- throttle, used with pump 3144531R91 (Replaces lever 3136270R1)

1шт.

60

3136399R1

LEVER

- throttle, used with pumps 3218337R91, 3218725R91 and 3218726R91

1шт.

61

3078555R1

SPRING

- throttle, used with pumps 3144531R91, 3218725R91 and 3218726R91

1шт.

61

3079095R1

SPRING

- throttle, used with pump 3218337R91

1шт.

62

3078517R1

SHAFT

- throttle, used with pump 3144531R91

1шт.

62

3078605R1

SHAFT

- throttle, used with pumps 3218337R91, 31218725R91 and 3218726R91

1шт.

63

3078519R1

WASHER

- throttle shaft

1шт.

64

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

65

785602R1

O-RING

- control plunger and throttle

2шт.

66

3078556R1

BUSHING

- throttle shaft

1шт.

67

3078772R91

PACKAGE

KIT - control plunger, used with pump 3144531R91

1шт.

67

3078610R91

KIT

- control plunger, used with pump 3218337R91

1шт.

67

3078563R91

KIT

- control plunger spring, used with pumps 3218726R91 and 3218725R91

1шт.

68

3078521R1

SHAFT

- control plunger

1шт.

69

3078523R1

WASHER

- control plunger shaft

1шт.

70

3078363R1

O-RING

- control plunger shaft

1шт.

71

3078524R1

BUSHING

- control plunger shaft

1шт.

72

3078557R1

PLATE

- stop, used with pump 3144531R91

1шт.

72

3078525R1

PLATE

- stop, used with pump 3218337R91, no longer available

1шт.

72

3079183R1

PLATE

- stop, used with pumps 3218725R91 and 3218726R91

1шт.

73

3132885R1

BOLT

- stop

1шт.

74

3136136R1

SCREW

- stop

1шт.

75

3059074R1

SCREW

- stop

1шт.

76

825-1406

NUT,M6, Cl 8

WASHER - hex, 6 mm - 1, stop screw (Replaces washer 933988R1)

3шт.

77

3079141R1

NUT

- hex, used with pumps 3144531R91 and 3218337R91 (Replaces nuts 3059096R1 and 3079120R1)

1шт.

77

3079144R91

PACKAGE

NUT - hex, used with pumps 3218725R91 and 3218726R91

1шт.

78

3132251R1

STOP LOCK

SCREW - stop

1шт.

79

3059076R1

WASHER

- plunger shaft control

1шт.

80

931320R1

SCREW,M6 x 12mm, Cl 8.8

- stop plate, countersunk

4шт.

81

3132588R1

SPRING

- throttle shaft torsion

1шт.

82

3132589R1

SPRING

- control plunger torsion

1шт.

83

3059077R1

LEVER

- control plunger

1шт.

83

3059078R1

LEVER

- control plunger

1шт.

84

3136143R1

SLEEVE

- throttle shaft

1шт.

85

3136142R1

O-RING

SEAL - ring

1шт.

86

3136134R1

LEVER

- used with pumps 3218337R91, 3218725R91 and 3218726R91, no longer available

1шт.

86

3136135R1

LEVER

- used with pumps 3218337R91, 3218725R91 and 3218726R91, no longer available

1шт.

87

3136262R1

THRUST WASHER

WASHER - distance, used with pumps 3218337R91, 3218725R91 and 3218736R91

1шт.

88

3136260R1

SPRING

- torsion, used with pumps 3218337R91, 3218725R91 and 3218726R91

1шт.

89

3136261R1

NUT

- used with pumps 3218337R91, 3218725R91 and 3218726R91

1шт.

90

3079097R2

CAP

- protection, used with pumps 3218337R91, 3218725R91 and 3218726R91

4шт.

91

3078942R1

PLATE

CLOSING - used with pumps 3218337R91, 3218725R91 and 3218726R91

1шт.

92

3078527R1

IGNITION SWITCH

SOLENOID - fuel, used with pump 3218337R91 only

1шт.

93

3078559R1

RING

- seal, used with pump 3218337R91 only, no longer available

1шт.

94

684858C1

SCREW

- pan head, 6 mm x 10 mm (Replaces screw 931327R1)

4шт.

934160R1

WASHER

- flat, used with pump 3218337R91 only, no longer available

4шт.

3079351R1

COVER

PLATE ASSEMBLY - timing advance unit, used with pump 3218725R91 only, Includes: Spacer Listed Below

1шт.

3079352R1

SPACER - timing advance unit, no longer available

1шт.

199024A1

GASKET KIT

KIT - fuel injection pump gasket (Replaces kit 3078526R91), Includes: Parts Listed Below

1шт.

785602R1

O-RING

- control plunger

2шт.

3078354R1

O-RING,2mm Thk x 6.5mm ID

- throttle shaft

1шт.

3078358R1

O-RING

- regulator valve

1шт.

3078363R1

O-RING

- fuel injection pump

1шт.

3078366R1

O-RING

- distributor head

1шт.

3078483R1

O-RING,2.5mm Thk x 15mm ID

- overflow valve

1шт.

3078485R1

RING

O-RING - window cover

1шт.

3078487R1

O-RING

- packing

1шт.

3078488R1

RING

O-RING - advance housing

2шт.

3078535R1

O-RING

- regulator valve

1шт.
