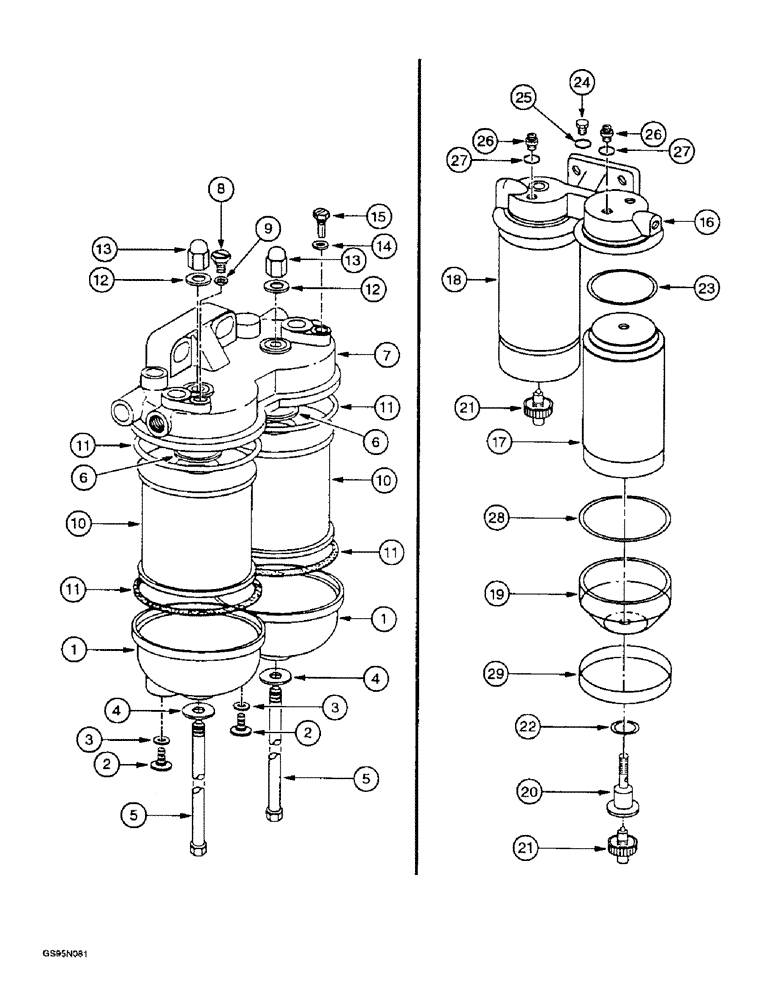

Запчасти Case IH D-310 (5-104) - FUEL FILTERS, SPIN-ON TYPE

3144306R91

FILTER

ASSEMBLY - final fuel (Replaces filter assembly 3144227R91), Used with Bosch Model CR Pumps, All Machines Except 782 Combines, Includes: Ref. 1 - 15 & Packing Rings Listed Below

1шт.

1

3144481R1

BOWL

- fuel, metal (Replaces glass bowl 3144478R1)

2шт.

1

3144478R1

FILTER BOWL

- fuel, no longer used, order bowl 3144481R1, item 1

2шт.

2

3144475R1

SCREW

- drain

2шт.

3

3144476R2

RING,7.2mm ID x 12mm OD x 1.5mm Thk

- packing

2шт.

4

3144480R1

RING,8.1mm ID x 16mm OD x 2mm Thk

- packing, used with glass bowl 3144478R1

2шт.

4

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

- packing, used with metal bowl 3144481R1

4шт.

5

3144479R1

BOLT,Hex, M8 x 148mm, Cl 8.8

- hollow, used with glass bowl 3144478R1

2шт.

5

814-8140

BOLT,Hex, M8 x 1.25 x 140mm, Cl 8.8

- fuel bowl, hex, 8 - 1.25 x 120 mm, Used with metal bowl 3144481R1 (Replaces bolt 314482R1)

2шт.

6

3144779R1

RING

- packing

2шт.

7

3144484R1

HEAD

- filter

1шт.

8

3144780R1

SCREW

- air vent

1шт.

9

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - vent screw, packing (Replaces ring 757760R1)

1шт.

10

NSS

NOT SOLD SEPARAT

ELEMENT - filter order kit 3044506R93 below

2шт.

11

3144472R1

RING

- packing

4шт.

12

3144474R1

RING,8mm ID x 13mm OD x 1.5mm Thk

- packing

2шт.

13

3144473R1

CROWN NUT

- crown

2шт.

14

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

1шт.

15

712616R1

PLUG,Hex, M14 x 1.5

- Filler, Locking Hex, M14 x 1.5

1шт.

3144472R1

RING

- packing

2шт.

3144779R1

RING

- packing

2шт.

3044506R93

FILTER, FUEL

KIT - filter service, Includes: Ref. 10, also includes two washers (Replaces kit 3144477R92)

2шт.

3228272R91

FILTER ASSY

FILTER ASSEMBLY - final fuel, Used on BR Pumps (Replaces filter assembly 3132461R91), Includes: Ref. 16 - 29

1шт.

16

3132491R1

FILTER HEAD

HEADER - filter

1шт.

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

(Replaces screw 179838) Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, (Replaces washer 103321) 3/8"

2шт.

17

3136187R91

FILTER

KIT - primary fuel filter, no longer available, order kit 1967094C1, Includes: Ref. 18 & Packing Ring

1шт.

17

1967094C1

FUEL FILTER

KIT - primary fuel filter, Includes: Ref. 18 & Packing Ring

1шт.

18

3132428R2

FUEL FILTER,Single pkg qty. For multi pkg [qty.10] order 3132428R2MP

ELEMENT - fuel filter

2шт.

3132191R1

RING

- packing

1шт.

19

3132197R1

BOWL

- transparent, order element 3132428R2, item 3

1шт.

20

3132194R1

SCREW,M12 x 1.5 x 68mm

- hollow, used with bowl 3132197R1, item 4

1шт.

21

3228407R1

PLUG

- drain, 7.8 mm (Replaces plug 3132196R1)

2шт.

22

3132192R1

RING

- packing, used with bowl 3132197R1, item 4

1шт.

23

3132193R1

SEALING RING,62.4mm ID x 70mm OD x 4mm Thk

RING - packing

2шт.

24

712616R1

PLUG,Hex, M14 x 1.5

- Filler, Order element 3132428R2 (Replaces plug 3055648R1) Hex, M14 x 1.5

2шт.

25

933610R1

SEALING RING,M14 x 18 x 1.8

Packing M14 x 18 x 1.8

2шт.

26

3144780R1

SCREW

- air vent

2шт.

27

933696R1

SEALING RING,M6 x 10 x 1

RING, 6 x 10 mm - vent screw, packing (Replaces ring 787599R1)

2шт.

28

3132191R1

RING

- packing, used with bowl 3132197R1, item 4

1шт.

29

3132493R1

RING

- used with bowl 3132197R1, item 4

1шт.
