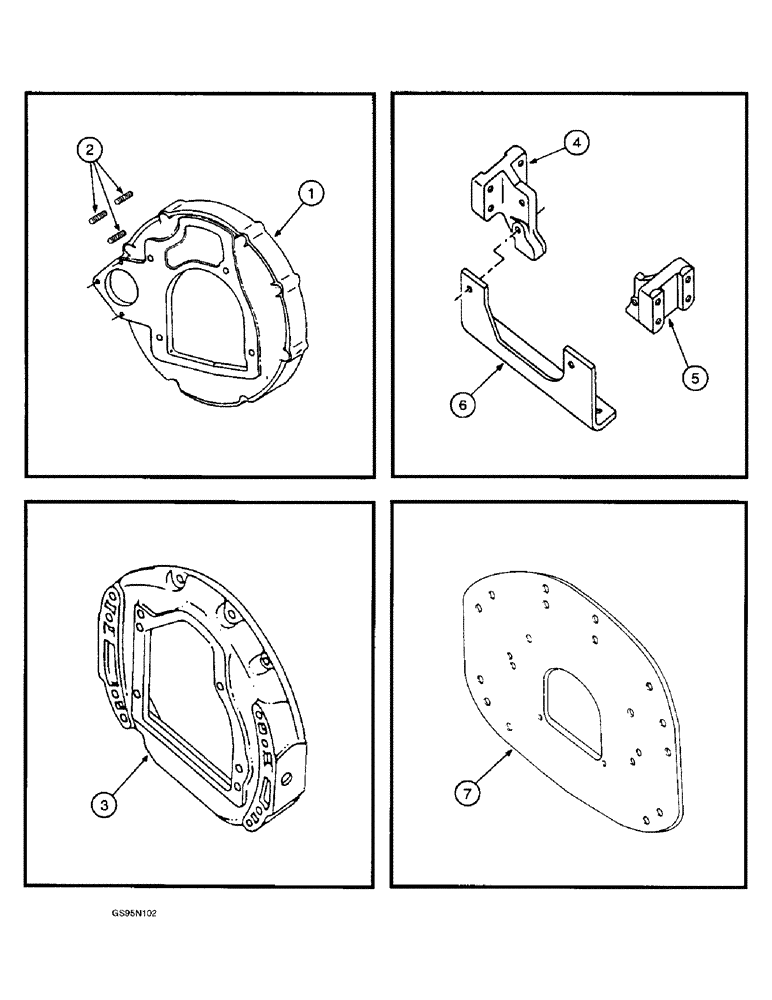

Запчасти Case IH D-310 (5-138) - FLYWHEEL HOUSING & ENGINE SUPPORT

1

3132699R31

CASE

HOUSING ASSEMBLY - flywheel, 715 Combines, Includes: Ref. 2

1шт.

2

715065R1

STUD

- housing, flywheel, no longer available

3шт.

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

(Replaces bolt 179885) Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

3

3055976R2

CASE

HOUSING - flywheel, no longer available, 706 & 756 Tractors

1шт.

413-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- hex, 1/2 NC x 1-3/8 inch (Replaces bolt 179884)

4шт.

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 103323) 1/2"

4шт.

4

400380R1

SUPPORT

- engine, front left-hand, 706 & 756 Tractors, no longer available

1шт.

326-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 8

- hex, 5/8 NC x 2-1/2 inch, grade 8 (Replaces screw 20665R1)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

1шт.

5

400381R1

SUPPORT

- engine, front right-hand, no longer available

1шт.

25511R1

BOLT,Hex, 5/8" - 11 x 4 1/4", Gr 8

SCREW - hex, 5/8 NC x 2-1/2 inch (Replaces screw 206655R1)

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

1шт.

6

396805R1

SUPPORT - engine mounting bracket, 616 & 622 Cotton Pickers, 95 Cotton Harvesters, no longer available

1шт.

396804R1

BOLT - engine mounting bracket, no longer available

2шт.

326-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 8

(Replaces screw 223441) Hex, 5/8"-11 x 3 1/4", G8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, (Replaces washer 103325) 5/8"

1шт.

7

395532R2

LARGE PLATE

PLATE - engine rear support

1шт.

445000

SCREW - hex, 1/2 NC x 1-1/4 inch, no longer used

4шт.

96-11053

WASHER,17/32" x 1 1/16" x .095", HDN

- flat, 17/32 x 1-1/16 x 3/32 inch (Replaces washer 58516H)

4шт.
