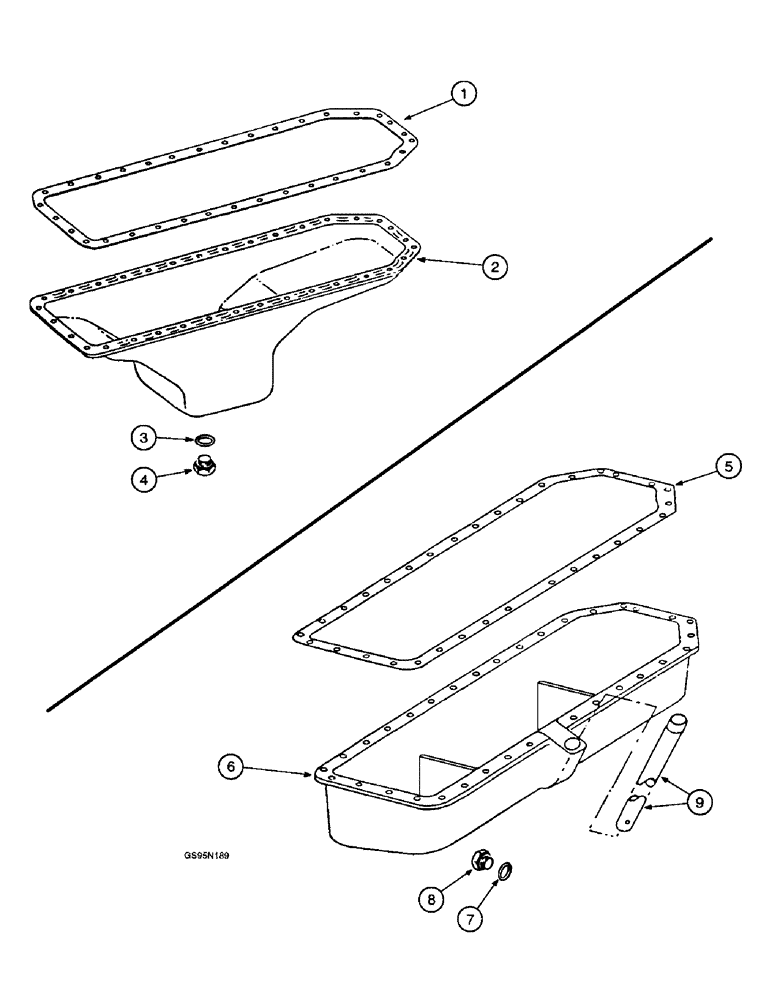

Запчасти Case IH D-360 (9B-06) - CRANKCASE OIL PAN, 766 TRACTORS AND 866 TRACTORS, 453 COMBINES

1

671825C4

GASKET

- oil pan, crankcase, 766 & 866 Tractors

1шт.

2

671824C91

PAN

- crankcase oil, no longer available, 766 & 866 Tractors

1шт.

677490C1

SCREW

- oil pan, 766 & 866 Tractors

34шт.

3

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, 766 & 866 Tractors

1шт.

4

688067C1

PLUG

- crankcase oil pan drain, 766 & 866 Tractors

1шт.

5

671825C3

GASKET

- oil pan, crankcase, 453 Combines

1шт.

6

683171C91

PAN - crankcase oil, no longer available, 453 Combines

1шт.

690358C1

SCREW

- hex, 5/16 NC x 1 inch, includes conical washer, 453 Combines

33шт.

7

59658D

WASHER,22.62mm ID x 32.54mm OD x 1.72mm Thk

GASKET - oil pan drain plug, 453 Combines

1шт.

8

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

- hex socket, 1/2 inch PT, crankcase oil pan drain (Replaces plug 444631), 453 Combines

1шт.

9

680907C1

TUBE - oil filler, 453 Combines

1шт.
