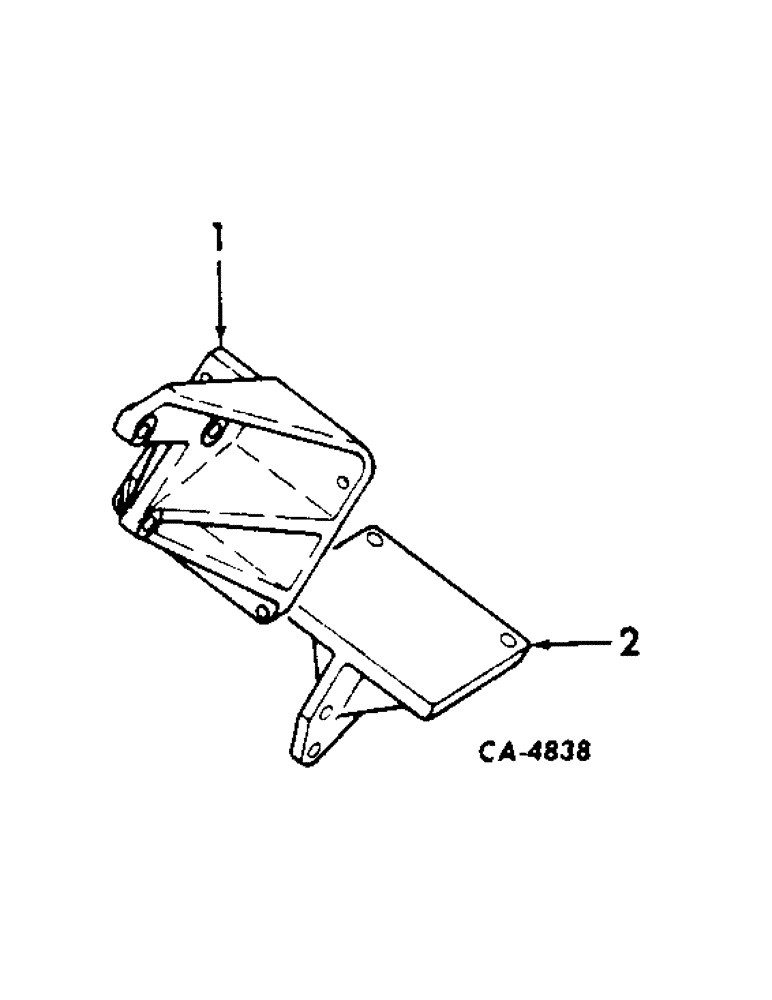

Запчасти Case IH V-800 (B-34) - COMPRESSOR MOUNTING BRACKET AND BASE

1

449624C2

BRACKET, compressor mounting side

1шт.

24844R1

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 8

1шт.

25784R1

BOLT,Hex, 3/8" - 16 x 4 1/4", Gr 8

SCREW, 3/8-16 x 4-1/4 phc hex-hd cap

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc hardened

6шт.

25522R1

NUT,3/8"-16, G8

3/8-16 phc hex.

3шт.

2

449625C1

BASE, compressor mounting lower

1шт.

25500R1

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 8

SCREW, 3/8-16 x 3-1/4 phc hex-hd cap

2шт.

25896R1

WASHER,13/32" x 13/16" x .09", HDN

13/32 x 13/16 x .089 phc

1шт.

253729R1

SPACER

1шт.
