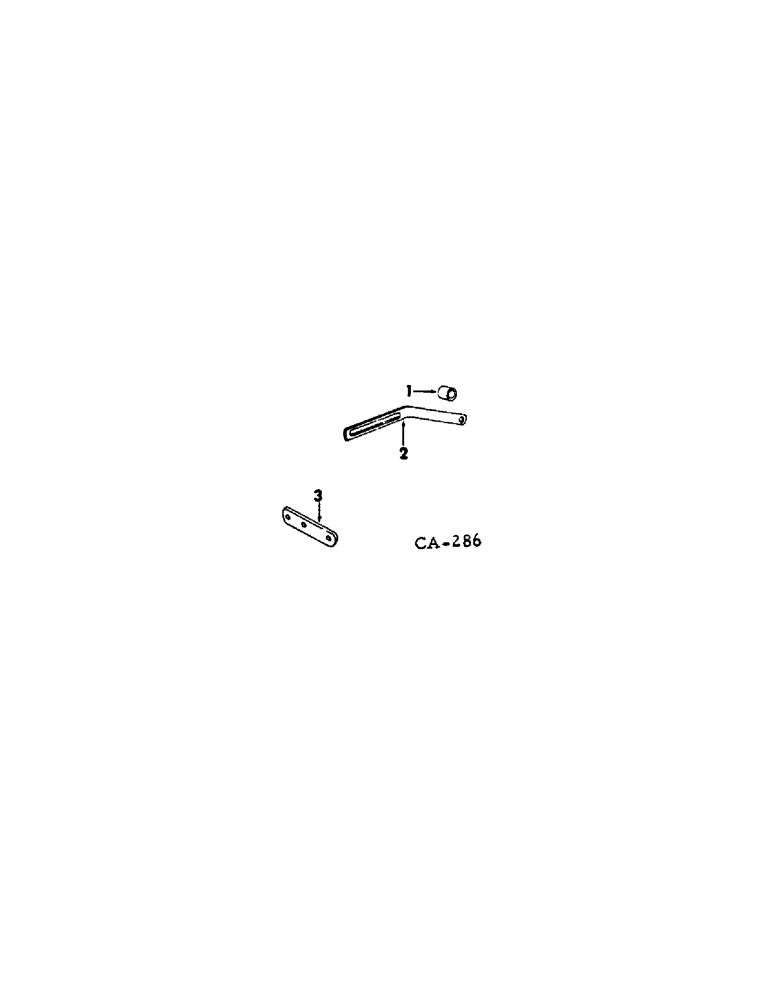

Запчасти Case IH C-282 (C-20[A]) - GENERAL MOUNTING 403 HILLSIDE COMBINES W/SERIAL NO. 940 AND BELOW AND 503 COMBINES W/SERIAL NO. 3250 AND BELOW

1

371108R1

SPACER,3/8" Pipe x .844"

generator brace, 503 LP gas combines

1шт.

2

367250R1

BRACE, generator, 403 LP gas and gasoline engine combines and 503 gasoline engine combines

1шт.

179850

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

3/8 x 2-3/4 cap screw

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

2

371107R2

SUPPORT

BRACE, generator, 503 LP gas engine combines

1шт.

186283

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

SCREW, 3/8 x 3-1/2 cap

1шт.

3

367661R1

BRACKET, generator

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
