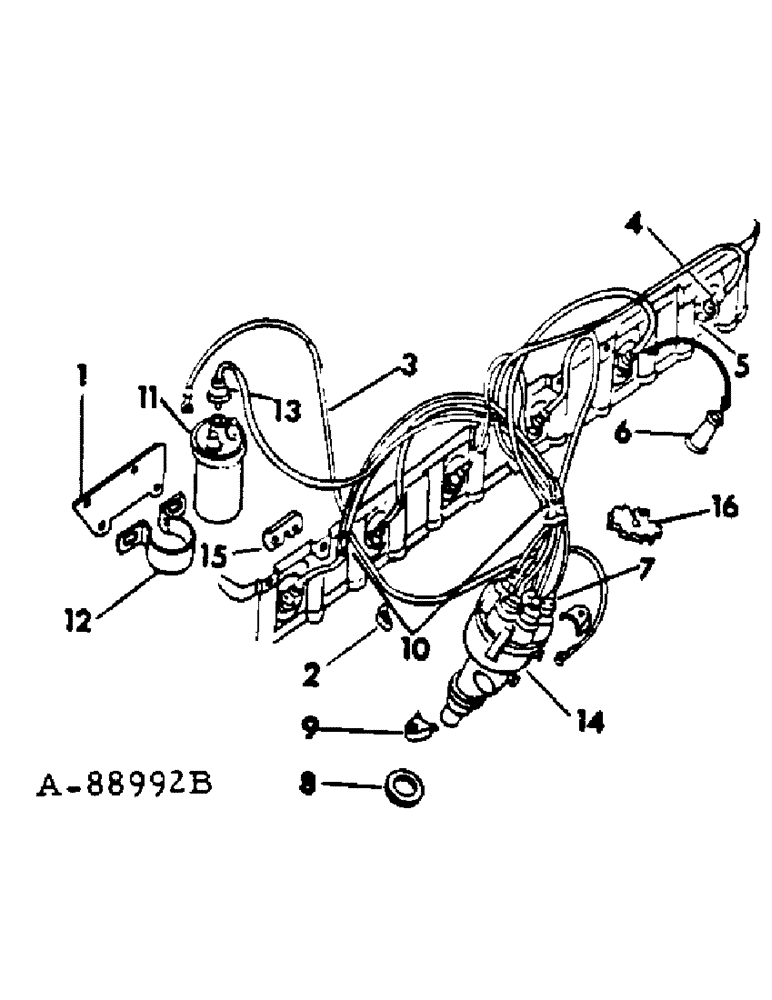

Запчасти Case IH C-301 (E-20) - SPARK PLUGS, COIL, CABLES AND DISTRIBUTOR

1

370534R11

BRACKET ASSY, ignition coil

1шт.

179852

BOLT

SCREW, 7/16-14 x 1/2 hex-hd cap

2шт.

2

370535R1

CLIP

coil to distributor cable

1шт.

386871R1

WASHER, cable clip

1шт.

3

368267R91

CABLE

ASSY, coil to distributor primary

1шт.

4

RD18Y

SPARK PLUG

W/GASKET, 37762H, light service, Champion, gasoline engines only, not used with combines or cotton pickers

6шт.

4

RD15Y

SPARK PLUG

W/GASKET 37762H, moderate service, Champion

6шт.

4

18R52

SPARK PLUG W/GASKET 37762H, moderate service, Prestolite

6шт.

4

RD6

SPARK PLUG

W/GASKET 37762H, heavy service, Champion, gasoline engies only

6шт.

5

37762H

GASKET

spark plug

6шт.

6

371430R1

INSULATOR

spark plug terminal, optional w/438502C1

6шт.

6

438502C1

BOOT

INSULATOR, spark plug, optional w/371430R1

6шт.

7

251553R1

BOOT

NIPPLE, distributor cap terminal

7шт.

8

353936R2

GASKET

distributor

1шт.

9

353937R1

CLIP

CLAMP, distributor

2шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

407488R1

KIT,Spark Plug Wire

PACKAGE, spark plug cable service, engines w/serial number 19928 and below, consists of (6) spark plub cables (NSS), (1) coil to distributor cable (NSS), (7) nipples (NSS), (9) terminals (NSS), (1) strap, lock

1шт.

10

70213C91

PACKAGE

spark plug cable, engines w/serial number 19929 and above, consists of (6) cables (NSS), (2) cables (NSS), (1) retainer 536582R1, (4) retainers 531981R1, (6) insulators 371430R1

1шт.

11

396546R93

KIT

PACKAGE, ignition coil service, consists of (1) clamp (NSS), (1) coil (NSS), (1) nipple 372875R1, (2) nut 120614, (2) washer 120217

1шт.

11

396547R93GV

COIL

Value, Ignition Coil Kit

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

2шт.

120614

NUT,Hex, #10 - 32

NUT, #10-32

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

95-11034

WASHER,1/4"

.344 x .688 x .051 pln

2шт.

177056

HUB

SCREW, no. 10NF x 1-1/2 r/hds tap

1шт.

12

CLAMP, ignition coil, Prestolite, furnish ignition coil service package 396546R93

1шт.

13

372875R1

NIPPLE, LUBE

NIPPLE, coil terminal

1шт.

14

DISTRIBUTOR ASSY, for components see list of part under details of distributor

1шт.

15

531981R1

RETAINER, spark plug, 2 wire

4шт.

16

536582R1

RETAINER, spark plug, 7 wire

1шт.
