(55.015.AC) - ENGINE, SENSOR

Запчасти Case IH F2CFE613A B004 (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS

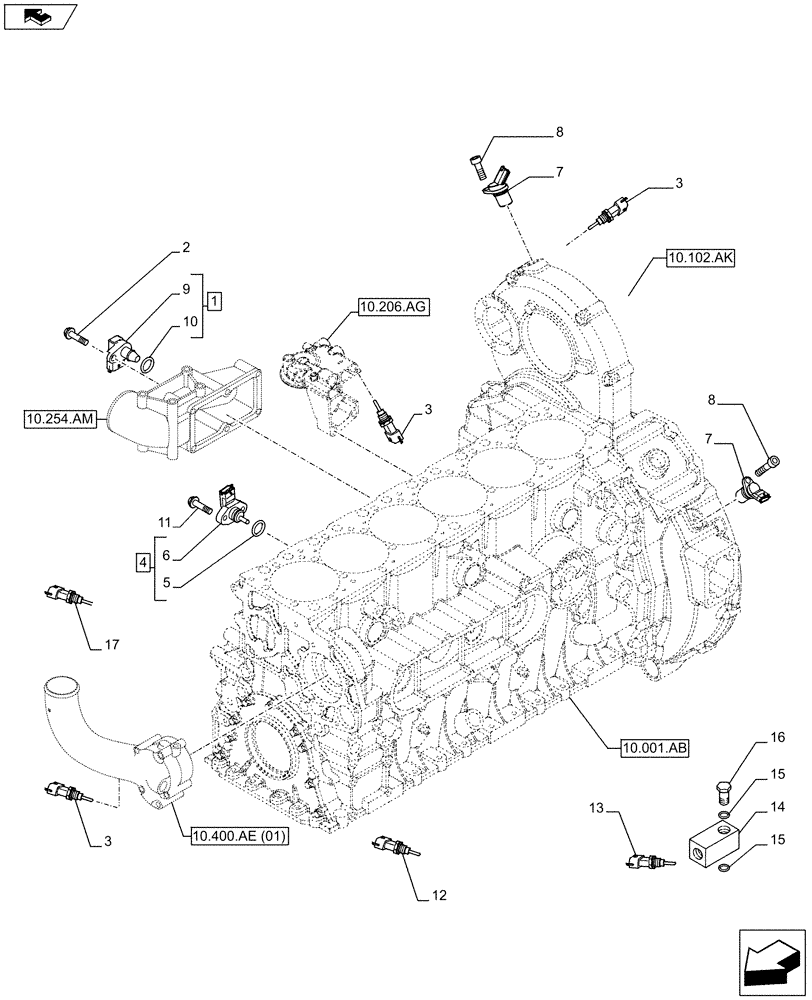

Схема запчастей Case IH F2CFE613A B004 - (55.015.AC) - ENGINE, SENSOR (55) - ELECTRICAL SYSTEMS
9
3
16
15
10.400.ae (01)
17
10.206.ag
home
7
2
12
1
14
4
10.102.ak
6
11
15
10
3
7
10.254.am
10.001.ab
13
5
3
8
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

504372225

SENSOR,Temperature / Pressure

Air pressure and temperature, ASSY, Incl 9, 10

1шт.

2

2853118

BOLT,Hex, M6 x 1 x 18mm

1шт.

3

82017881

SENSOR

Water / Fuel / Oil temperature

2шт.

4

504358206

Oil pressure and temperature, ASSY, Incl 5, 6

SWITCH,Pressure

1шт.

5

4895477

O-RING,2.62mm Thk x 13.94mm ID

1шт.

6

NSS

NOT SOLD SEPARAT

Sensor, Incl in 4

1шт.

7

504096645

TRANSMITTER

Rotational speed engine sensor

2шт.

8

16689024

SCREW,M16 x 12mm

2шт.

9

NSS

NOT SOLD SEPARAT

Sensor, Incl in 1

1шт.

10

42546555

O-RING

1шт.

11

16585870

SCREW,Hex, M6 x 20mm

2шт.

12

5801567639

SENSOR

Fuel filter pressure switch 1,5BAR

1шт.

13

504364902

SENSOR

Blow - by pressure

1шт.

14

5801494046

SUPPORT

1шт.

15

99489017

GASKET,9.9mm ID x 20mm OD x 2.5mm Thk

2шт.

16

99469255

PLUG

1шт.

17

5801376024

SENSOR

Pressure, Exhaust manifold

1шт.
