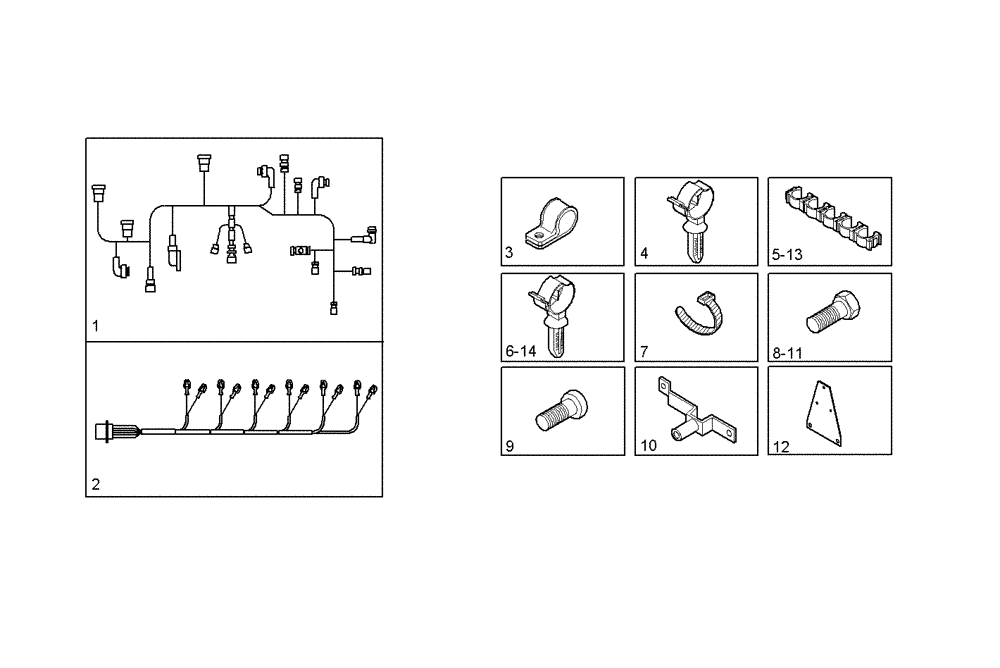

Запчасти Case IH F3BE0684E B003 (1730.091) - ENGINE CABLE

1

504074269

WIRE/CABLE

1шт.

2

504060641

ELECTRIC CABLE

WIRE/CABLE, FOR INJECTORS

1шт.

3

10450990

CLAMP,26mm, Coat, 9mm Bolt Hole, P Type

PIPE CLIP

2шт.

4

99455033

CLAMP

CLIP

3шт.

5

500306941

CLAMP

SPRING CLAMP

1шт.

6

504000061

COLLAR

CLIP

1шт.

7

42099097

CABLE TIE

CABLE STRAP

6шт.

8

16592225

BOLT,M8 x 55mm

HEXAGON BOLT, M8X55 MM

1шт.

9

16689424

SCREW,M6 x 30mm

SOCKET-HEAD SCREW, M6X30 MM

4шт.

10

500371778

BRACKET

FASTENING BRACKET

1шт.

11

2853970

BOLT

HEXAGON BOLT, M6X10 MM

2шт.

12

504067009

BRACKET

RETAINER

1шт.

13

500306941

CLAMP

SPRING CLAMP

1шт.

14

504000063

COLLAR

CLIP

1шт.
