(10.105.02) - CONNECTING ROD (2859354)

Запчасти Case IH F4CE9484L J603 (10.105.02) - CONNECTING ROD (2859354) (10) - ENGINE

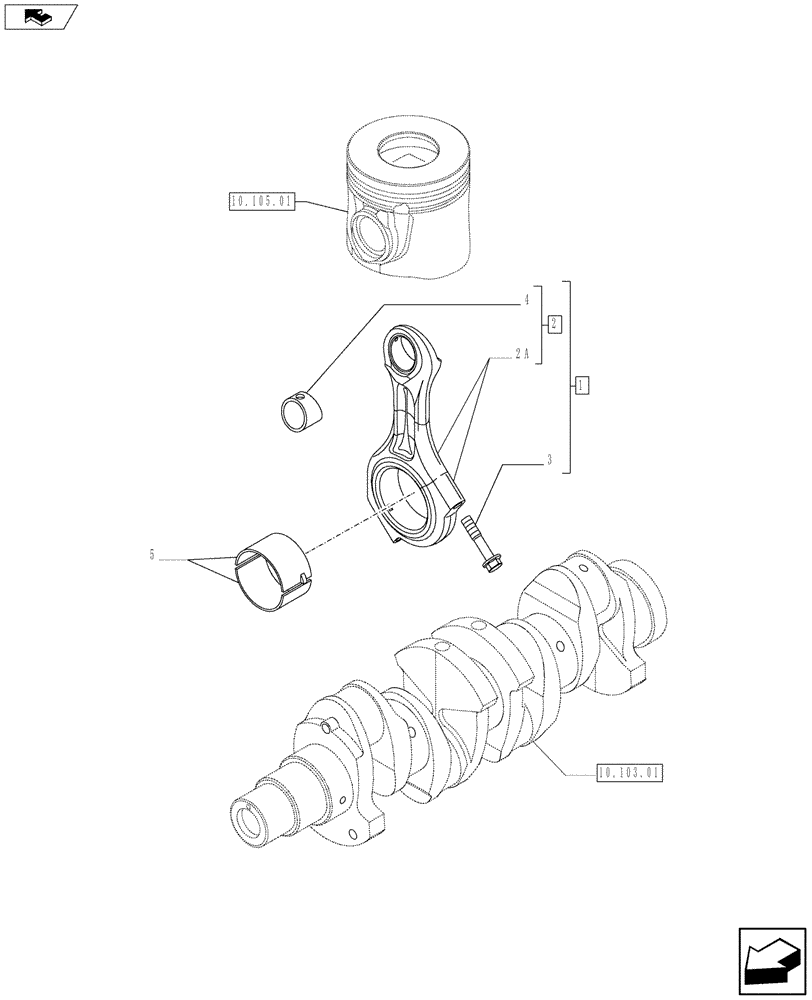

Схема запчастей Case IH F4CE9484L J603 - (10.105.02) - CONNECTING ROD (2859354) (10) - ENGINE
3
2
10.105.01
10.103.01
2a
home
5
4
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

2831298

CONNECTING ROD

ASSY

4шт.

2831298R

REMAN-CONNECTING ROD

F4CE9484L*J603 ENGINE 5801477620 - 84465253

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2831298R

REMAN-CONNECTING ROD

F4DFE413B*A002 ENGINE 5801436438 - 84265768 , (T4060V ),(FARMALL 105N Upgrade Special)

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4895747

CONNECTING ROD

ASSY

1шт.

2831298R

REMAN-CONNECTING ROD

FARMALL 105N , T4060V ,F4CE9484L*J603 ENGINE 5801477620 - 84465253 Reman For New P/N 4895747

1шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2a

NSS

NOT SOLD SEPARAT

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

2шт.

4

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

5

2856309

CRANKSHAFT BEARING

4шт.

5

4892715

BEARING LINER

BEARING, CON. ROD

4шт.
