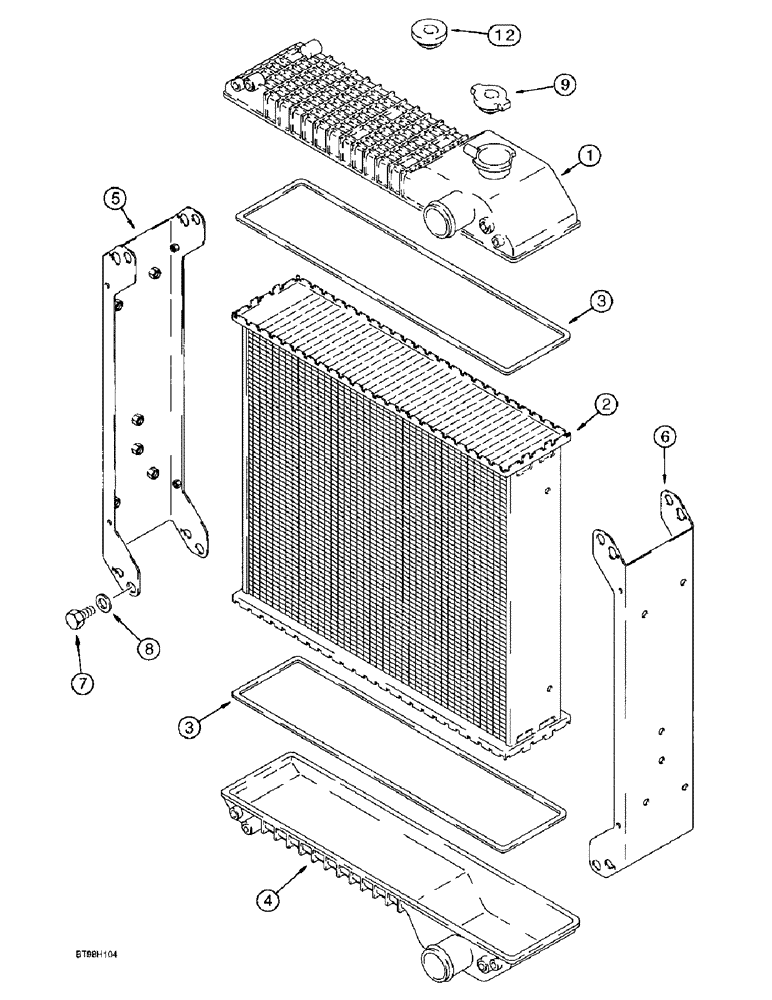

Запчасти Case IH 4391TA (2-04[A]) - RADIATOR ASSEMBLIES, 4391TA UNITS (02) - ENGINE

239739A1

RADIATOR

ASSEMBLY - engine coolant, heavy duty, 9.4 fins per inch

1шт.

1

175161A1

TANK

TANK - upper

1шт.

2

257434A1

CORE

CORE - radiator, 5 row

1шт.

3

175163A1

GASKET,3.3mm Thk

- core, upper and lower

2шт.

4

175162A1

RESERVOIR

TANK - lower

1шт.

5

175164A1

SUPPORT

BRACKET - left-hand, radiator

1шт.

6

175165A1

SUPPORT

BRACKET - right-hand, radiator

1шт.

7

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

8шт.

9

A170241

RADIATOR CAP

CAP, RADIATOR, Filler, 15 psi, not used in this application, use 253858A1 radiator cap, item 12

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - foam, side channel brackets, not shown

2шт.

11

NSS

NOT SOLD SEPARAT

SEAL - foam, corners, side channel brackets, not shown

4шт.

12

253858A1

PLUG

CAP - radiator, non-opening

1шт.

226586A1

PACKAGE,SERVICE

KIT - gasket, includes (1) 175163A1 gasket and instructions

2шт.

8

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.
