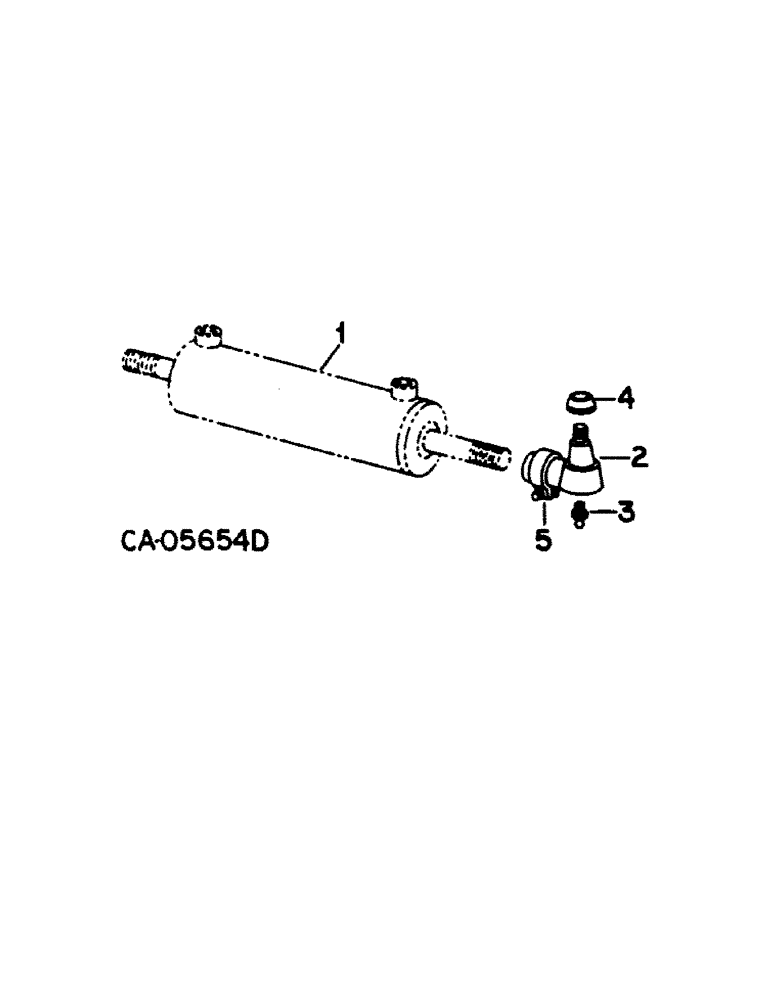

Запчасти Case IH 1420 (10-31) - HYDRAULICS, STEERING CYLINDER, WITH POWER GUIDE WHEELS (07) - HYDRAULICS

1

127913C92

CYLINDER

ASSY, steering, Includes: nut

1шт.

174763C1

FLANGE NUT,Flg, USR, 5/8"-12

5/8 flange lock, for service parts refer to cyl-1 section B

1шт.

73661C92

SEAL KIT

KIT, cylinder service

1шт.

2

186140C91

BALL JOINT

SOCKET ASSY, end, Includes: nut, pin and Ref. nos. 4 and 5

2шт.

427646

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF slt type 5

1шт.

137204

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1 1/2"

1шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

4

110373R1

DUST CAP

SEAL, end socket

2шт.

5

446308C91

CLAMP

ASSY, socket end

2шт.
