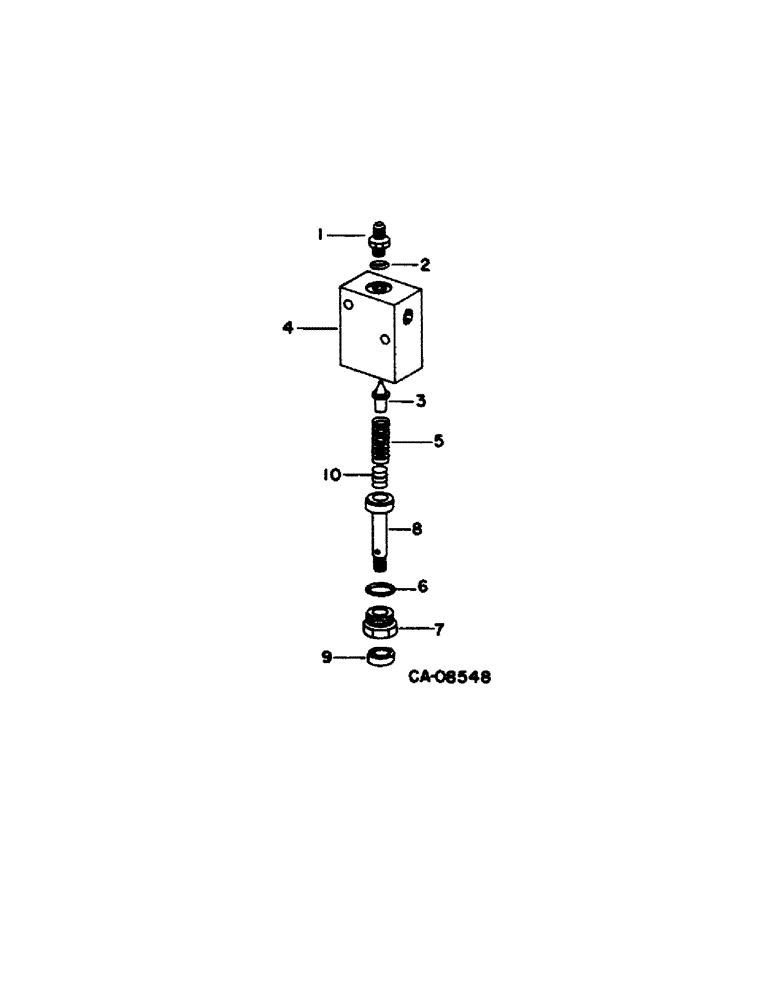

Запчасти Case IH 1420 (10-34[A]) - HYDRAULICS, FOOT-N-INCH VALVE (07) - HYDRAULICS

1

398709R1

SEAT

poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6, Valve seat

1шт.

3

398710R1

VALVE POPPET

VALVE, poppet

1шт.

4

BODY, valve, not serviced separately, order valve assy, 398705R91

1шт.

5

398731R1

SPRING

valve

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

398707R1

GUIDE

valve spring stop

1шт.

8

398708R1

STOP

valve

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

10

530575R91

SHIM KIT

PACKAGE, relief valve shim, consists of (4) shim .005 (NSS), (4) shim .007 (NSS), (2) shim .020 (NSS), (1) shim .042 (NSS)

1шт.
