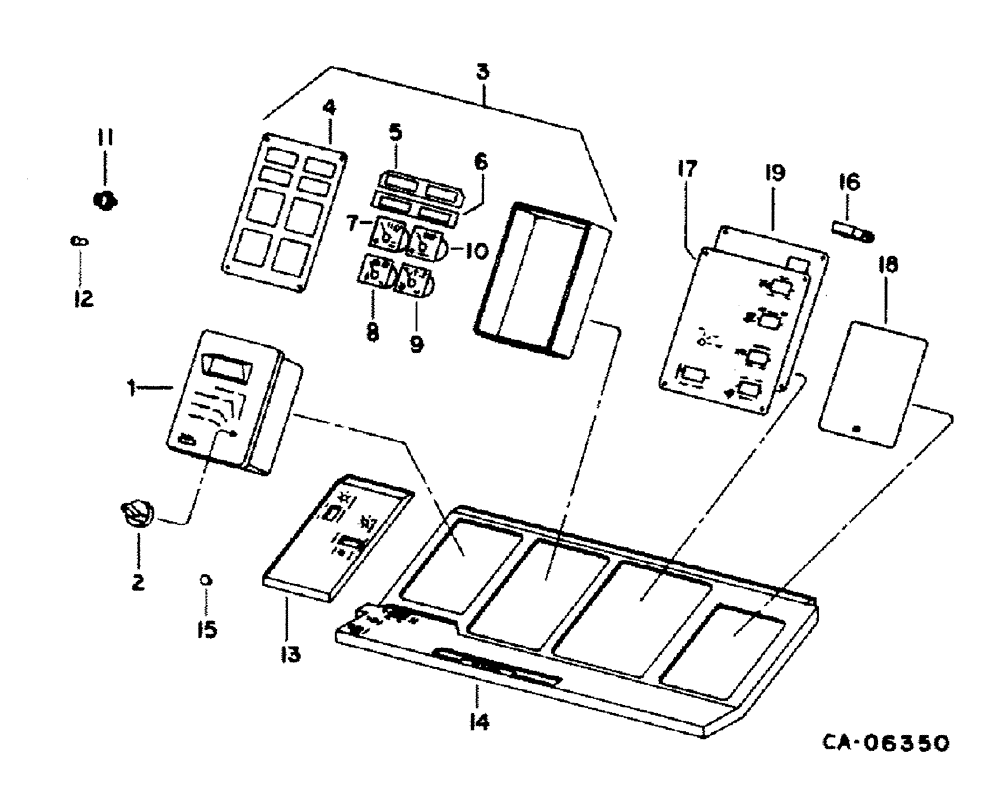

Запчасти Case IH 1420 (11-01) - INSTRUMENTS, INSTRUMENTS AND GAUGES Instruments

1

245256C91

TACHOMETER

SYSTEM, multi-position, replaces R187512C91, Includes: screw

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc o/hdcr tap

1шт.

2

196980C1

KNOB

multi-position tachometer, Includes: screw

1шт.

192208

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW, no. 8 x 3/16 c/pt znp hdl/s set

1шт.

3

198067C91

ELECTRICAL GAUGE

GAUGE ASSY, cluster, Includes: screw and Ref. nos. 4 thru 12

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc o/hdcr tap

4шт.

4

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

5

187596C1

LENS

warning lights, for oil pressure, brake, temp, and volts

1шт.

6

187597C1

LENS

warning lights, for shaker drive and elevator drive

1шт.

7

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

8

121607C1

METER

VOLTMETER

1шт.

9

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

10

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

11

121611C1

SOCKET

ASSY, lamp

8шт.

12

20627R1

BULB,C2F, #194, 14V

no. 194

8шт.

13

1301223C3

COVER

right console switch support, Includes: screw

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc o/hdcr tap

1шт.

14

1301222C4

COVER

right console, Includes: screw

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc o/hdcr tap

1шт.

15

183617C1

PLUG

RH console

1шт.

ref #15 (P/N 183617C1)- PLUG

1шт.

15

353404

PLUG, header height and auto reel potentiometer hole, replaces 187982C1 & 117675C1

4шт.

15

353408

PLUG, potentiometer calibration, replaces 472429C1

1шт.

ref #15 (P/N 353408) - PLUG.

1шт.

16

1301238C1

PLUG

auto header control box and remote fan speed control, Includes: screw

2шт.

156664

SCREW,Cross Oval Hd, #6 - 32 x 5/8"

1шт.

17

1301226C2

BAR

right console insert, Includes: screw

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 phc o/hdcr tap

1шт.

18

187573C1

COVER

fuse panel, Includes: screw

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 phc o/hdcr tap

1шт.

19

1301227C1

PLATE

right console insert

1шт.
