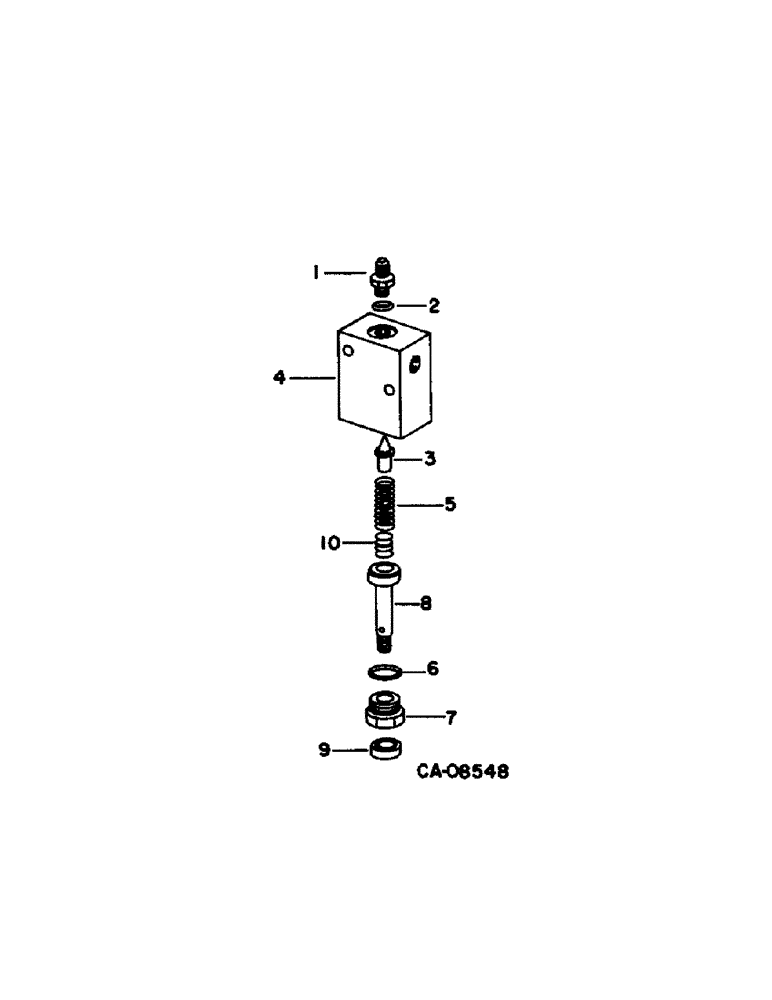

Запчасти Case IH 1470 (10-58[A]) - HYDRAULICS, FOOT-N-INCH VALVE (07) - HYDRAULICS

398705R91

VALVE

ASSY, foot-n-inch

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 type 1

1шт.

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

3/8 flange lock

1шт.

1

398709R1

SEAT

poppet valve

1шт.

2

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6, Valve seat

1шт.

3

398710R1

VALVE POPPET

VALVE, poppet

1шт.

4

NSS

NOT SOLD SEPARAT

BODY, valve, order valve assy

1шт.

5

398731R1

SPRING

valve

1шт.

6

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

7

398707R1

GUIDE

valve spring stop

1шт.

8

398708R1

STOP

valve

1шт.

9

398701R91

OIL SEAL,8.26mm ID x 19.15mm OD x 6.5mm Thk

oil

1шт.

10

530575R91

SHIM KIT

PACKAGE, relief valve shim, consists of (4) shim .005 (NSS), (4) shim .007 (NSS), (2) shim .020 (NSS), shim .042 (NSS)

1шт.
