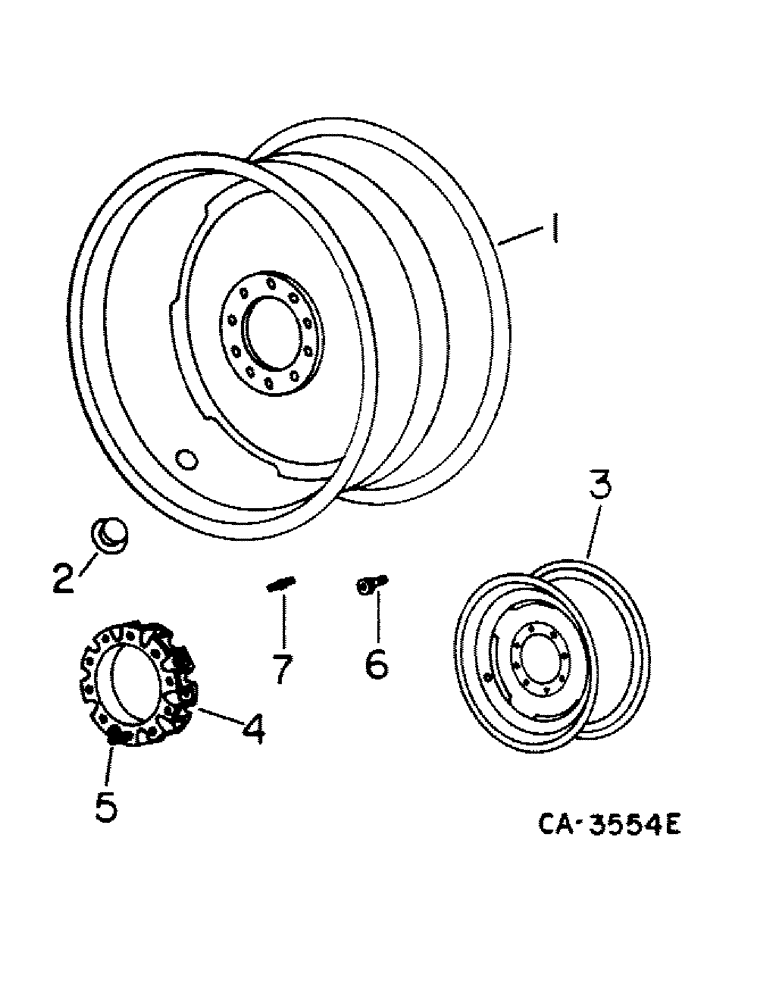

Запчасти Case IH 1440 (15-01) - WHEEL AND TRACTION, MAIN AND STEERING WHEEL RIMS AND DISC Wheels & Traction

1

193599C1

WHEEL ASSY.

WHEEL ASSY, 26 x DWH 20 drive or

2шт.

1

188792C1

WHEEL ASSY.

WHEEL ASSY, 26 x DWH 20 drive or

2шт.

1

1312997C1

RIM

WHEEL ASSY, 26 x DWH 20 drive, for use with 23.16-26 tires

2шт.

1

196196C2

WHEEL

ASSY, 34 x DW 20 drive, for use w/23.1-34 8 PR R2 tires

2шт.

1

193666C1

WHEEL

ASSY, 32 x DW 21 drive, for use w/24.5-32 tires

2шт.

1

196197C1

WHEEL ASSY.

WHEEL ASSY, 26 x DWH 25 drive, for use w/28L-26 tires

2шт.

2

383697R1

PLUG

valve hose, for tube type tires

2шт.

2

417194C1

PLUG

valve hose, for tubeless tires

2шт.

3

188008C1

RIM

WHEEL ASSY, 16 x WH 10L steering, for use w/12.4-16 and 11.00-16 tires, used with hub 391824R11, Serial Range: -40192

2шт.

Ref.3 Rim P/N 188008C1 has approx. 9 1/2-inch offset.

1шт.

3

672128R91

WHEEL

ASSY, 16 x WH 10L steering, grain combines when equipped with 11.00-16 or 12.4-16 steering tires, used with hub 1259528C91, for use with knuckle and hub package, 1323078C91, Start Serial: 40193

2шт.

3

188009C1

RIM

WHEEL ASSY, 16 x WH 8L steering, for use w/10.00-16 tires, Serial Range: -40192

2шт.

3

196211C1

WHEEL

ASSY, 16.1 x 16 steering, used with hub 391824R11, for use with 18.4-16.1 tires

2шт.

3

186642C2

WHEEL

ASSY, 16.1 x 16

2шт.

Steering, all corn combines with S/N 40193 and above, grain combines with S/N and above when equipped with 18.4-16.1 steering tires, used with hub 1259528C91, for use with knuckle and hub package 1323078C91, when rim and disc 196211C1 or 186642 are used, maintain a minimum thread width of 85.9 in.

1шт.

25556R1

WASHER,21/32" x 1 1/2" x .188", HDN

.656 x 1.500 x .188 PHC hdn

1шт.

3

177798C2

WHEEL (STEERING)

WHEEL ASSY, W 10 x 24 steering, used with hub, 391824R11, for use with 11.2-24 tires, Serial Range: -40192

2шт.

3

188759C1

WHEEL

ASSY, W 10 x 24 s

2шт.

Steering, all corn combines with S/N 40193 and above, grain combines with S/N 40193 and above when equipped with 11.2-24 steering tires, used with hub 1259528C91, for use with knuckle and hub package 1323078C91, when rim and disc 177798C2 or 188789C1 are used, maintain a minimum tread width of 73.4 in.

1шт.

3

174719C2

WHEEL (STEERING)

WHEEL ASSY, W 8-24 DC, for use with 9.2-24 tires, used with hub 391824R11, Serial Range: -40192

2шт.

3

188928C1

WHEEL

ASSY, W12-24 steering, for use with 14.9-24 tires & power guide wheels

2шт.

Ref. 3 P/N 188928C1 Mud Hog 8" Center Hole.

1шт.

4

178912C92

RETAINER

ASSY, drive wheel, 3 in. spacer, includes ref. no. 5

2шт.

4

188124C91

RETAINER

ASSY, drive wheel, 2 in. spacer, includes ref. no. 5

2шт.

5

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

wheel spacer

20шт.

426639

PLUG

3/4-NF type 8

1шт.

6

179482C1

VALVE STEM

VALVE ASSY, tubeless main wheel

2шт.

6

536705R91

VALVE

ASSY, steering rim

2шт.

7

407184C1

VALVE STEM

CORE, tire

1шт.
