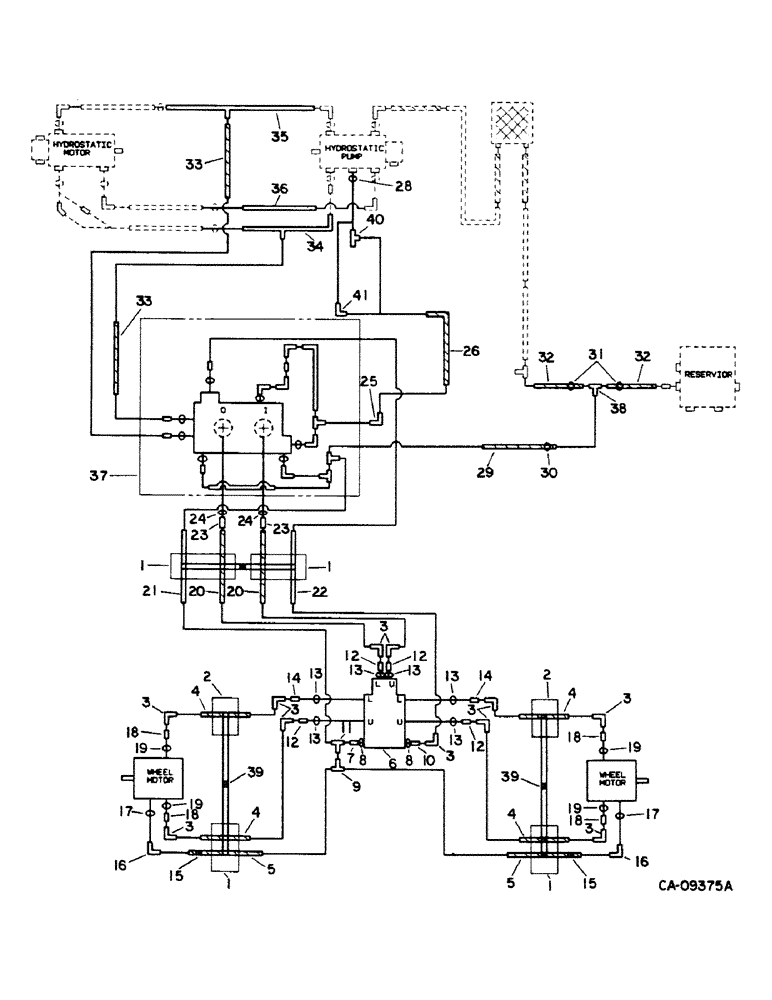

Запчасти Case IH 1440 (15-04) - WHEEL AND TRACTION, POWER GUIDE WHEEL HYDRAULIC DIAGRAM, S/N 50025 AND ABOVE Wheels & Traction

1

1324450C1

SLEEVE

Cordura hose, 3.29 ID x 36 in. long

4шт.

2

1324451C1

PROTECTIVE SLEEVE,40.4 mm ID x 914.50 mm

SLEEVE, 40.40 mm ID x 914.50 mm, Cordura Hose

2шт.

3

9410283

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

3/4 C-Z hyd fld 90D swivel

10шт.

4

1324452C1

HOSE

drive, 54.5 long

4шт.

5

1324453C1

HOSE

drive, 86.0 long

2шт.

6

1324466C91

VALVE

ASSY, Equa-Trac

1шт.

7

394955R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

CONNECTOR, C-Z hyd fld 3/8 to 1/4 sht

1шт.

8

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

2шт.

9

9410306

TEE,37 Degree, 9/16"-1 x 9/16"-18, Fem Sw Br

3/8 C-Z hyd fld tube swivel

1шт.

10

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

11

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

3/8 C-Z hyd fld tube swivel

1шт.

12

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

4шт.

13

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

6шт.

14

9410231

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, Pipe

CONNECTOR, 3/4 C-Z hyd fld long swivel

2шт.

15

28135R1

CLAMP

.938 dia znp coaded med cld

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

25949R1

JAM NUT,Jam, 5/8"-11, G8

5/8 PHC jam type 8

2шт.

16

935036R91

ELBOW

C-Z hyd fld adj 1/2 to 3/8 90D

2шт.

17

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1/2 OD tube class 6

2шт.

18

1324476C2

ELBOW

high pressure swivel

4шт.

19

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

4шт.

20

1315501C1

HOSE

ASSY, pressure

2шт.

21

1315502C1

HYDRAULIC HOSE,9.52 mm ID x 1600.00 mm

- Drain 9.52 mm ID x 1600.00 mm

1шт.

22

1315503C1

HOSE

ASSY, charge pressure

1шт.

23

9410205

HYD CONNECTOR,1 1/16"-12, 37 Degree x 1 1/16"-12, O-Ring

CONNECTOR, 3/4 C-Z hyd fld short swivel

2шт.

24

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

3/4 OD tube class 6

2шт.

25

9410278

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree Fem Sw

1/4 C-Z hyd fld 90D swivel

1шт.

26

138961C1

HOSE

ASSY, valve pressure, 36 in. long

1шт.

27

(Not used in this application)

1шт.

28

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

29

1315504C1

HOSE

valve drain

1шт.

30

244713R1

HOSE CLAMP,#4, 0.25/0.62 Type M Worm

CLAMP, drain hose or

1шт.

30

183699C1

CLAMP,#6, 0.44/0.78 Type M Worm

drain hose

1шт.

31

122316R91

HOSE CLAMP,#12, 0.69/1.25 Type F Worm

CLAMP, return hose

2шт.

32

HOSE, return, use 7 in. of 3/4 hyd hose from 25 ft roll marked 180720C2

1шт.

33

1304931C1

HOSE,19.05mm ID x 762mm L

ASSY, valve pressure, 30 in. long

2шт.

34

1301717C1

TUBE

ASSY, hydro drive forward, upper pressure

1шт.

35

1301716C1

TUBE

ASSY, hydro drive reverse

1шт.

36

(Not used in this application)

1шт.

37

1315489C91

VALVE

ASSY, drive selector, refer to drive selector valve

1шт.

38

196709C1

TEE

return hose

1шт.

39

1324472C1

BRACKET

hose support

2шт.

1324474C1

PLATE

bracket

2шт.

25236R1

BOLT,Hex, 5/16" - 18 x 3", Gr 8

5/16 x 3 PHC type 8

2шт.

40

(Not used in this application)

1шт.

41

9410974

ELBOW,90 Degree, 7/16"-20, 37 Degree x 7/16"-20, O-Ring

1/4 C-Z hyd fld adj 90D

1шт.
