(15-09) - WHEEL AND TRACTION, EQUA-TRAC VALVE MOUNTING, S/N 50025 AND ABOVE

Запчасти Case IH 1440 (15-09) - WHEEL AND TRACTION, EQUA-TRAC VALVE MOUNTING, S/N 50025 AND ABOVE Wheels & Traction

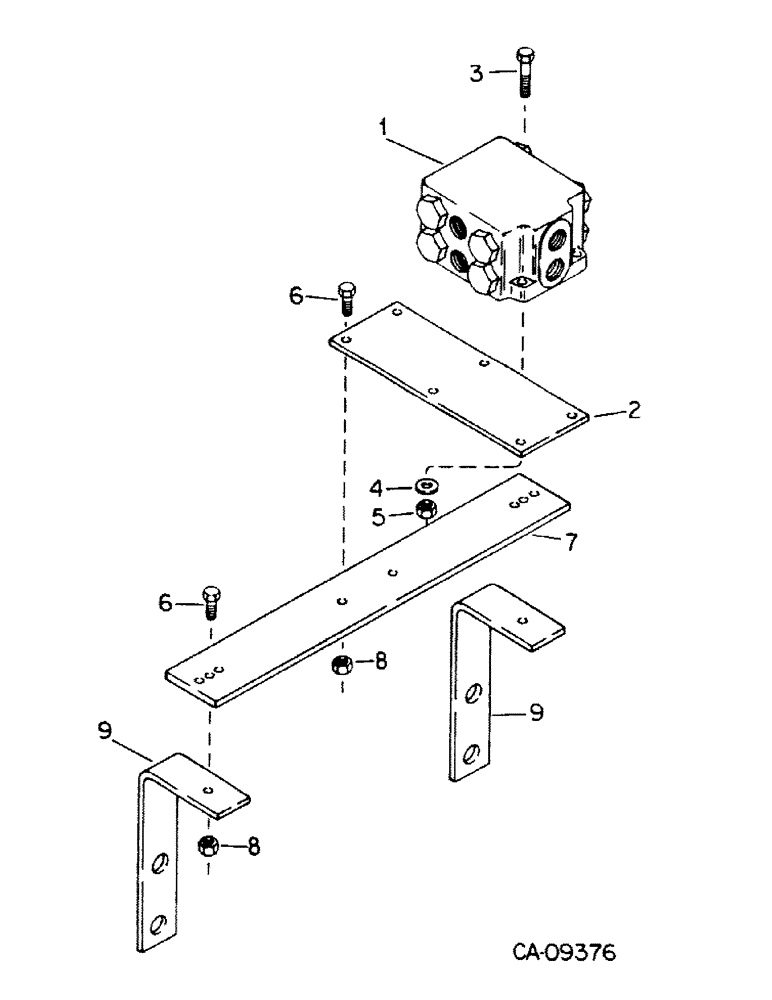

Схема запчастей Case IH 1440 - (15-09) - WHEEL AND TRACTION, EQUA-TRAC VALVE MOUNTING, S/N 50025 AND ABOVE Wheels & Traction
7
8
6
5
6
8
2
4
3
9
1
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1324466C91

VALVE

ASSY, Equa-Trac

1шт.

2

1324454C1

PLATE

valve mounting

1шт.

3

25654R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 8

5/16 x 1-1/2 PHC type 8

2шт.

4

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

2шт.

5

9412083

NUT,5/16"-18, GB

NUT, 5/16 CAD P/T lock type 5

2шт.

6

24840R1

BOLT,Hex, 3/8" - 16 x 1", Gr 8

4шт.

7

1324455C1

PLATE

valve mounting

1шт.

8

9411655

LOCK NUT,3/8"-16, GB

NUT, 3/8 CAD P/T lock type 5

4шт.

9

1324471C1

BRACKET

support

2шт.
