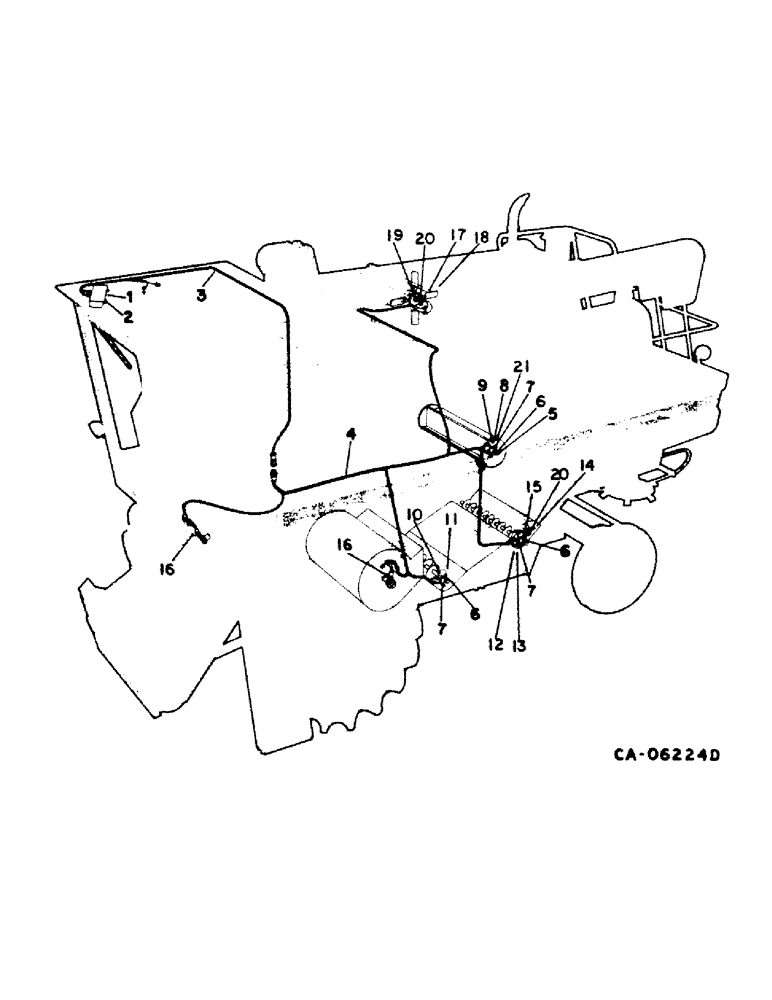

Запчасти Case IH 1440 (08-29) - ELECTRICAL, SHAFT SPEED MONTITOR CONTROL, SERIAL NO. 1501 AND ABOVE (06) - ELECTRICAL

1

245257C1

REMAN-INSTR CLUSTER

PANEL ASSY, shaft speed monitor, replaces R196981C2, renewed, 6 channel, Serial Range: 1501-10000

1шт.

1

1265667C1

INDICATOR

PANEL ASSY, shaft speed monitor, replaces 1301266C2, renewed, 7 channel, Start Serial: 10001

1шт.

2

178876C1

SUPPRESSOR

audible alarm

1шт.

3

196982C2

CABLE

HARNESS ASSY, cab section, w/air conditioner, Serial Range: 1501-10000

1шт.

3

183644C1

HARNESS

ASSY, cab section, w/out air conditioner, Serial Range: 1501-10000

1шт.

3

1301064C2

HARNESS

ASSY, cab section, Start Serial: 10001

1шт.

159920

SCREW,Cross Pan Hd, #10 - 24 x 1/2"

1шт.

159947

HYD CONNECTOR

no. 10 x 3/4 znp P/HDCR mach

1шт.

4

183504C1

HARNESS

ASSY, machine section, Serial Range: 1501-10000

1шт.

4

1301065C1

HARNESS

ASSY, machine section, Start Serial: 10001

1шт.

5

178802C1

COLLAR CLAMP

COLLAR, beater, Serial Range: 1501-10000

2шт.

5

BUSHING, beater, refer to group 21 under discharge beater, Start Serial: 10001

1шт.

6

178800C1

CLAMP

ASSY, sensor, 3 used on machines without straw chopper, 2 used on machines with straw chopper

1шт.

6

178799C1

CLAMP,44.45mm - 63.5mm

MAGNET ASSY, sensor, used on machines with straw chopper

1шт.

7

196984C1

SWITCH

ASSY, shaft speed monitor, 3 used on machines without straw chopper, 2 used on machines with straw chopper

1шт.

8

187629C1

SUPPORT

beater shaft sensor

1шт.

9

187630C1

SUPPORT

beater shaft

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

10

178794C1

BRACKET

clean grain sensor

1шт.

11

187642C2

COVER

ASSY, clean grain auger sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

12

187615C2

BRACKET

tailings sensor

1шт.

13

187616C1

SUPPORT

tailings sensor

1шт.

23986R1

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 1/2"

SCREW, SELF TAPPING, Hex Wash Hd, 1/4" x 1/2"

1шт.

14

187998C1

SUPPORT

shoe sensor

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 crg type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

134238R1

WASHER

.344 x 1.000 x .054

1шт.

15

187996C1

MAGNET

ASSY, shoe

1шт.

16

GAGE, reluctance pickup, refer to group 24 under cleaning fan and shields, refer to group 21 under rotor

1шт.

17

1301561C1

SUPPORT

fan switch mounting, replaces 187501C1

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

179454C1

RUBBER WASHER

rubber

1шт.

120393

BEARING WASHER,5/16", SAE

WASHER, .344 x .688 x .051

1шт.

18

1301560C1

SUPPORT

ANGLE, rotary fan switch adjustment

1шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 znp slt-truss-hd

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 type 1

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 flange lock

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

19

196987C1

MAGNET

ASSY, rotary screen

1шт.

125932

SELF-TAP SCREW,Sl Pan Hd, #8 x 1/2"

SCREW, SELF TAPPING, Slotted Pan Hd, #8 x 1/2"

1шт.

20

187997C1

SWITCH

ASSY, shaft speed monitor

2шт.

Ref. 20 P/N 187997C1, works with P/N 187996C1 Magnet.

1шт.

21

1301577C1

SWITCH

ASSY, monitor, for straw chopper

1шт.
