(11-01) - INSTRUMENTS, INSTRUMENTS AND GAUGES, S/N 20000 AND BELOW

Запчасти Case IH 1440 (11-01) - INSTRUMENTS, INSTRUMENTS AND GAUGES, S/N 20000 AND BELOW Instruments

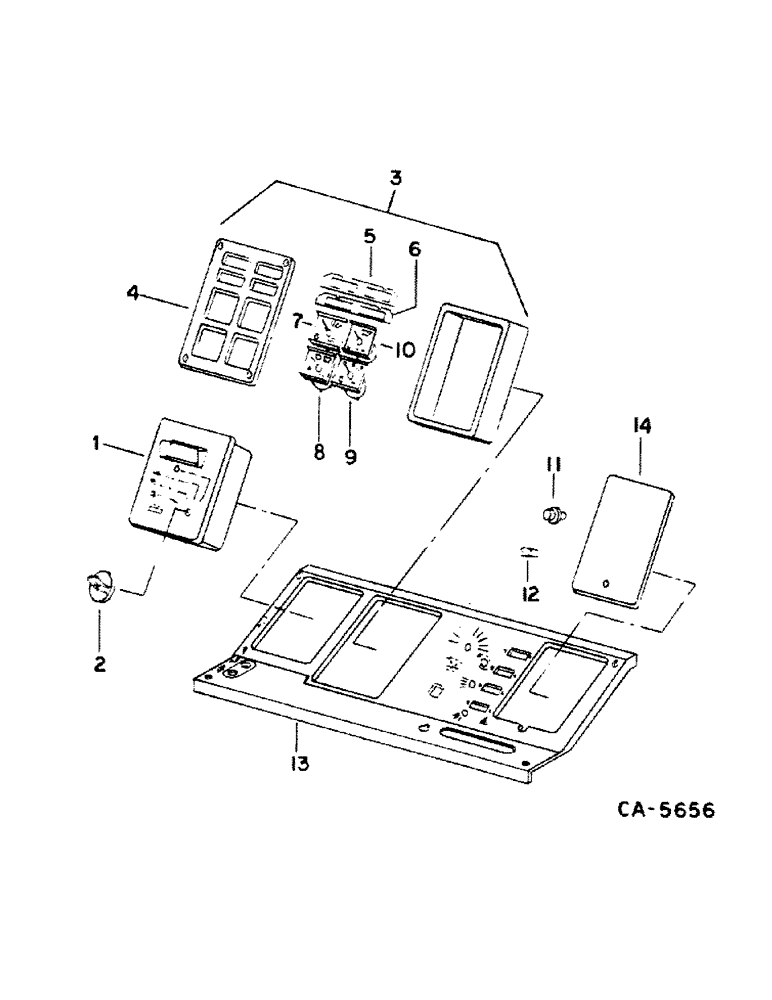

Схема запчастей Case IH 1440 - (11-01) - INSTRUMENTS, INSTRUMENTS AND GAUGES, S/N 20000 AND BELOW Instruments
3
12
2
9
6
1
13
7
11
8
10
4
14
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

187995C1

HARNESS

ASSY, tachometer, Serial Range: -1500

1шт.

1

245256C91

TACHOMETER

SYSTEM, multi-position, replaces R187512C91

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 PHC O/HDCR tap

1шт.

2

196980C1

KNOB

multi-position tachometer

1шт.

192208

SET SCREW,Hex Soc, #8-32 x 3/16"

SCREW, no. 8 x 3/16 c/pt znp hdl/s

1шт.

3

198067C91

ELECTRICAL GAUGE

GAUGE ASSY, cluster, includes ref. nos. 4 thru 12

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, #10-16 x 3/4 PHC O/HDCR tap

1шт.

4

121608C1

GASKET

BEZEL AND GASKET ASSY

1шт.

5

187596C1

LENS

warning lights

1шт.

6

187597C1

LENS

warning lights

1шт.

7

121606C1

ELECTRICAL GAUGE

GAUGE, oil pressure

1шт.

8

121607C1

METER

VOLTMETER

1шт.

9

121604C1

ELECTRICAL GAUGE

GAUGE, fuel

1шт.

10

121605C2

ELECTRICAL GAUGE

GAUGE, temperature

1шт.

11

121611C1

SOCKET

ASSY, lamp

8шт.

12

20627R1

BULB,C2F, #194, 14V

no. 194

8шт.

13

192978C1

COVER

instrument panel

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 PHC O/HDCR tap

1шт.

14

187573C1

COVER

fuse panel

1шт.

26232R1

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW, no. 10-16 x 3/4 PHC O/HDCR tap

1шт.
